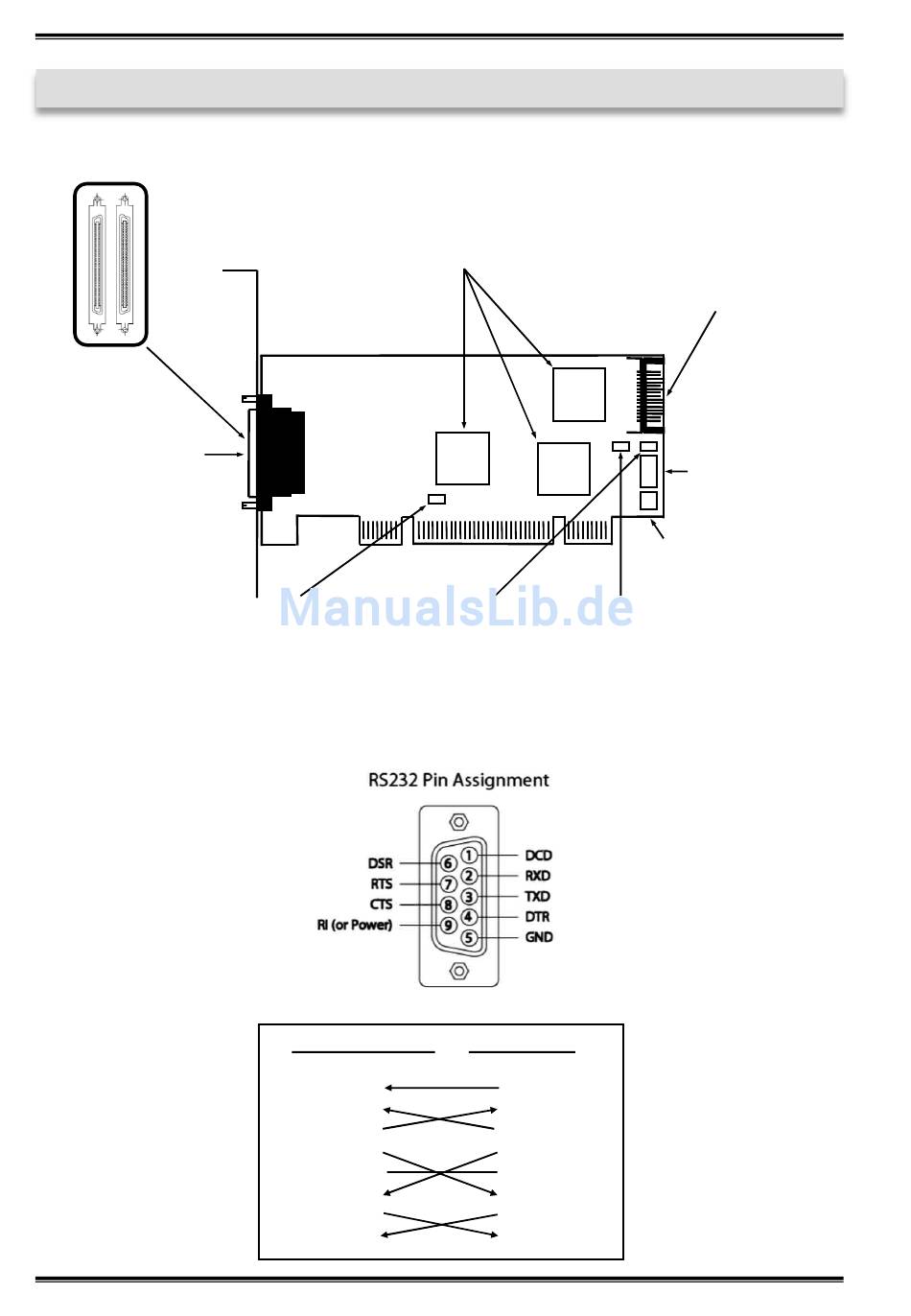

3. Layout and Connections

3.1 Layout

S1-S16:
2x 68 Pin connector
for octopus cabel
with 8 x 9 Pin serial
connector
JP4: Jumper to set the volta-
ge

3.2 Connections

S1-S16:
SystemBase Chipset
at the UART
DB9 (EX-41016-2)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
J3:
SATA 15 Pin power connector
from the PC power supply
JP2(S9-S16) & JP3(S1-S8):
Jumper for power to PIN59
DB9 (Device)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
10
EX-41016-2
JP1:
Select power over
power supply or
PCI Bus
JP5: Only for Test
(Please not change)
