Exsys EX-41051 Bedienungsanleitung

EX- EX EX - - 41051 41051 41051
JUMPER SETTING & CONNECTORS:
DB9M:
Serial 9 Pin D-SUB male connector :
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Comput-
er and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows ME/ 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive. Now enter
the Path "D:\IO\NETMOS\98XX" and then the directory of your operating system "WINME"
"WIN2000" "WINXP" "WINXP_64" "Vista32" "Vista64" "WIN7_8_32" or "WIN7_8_64" into
the box for the Path/Source and click at >next/continue<. Now Windows search for the drivers
in the specified directory. Follow the hardware assistant and finish the installation. If Windows
recognizes other new devices repeat the above described steps. Attention! Restart your PC in
any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
COM256.
Windows Server 20xx
After starting Windows it recognizes a new "PCI Controller" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive. Now enter
the Path "D:\IO\NETMOS\98XX" and then the directory of your operating system for Server
2000: "WIN2000" for Server 2003: "WINXP" or "WINXP_64" for Server 2008: "Vista32" or
"Vista64" and for Server 2008R2 and Server 2012: "WIN7_8_32" or "WIN7_8_64" into the
box for the Path/Source and click at >next/continue<. Now Windows search for the drivers in
the specified directory. Follow the hardware assistant and finish the installation. If Windows
recognizes other new devices repeat the above described steps. Attention! Restart your PC in
any case after installing the drivers.
5
All manuals and user guides at all-guides.com
English English English EX EX- EX - - 41051 41051 41051
DRIVER INSTALLATION :
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
Signal Pin Signal open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
DTR 7 RTS
correctly.
8 CTS
CHANGE PORT NUMBER
DSR 9 RI
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
COM256.
MS-DOS
Copy the DOS driver file from the CD (D:\IO\NETMOS\98XX\DOS\NmDosln.exe) to the root
directory on your hard disk (C:\). Modify the "AUTOEXEC.BAT" with the following line:
C:\NmDosln -a -r
After you reboot DOS , you can see the EX-41052 with COM3 and COM4. The IRQ its set from
System-BIOS and can't be changed.
LINUX
There are no drivers available for Linux, but the card is supported by the most versions of
Linux. Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for standard I/O
ports from your Linux version! In some newer versions the card will even be installed automati-
cally after starting Linux.
English English English
S1
Die EX-41051 ist eine 32-Bit PCI Seriell RS-232 Karte mit einem seriellen FIFO
16C550 Port, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten
(z.B. Modem, Plotter usw.). Sie unterstützt den 32 und 64-Bit PCI bzw. PCI-X Bus mit 5
Volt und 3,3 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzu-
stellen, da die Einstellungen der Karte vom System (BIOS) und beim Installieren des
Betriebssystems automatisch vorgenommen werden. Es besteht bei Bedarf die Mög-
lichkeit, +5V- oder +12V auf einen von vier Pins zu legen (POS System).
Kompatibilität:
Betriebs Systeme:
Anschlüsse:
Lieferumfang:
Zertifikate:
Mit der EX-41051 haben Sie die Möglichkeit +5V- oder +12V auf einen der folgenden vier Pins,
des Steckers S1 zu konfigurieren :
Achtung! Nur konfigurieren wenn für das Peripheriegerät auch +5Volt oder +12Volt gebraucht
wird. Für normale Anwendung Jumper nicht verändern sonst werden ihre Geräte beschädigt!
JP3:
(S1)
JP2:
J2:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.3 / 03.05.12

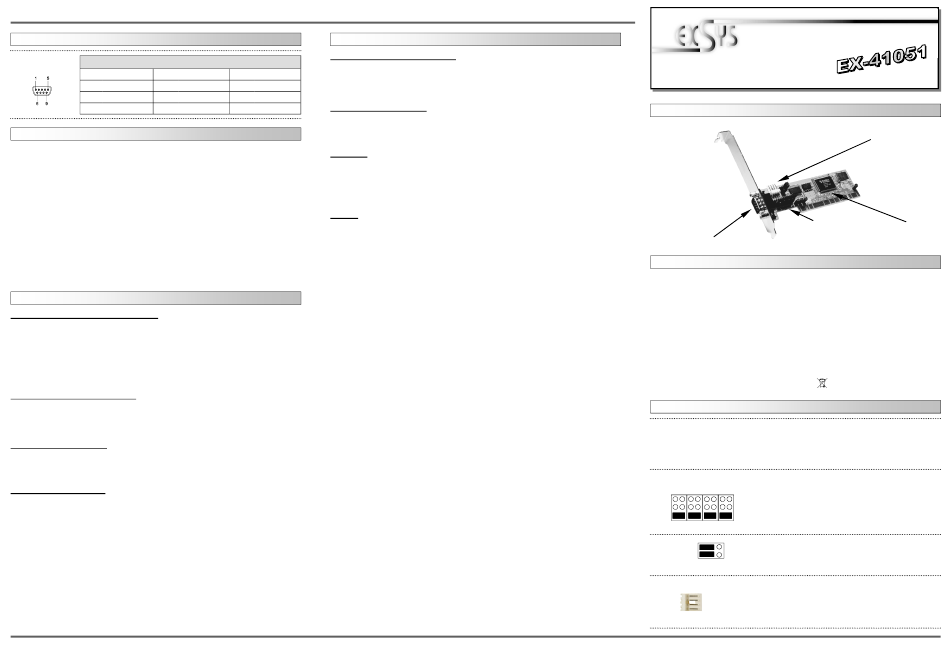

AUFBAU :
+5V oder +12V
9 Pin Buchse einstellbar auf den
Seriell Anschluss 9 Pin Stecker
BESCHREIBUNG & TECHNISCHE DATEN :
PCI oder PCI-X, 33Mhz
DOS/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server20xx/ (Linux vom OS)
1 x 9 Pin Seriell D-SUB Stecker
EX-41051, Treiber CD, Deutsche Anleitung
CE CE CE CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE:
Achtung!! Es darf pro Pin immer nur eine Spannung einge-
stellt werden!
+5V
+5V: +5V auf den jeweiligen Pin des Anschlusses
+12V
+12V: +12V auf den jeweiligen Pin des Anschlusses
Dis
DIS: Kein Strom auf den Anschlüssen (Standard)
Pin 1 Pin 8 Pin 9 Pin 4
+5V
JP2 gesetzt auf PCI = +5 oder +12V kommt vom PCI BUS
+12V
JP2 gesetzt auf AUX = +5 oder +12V kommt vom PC Netzteil
PCI AUX
Wenn JP2 auf AUX gestellt ist muss J2 mit dem Stroman-
1 +5V
schluss vom PC Netzteil verbunden werden!
2 GND
Bitte auf die richtige Polarität achten!
3 GND
Achtung! Stecker nie bei eingeschaltetem PC ein oder
4 +12V
ausstecken!
1
Anschluss vom
Netzteil für +5V oder
+12V Spannung
Seriell Chip 16C550
mit 16-Byte Buffer
und PCI-Bridge
