EX-45362IS

4. Switch and Jumper Settings

4.1 Switch Settings

There are two 8-pin DIP-switches on the board of the EX-45362IS. For each port there
is a separate DIP-switch. The 8-pin DIP-switches are for the modes (RS-232, RS-422,
RS-485 2-wire or RS-485 4-wire) and for the signal termination for RX+, RX-, TX+ and
TX- (see picture on page 12 under layout). The settings can be set individually for each
serial port. The DIP-switch at the top are responsible for the port 1 (S1) and DIP-switch
below are responsible for the port 2 (S2). The following tables on page 13, 14 and 15
you can see the setting of the mode switch and terminator switch. Additionally the set-
ting of the mode switch are printed on the back of the board.

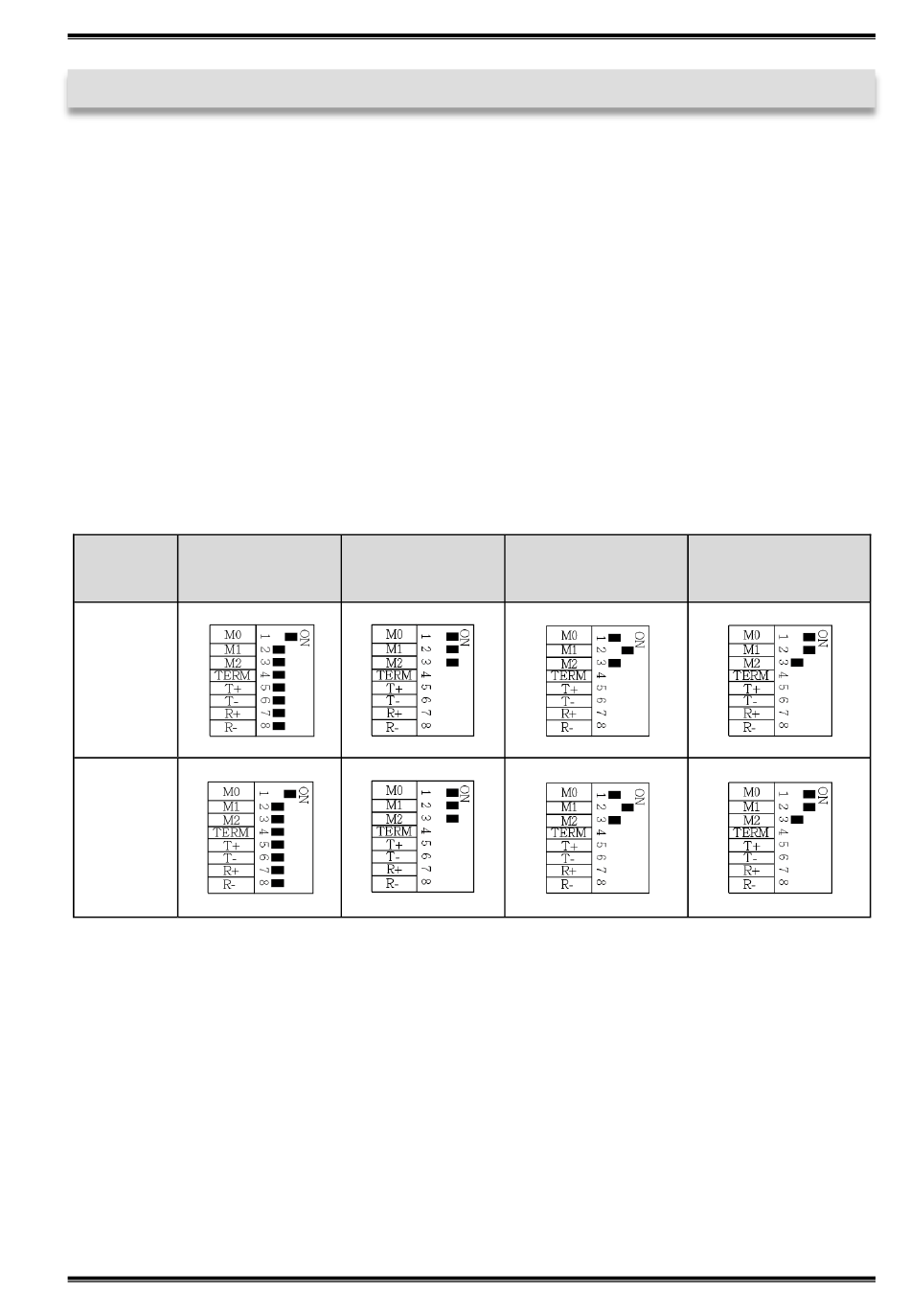

Mode & Terminator Switch (S1_MODE-S2_MODE)
Modes RS-232
Port 1
Port 2
RS-422 RS-485 2-wire
13
English
RS-485 4-wire
