Exsys EX-41011 Bedienungsanleitung

EX- EX EX - - 41011 / 41211 41011 / 41211 41011 / 41211
HARDWARE INSTALLATION :
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because the designs of computers are different, only general installation
instructions are given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows 9x/2000/XP/Vista/7:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system into the box for the Path/Source and click at >next/continue<. Now Windows
searches for the drivers in the specified directory. Follow the hardware assistant and
finish the installation. If Windows recognizes other new devices repeat the above de-
scribed steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (LPT2). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example LPT3 to LPT 1, open the >Device Man-
ager< click at >LPT3<, >Settings< and then >Advance<. There you can change between
LPT1 to 3.
Windows Server 200x:
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-Rom
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system for Server 2000: "2000" for Server 2003: "XP32" or "XP64" and for
Server2008 "Vista32" or "Vista64" into the box for the Path/Source and click at
>next/continue<. Now Windows searches for the drivers in the specified directory.
Follow the hardware assistant and finish the installation. If Windows recognizes other
new devices repeat the above described steps. Attention! Restart Windows in any
case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (LPT2). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example LPT3 to LPT 1, open the >Device Man-
ager< click at >LPT3<, >Settings< and then >Advance<. There you can change between
LPT1 to 3.
5
English English English EX- EX EX - - 41011 / 41211 41011 / 41211 41011 / 41211
DRIVER INSTALLATION :
Windows NT 4.0:
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at >Start< >Programs< >Administrative Tools[Common]< >Windows NT-
Diagnostics< then click at >Resource< >IRQ<. Here you should find the entry „09
oxser 0 PCI". Then click at >I/O-Port< here you should see the entries „D400-D407
oxser 0 PCI" „D800-D802
for the ports. The I/O addresses can change depends which system and card is in-
stalled. If you see these or similar entry's the card is installed correctly.
LINUX:
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard IO ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
English English English
oxser 0 PCI" and „DC00-DC1F oxser 0 PCI"
6
Bedienungsanleitung Bedienungsanleitung
Vers. 2.4 / 06.08.10

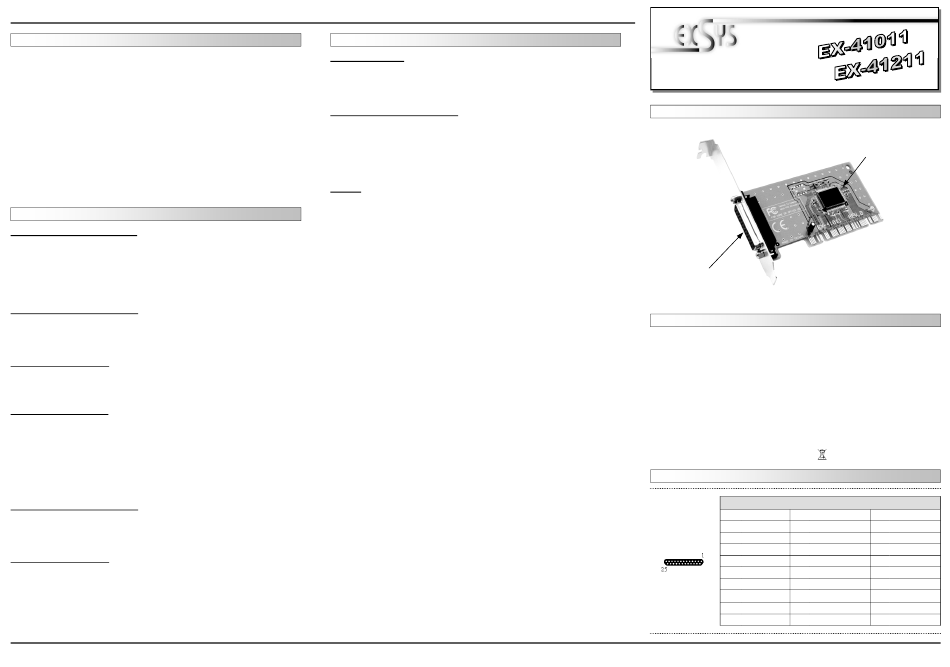

AUFBAU :
P1: 25 Pin Buchse
Parallel Ausgang
Bi-Direktional
BESCHREIBUNG & TECHNISCHE DATEN :
Die EX-41011 / 41211 ist eine 32-Bit PCI Parallel Karte die mit einem parallelen EPP/
ECP Bi-Direktionalen Ausgang für den Anschluss von Peripheriegeräten mit Enhanced
Centronics Interface (z.B. Drucker, Scanner, Laufwerke usw.) ausgerüstet ist. Sie
unterstützt den PCI- sowie den PCI-X Bus mit 5 Volt oder 3,3 Volt. Für die Einstellun-
gen der I/O Adressen und Interrupts sind keine Jumper notwendig. Die Einstellungen
werden vom System-BIOS des Mainboards und beim Installieren des Betriebssystems
automatisch vorgenommen. Die Karte ist Windows 2000/XP/Vista/Server 2000 und
Server 2003 WHQL zertifiziert.
Kompatibilität: PCI 32-Bit & 64Bit / 3,3V & 5 Volt, 33Mhz
Betriebs Systeme: WIN 9x/NT 4.0/2000/XP/Vista/7/Server 200x/(Linux vom OS)
Anschlüsse: 1 x 25 Pin Sub-D Buchse
Lieferumfang: EX-41011 oder 41211, Treiber CD, Deutsche Anleitung
CE CE CE CE
Zertifikate: / FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE:
DB 25F:
Parallel 25 Pin Buchse (P1):
Pin Signal Pin
1 STROBE 10 ACKNOWLEDGE
2 DATA 0 11
3 DATA 1 12 PAPER EMPTY
4 DATA 2 13 SELECT
5 DATA 3 14 AUTO FEED
6 DATA 4 15 ERROR
7 DATA 5 16
8 DATA 6 17 SELECT INPUT
9 DATA 7 18 GROUND
1
Parallel Chip EPP/ECP
mit 32-Byte Buffer und
PCI-Bridge
Signal Pin Signal
19 GROUND
BUSY 20 GROUND
21 GROUND
22 GROUND
23 GROUND
24 GROUND
INIT 25 GROUND
