EX-44016-2

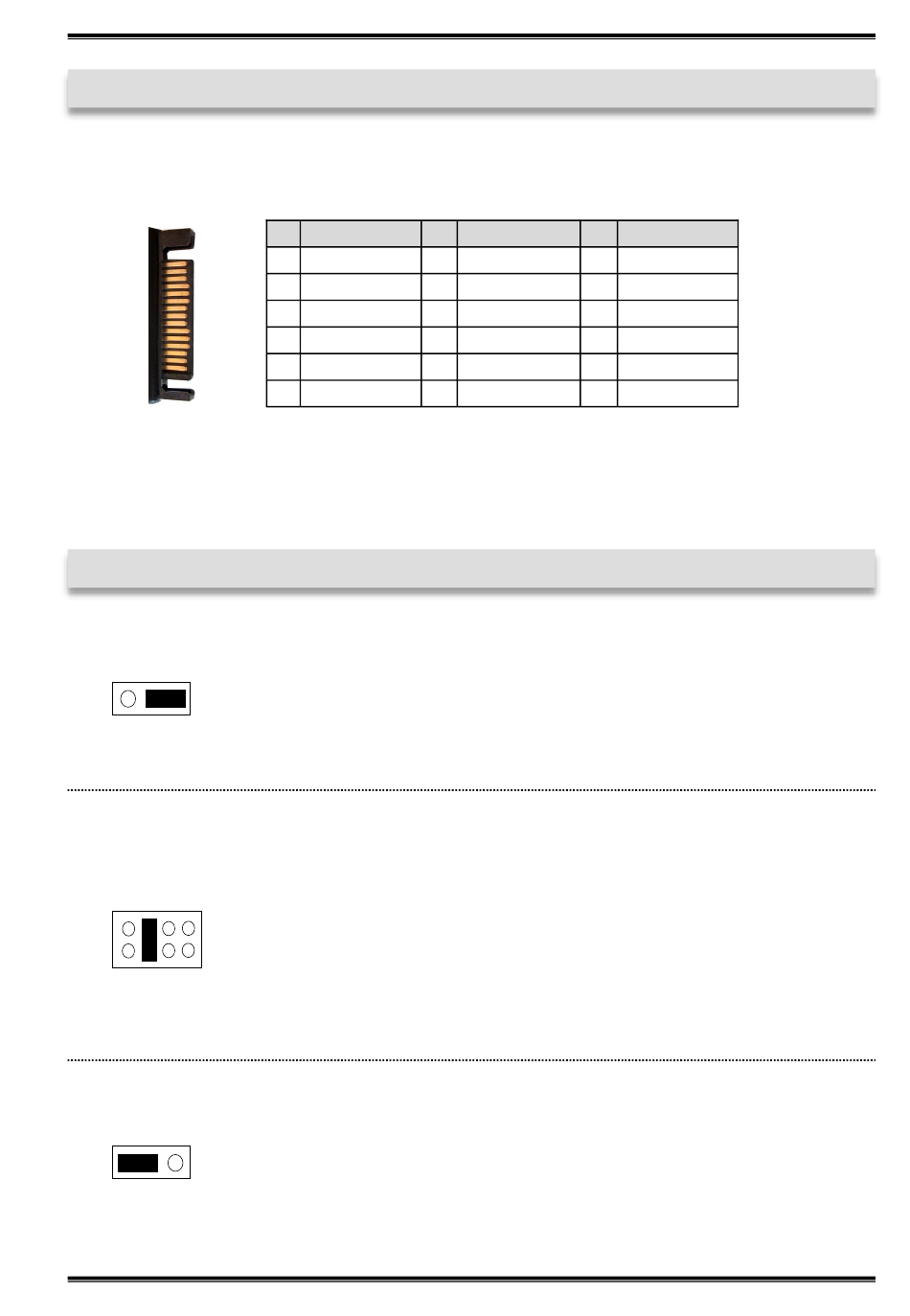

3. Layout and Connections
3.2 Connections
J2:
For aux power (JP1), J2 must be connected to pc power supply! If not, the card wont work.
Attention! Never connect the power connector if the PC is on!
4. Jumper Settings
JP4:
+5V +3.3V
JP1:
I5 I12 X12 X5
JP6:
DIS | ENA
Pin
Belegung
Pin
1
3.3 Volt (Orange)
7
2
3.3 Volt (Orange)
8
3
3.3 Volt (pre-charge)
9
4
Ground (Schwarz)
10
5
Ground (Schwarz)
11
6
Ground (Schwarz)
12
+3.3V
= The voltage level is set to 3.3V. (Factory Setting)
+5V
= The voltage level is set to 5V.
If your device need a higher voltage level, then set the jumper to the
position +5V.
Only If set jumper S1_PWR-S16_PWR to ENA, then you can set the vol-
tage source with the jumper JP1. There are two different voltage sources
(Mainboard & Power Supply).
(If the jumper JP1 set to X5 / X12 then the power connector J2 must be
connected with the PC power supply)
I5
= 5Volt from Mainboard (Werkseinstellung)
I12
= 12Volt from Mainboard
X12
= 12Volt from Power Supply
X5
= 5Volt from Power Supply
DIS
= The function PME is disable. (Factory Setting)
ENA
= The function PME is enable. Now the card can be activate
the computer through the serial ports.
But this should not be adjusted for standard applications.
Belegung
Pin
5 Volt (pre-charge)
13
5 Volt (Rot)
14
5 Volt (Rot)
15
Ground (Schwarz)
Reserviert
Ground (Schwarz)
11
English
Belegung
12 Volt (pre-charge)
12 Volt (Gelb)
12 Volt (Gelb)
