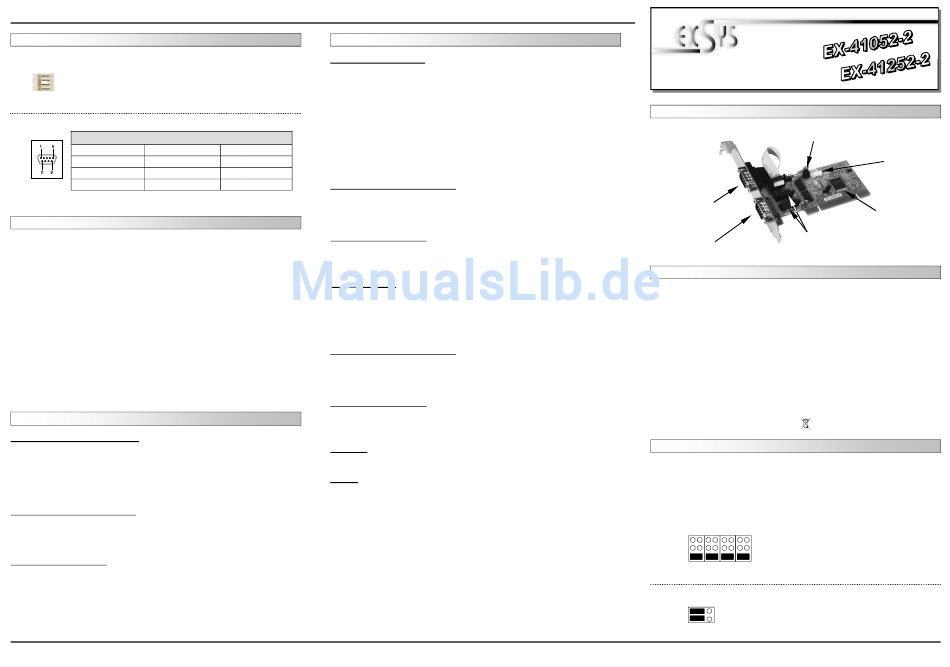

JUMPER SETTING & CONNECTORS
J5:
If JP9 is set to AUX the J5 must be connected with pc power
1 +5V
supply!
2 GND
Please make sure you connect the plug in the right
3 GND
direction! Never connect or release the plug while the
4 +12V
PC power is on!
DB9M:
Serial 9 Pin D-SUB male Connector
Pin Signal Pin Signal
1 CDC 4 DTR
2 RXD 5 GROUND
3 TXD 6 DSR
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation instruc-
tions. Because there are large differences between PC's, we can give you only a general installa-
tion guide for the EX-41052-2 / EX-41252-2. Please refer to your computer's reference manual
whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer
and gently slide the cover off.
3. Locate an available PCI slot and remove its covers from the rear panel of your computer.
Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the PCI slot, and then gently but firmly, insert the card. Make sure the
card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller". Put the driver CD into your
CD-ROM drive and go to the appropriate path of your installed operating system (for example:
"D:\IO\MOSCHIP\9865\Win7_8_Vista_XP32Bit") and run the program „PciSetup". Follow the
installation instructions and complete the installation. Windows will now install automatically
you right driver for your particular operating system. After the installation the operating system
detects the card and automatically install them. Attention! Restart your PC in any case after
installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
COM256.
5
English English English EX- EX EX - - 41052 41052- 41052 - - 2 / EX 2 / EX 2 / EX-
DRIVER INSTALLATION
Windows Server 20xx
After starting Windows it recognizes a new "PCI Controller". Put the driver CD into your
CD-Rom drive and go to the appropriate path of your installed operating system (for example:
"D:\IO\MOSCHIP\9865\Win7_8_Vista_XP32Bit") and run the program „PciSetup". Follow the
installation instructions and complete the installation. Windows will now install automatically
you right driver for your particular operating system. After the installation the operating system
detects the card and automatically install them. Attention! Restart your PC in any case after
installing the drivers.
Use the following driver for the following Windows Server Version.
Windows Server 2003
Windows Server 2008
Pin Signal
Windows Server 2008R2 =
7 RTS
Windows Server 2012
8 CTS
9 RI
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
COM256.
Windows 98SE
After starting Windows it recognizes a new "PCI Controller" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-ROM drive. Now enter
the Path "D:\IO\MOSCHIP\9865\Win98" into the box for the Path/Source and click at >next/
continue<. Now Windows search for the drivers in the specified directory. Follow the hardware
assistant and finish the installation. If Windows recognizes other new devices repeat the above
described steps. Attention! Restart the PC in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one or more
new "PCI Ports" as sample (Com3). If you see this or similar entries the card is installed
correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can change between COM3 till
COM256.
MS-DOS
Please read the manual on the driver CD.
LINUX
Copy and unzip the file MCS9865_Linux.tar to your hard disk. The file is located on the driver
CD in the path "D:\IO\MOSCHIP\MCS9865\Linux". Before installing the driver please read the
PDF File MCS9865_Linux_UM_Ver.1.1.
- - 41252- 41252 41252 - - 2 2 2 English English English
= XP Driver
= VISTA Driver
Windows 7 Driver
= Windows 8 Driver
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.1 / 26.02.13

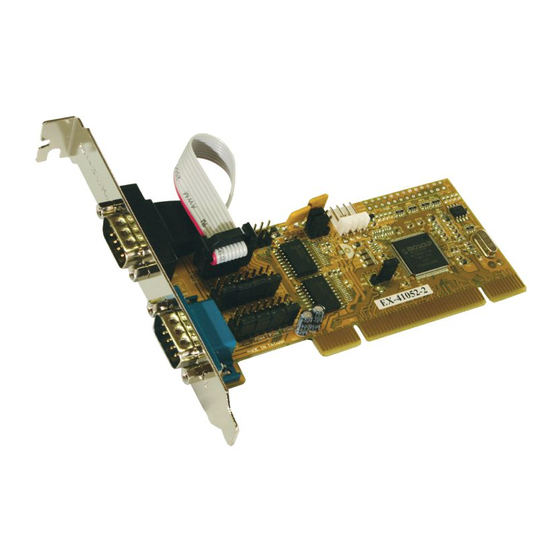

AUFBAU
JP9: Jumper für die Stromquelle
(Netzteil oder PCI Bus)
S2: 9 Pin Stecker
Seriell Anschluss
S1: 9 Pin Stecker JP2 & JP3:
Seriell Anschluss +5V oder +12V einstellbar auf
beide 9 Pin Stecker
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-41052-2 / EX-41252-2 ist eine 32-Bit PCI Seriell RS-232 Karte mit zwei seriellen FIFO
16C550 Ports, für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B.
Modem, Plotter usw.). Die EX-41052-2 / EX-41252-2 nutzt den 16C550 UART Chipsatz, der
die neueste High-Speed-Interface-Technologie beinhaltet. Die Karte gewährleistet so eine
sichere Datenübertragung und exzellente Performance von bis zu 115KBaud/s für jedes
angeschlossene serielle Gerät! Sie unterstützt den 32- und 64-Bit PCI bzw. PCI-X Bus mit 5
Volt und 3,3 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen, da
die Einstellungen der Karte vom System (BIOS) und beim installieren des Betriebssystems
automatisch vorgenommen werden. Es besteht bei Bedarf die Möglichkeit, +5V oder +12V auf
einen von vier möglichen Pins der beiden 9 Pin Stecker zu legen (POS System). Die EX-41252
-2 ist eine Low Profile Karte für schmale PC Gehäuse bis 8cm Bauhöhe.
Kompatibilität: PCI oder PCI-X, 33Mhz
Betriebssysteme: DOS/ 98/ 2000/ XP/ Vista/ 7/ 8/ Server 20xx/ Linux
Anschlüsse: 2x 9 Pin D-SUB Stecker
Lieferumfang: EX-41052-2 oder EX-41252-2, Treiber CD, Anleitung
Zertifikate: CE CE CE CE / FCC / RoHS / WEEE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE
Mit der EX-41052-2 / EX-41252-2 haben Sie die Möglichkeit +5V oder +12V auf einen der
folgenden vier Pins der Stecker S1 und S2 zu konfigurieren:
Achtung! Nur konfigurieren wenn für das Peripheriegerät wirklich +5Volt oder +12Volt benötigt
wird. Für normale Anwendung Jumper nicht verändern, sonst werden Ihre Geräte beschädigt!
JP2 & JP3:
(S1 & S2)
Achtung! Es darf pro Pin immer nur eine Spannung
eingestellt werden!
+5V
+12V
+5V: +5V auf den jeweiligen Pin des Anschlusses
Dis
+12V: +12V auf den jeweiligen Pin des Anschlusses
Pin 1 Pin 4 Pin 8 Pin 9
DIS: Keine Spannung auf dem Anschluss (Standard)
JP9:
JP9 gesetzt auf PCI = +5 oder +12V kommt vom PCI BUS
+5V
+12V
JP9 gesetzt auf AUX = +5 oder +12V kommt vom PC-Netzteil
PCI AUX
1
J5: Stromanschluss
für PC-Netzteil
Seriell Chip 16C550
mit 16-Byte Buffer
und PCI-Bridge
