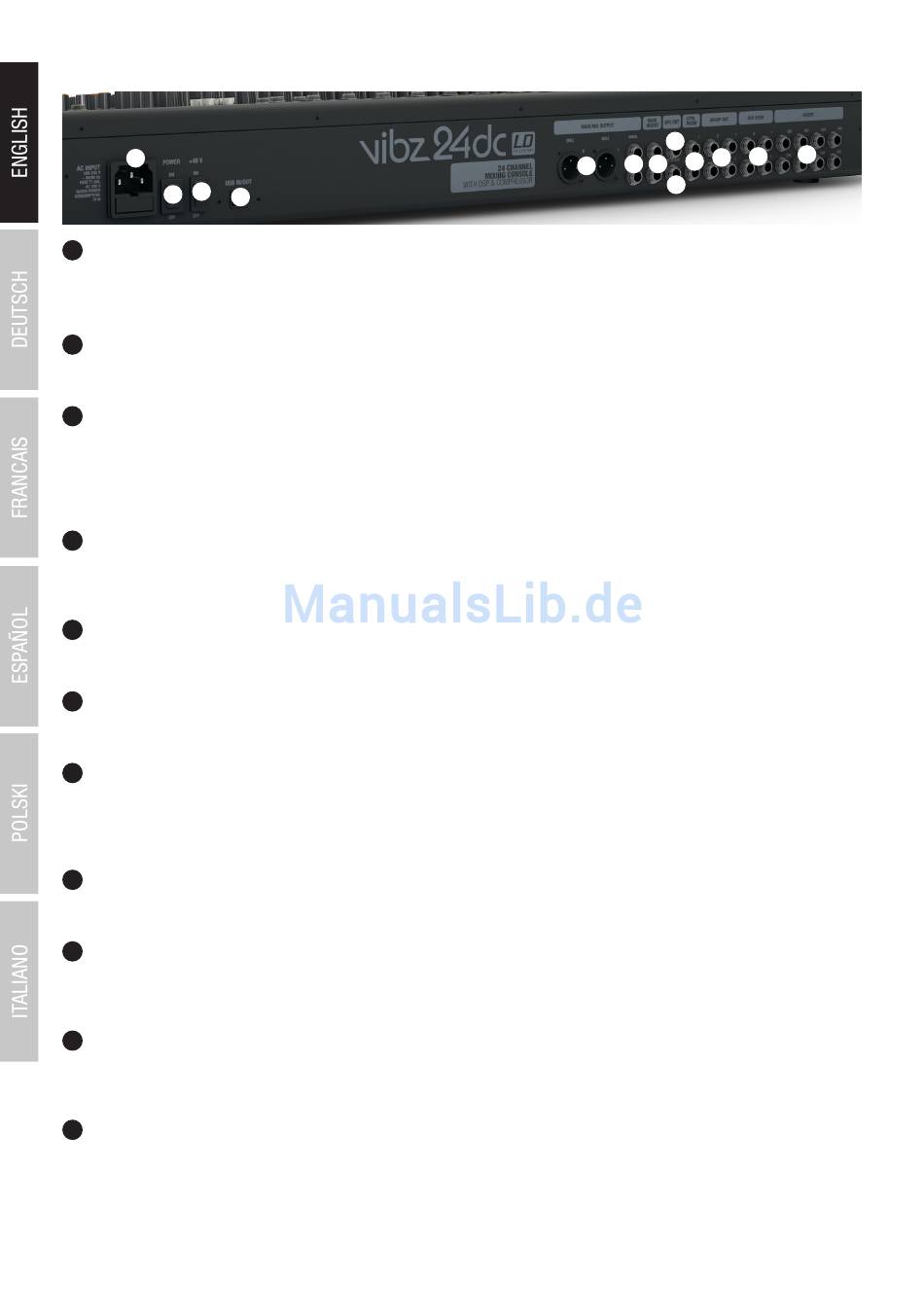

CONNECTIONS, CONTROLS AND INDICATORS

1
3
2
1
POWER CONNECTOR WITH FUSE HOLDER
IEC power socket with built-in fuse holder. An appropriate power cord is included in the delivery.
IMPORTANT INFORMATION: Always replace the fuse only with a fuse of the same type with the same rating (printed on the device). If the fuse blows
repeatedly, please contact an authorised service centre.
2
POWER ON/OFF
On / Off switch for the power supply of the device (ON = enabled).
3
+48 V ON/OFF
+48 V phantom power supply for operating high-quality condenser microphones without own power supply. Press down to select the ON position to
turn on the phantom power for the XLR microphone inputs (LED light N 85 is on), and return to the original OFF position to turn it off (red LED light
is off). Turn on the phantom power only after connecting a microphone, or off after disconnecting, and set the volume controller of the microphone
channels to minimum before this step.
4
USB IN/OUT
The USB-B socket for connecting to a computer with Windows or Mac operating system (Windows XP - Windows 10, MAC OS X, USB 2.0 recording
and playback).
5
MAIN MIX OUTPUT (BAL)
Balanced stereo line output with 3-pin XLR jack sockets to connect an active PA system. Output of the master signal of the mixer.
6
MAIN MIX OUTPUT (UNBAL)
Unbalanced stereo line output with 6.3 mm jack sockets to connect an active PA system. Output of the master signal of the mixer.
7

MAIN INSERT

Two 3-pin 6.3 mm jack sockets for inserting an external signal processing device (Compressor, Gate, EQ etc.) into the stereo sum channel. A special
insert cable is required for the connection (Y-cable, 1 x stereo jack to 2 x mono jack or XLR). The assignment is as follows: TIP = Send, RING =
Return, SLEEVE = Masse.
8
DFX OUT
3-pin 6.3 mm jack socket to output the effects signal
9
FOOT SW (DFX MUTE)
6.3 mm jack socket for connecting a foot switch (pedal) to remotely activate and disable the mute function of the internal effects device (foot switch
optional).
10
CTRL ROOM
Unbalanced line outputs with 6.3 mm jack sockets to connect active listening monitors etc... Output of the sum signal, or of the group signals 1-2 or
3-4 of the mixer or of the PFL signal (adjustable).
11
GROUP OUT 1-4
Unbalanced line outputs with 6.3 mm jack sockets to connect active PA systems etc. Output of the group signals 1 to 4 of the mixer.
6
4
8
12
11
10
6 7
5
9
13
