LD Systems LDVIBZ24DC Bedienungsanleitung Seite 8

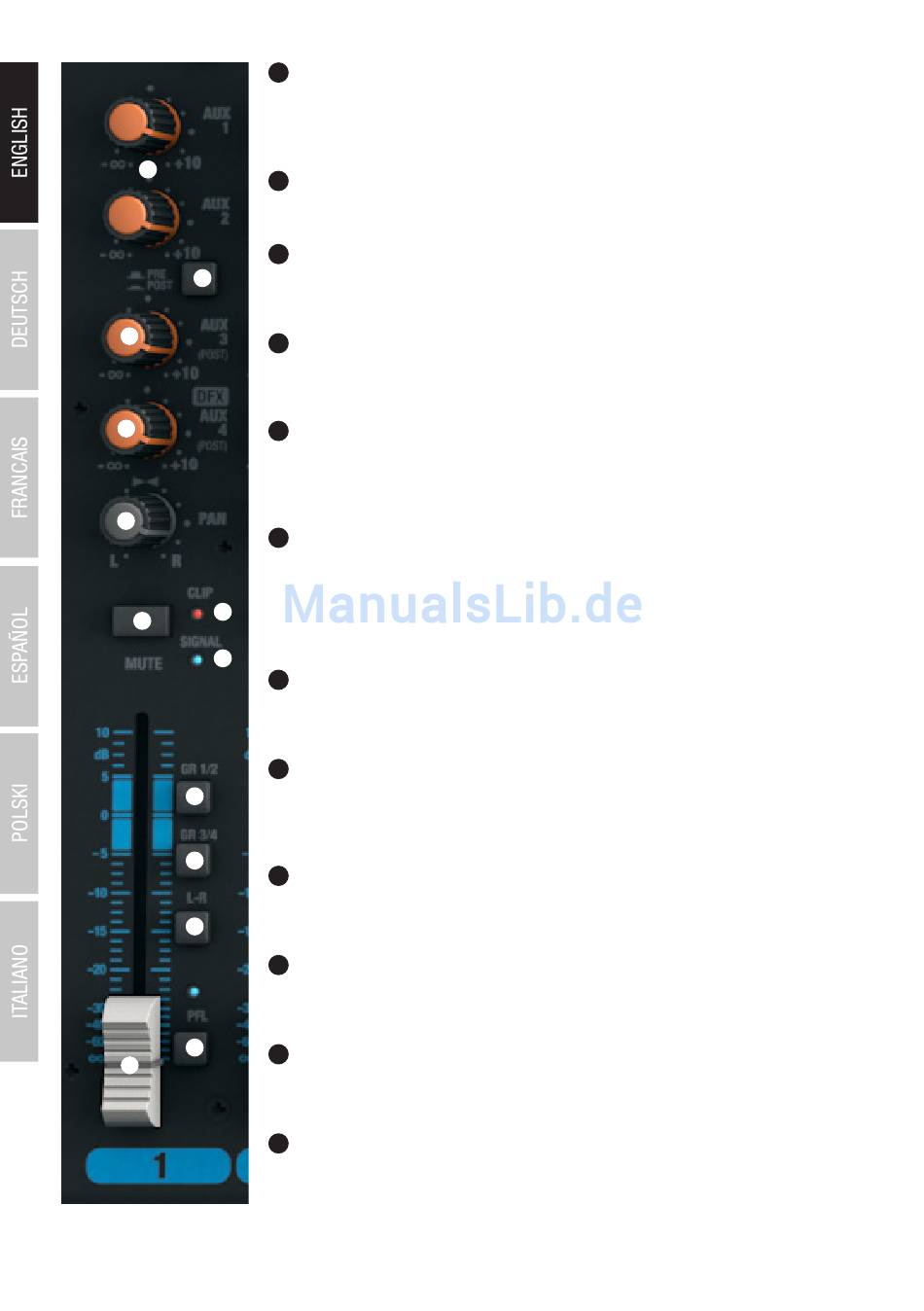

26
27
28
29
30
34
31
33
35
36
37
38
32
8
22
EQUALIZER MID CHANNEL 1-16
Equalizer mid band for channels 1 to 16 (adjustable frequency, +/-15 dB). When turned to the left, levels
are lowered, when turned to the right, they are raised. In the centre position (resting point), the equalizer is
inactive.
23
EQUALIZER MID FREQ CHANNEL 1-16
Mid band frequency. Using this controller, set the frequency you want to raise, or lower from 200 Hz to 8 kHz.
EQUALIZER LOW CHANNEL 1-16
24
Equalizer bass band for channels 1 to 16 (80 kHz, +/-15 dB). When turned to the left, levels are lowered,
when turned to the right, they are raised. In the centre position (resting point), the equalizer is inactive.
25 EQ ON / OFF CHANNEL 1-16
Switch for switching the equalizer (HI, MID, and LOW) on and off. In the down position, the equalizer is
enabled, and in up position, it is disabled.
26
AUX 1 + AUX 2 CHANNEL 1-16
Volume controller for adding the signal from channel 1 to 12 to external effects devices (effect send, switch
N° 27 POST), or for controlling an active stage monitor (Monitor Send, switch N° 27 PRE) Use the line outputs
AUX SEND and 2 control (N 12) for control.
27
AUX 1 + AUX 2 PRE/POST CHANNEL 1-16
When using AUX 1 or AUX 2 to control an external effects device, bring the switch to the down position POST.
The control signal is now picked up after the channel volume controller (N 32), it is therefore dependent on
the latter. To control a stage monitor, bring the switch to the up position PRE. The signal is picked up before
the channel volume controller (N 32) and the volume of the stage monitor can be adjusted independently of
the channel volume.
28
AUX 3 POST CHANNEL 1-16
Volume controller for adding the signal from channel 1 to 16 to external effects devices (Effect Send, Post
Fader). Use the line output AUX SEND 3 (N 12) for activation.
29
LEVEL DFX / AUX 4 POST CHANNEL 1-16
Volume controller for adding the signal from channel 1 to 16 to the internal digital effects device (Effect Send,
Post Fader). Use the line output AUX SEND 4 (N 12) for activating an external effect. When using the AUX
SEND 4 jack socket, the internal effects device is automatically bypassed, and is therefore not usable.
30
PAN CHANNEL 1-16
Using the Panorama controller, position the signal of the corresponding channel in the stereo field of the total
signal (Centre position = perception of the signal in the middle of the stereo field).
31
MUTE CHANNEL 1-16
To mute a channel, press down on the MUTE switch of the corresponding channel. The MUTE LED of the
selected channel then lights up. When disabling the mute function, the MUTE LED goes out.
32
FADER CHANNEL 1-16
Volume controller for channels 1 to 16. Push the Fader button upwards to increase the volume of the
corresponding channel and downwards to decrease it.
33
SIGNAL-LED CHANNEL 1-16
The signal LED lights up as soon as an audio signal is present at the corresponding channel (depending on
the input level and setting of the gain or input sensitivity - GAIN).
