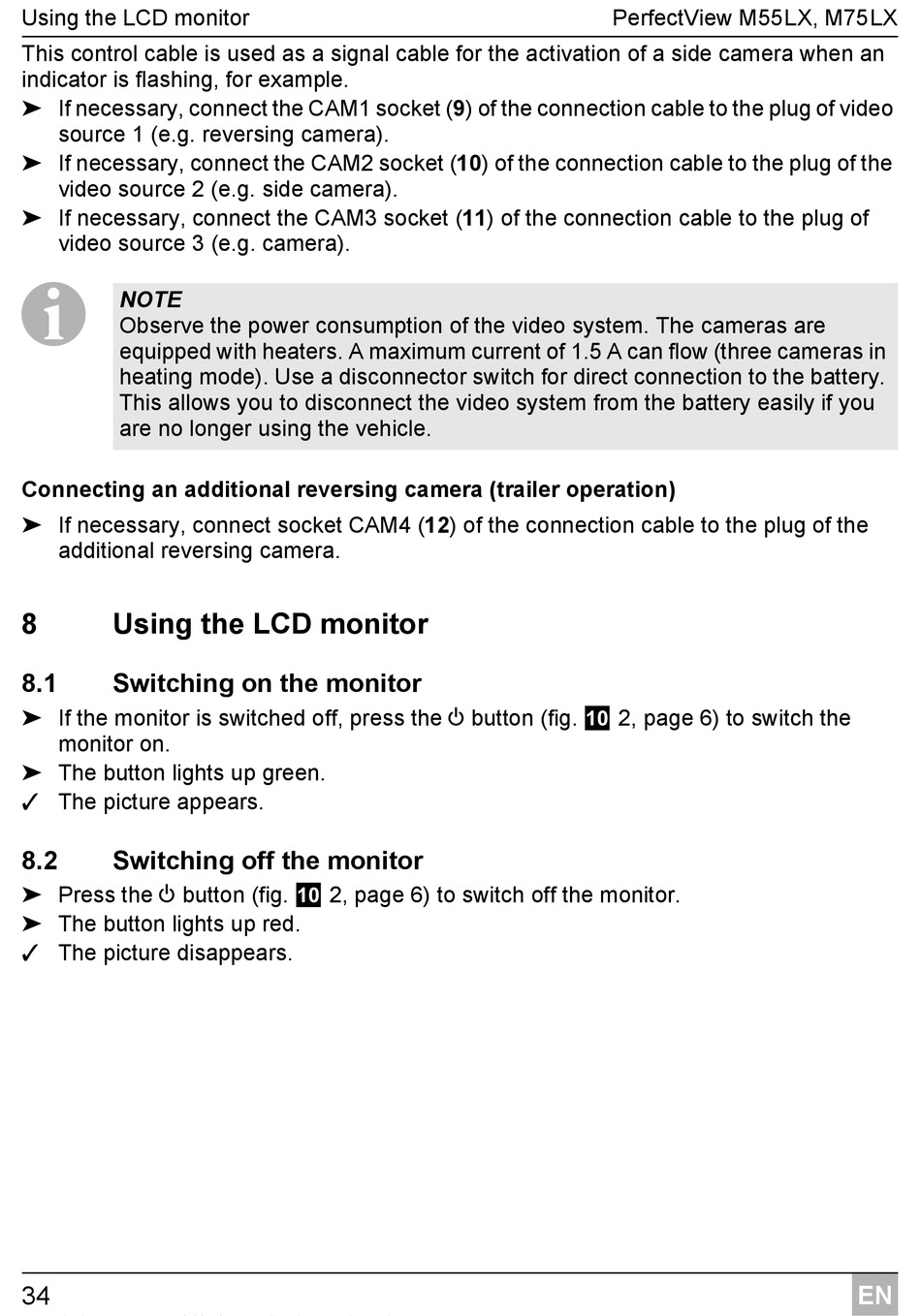

Using the LCD monitor

This control cable is used as a signal cable for the activation of a side camera when an
indicator is flashing, for example.
➤ If necessary, connect the CAM1 socket (9) of the connection cable to the plug of video
source 1 (e.g. reversing camera).
➤ If necessary, connect the CAM2 socket (10) of the connection cable to the plug of the
video source 2 (e.g. side camera).
➤ If necessary, connect the CAM3 socket (11) of the connection cable to the plug of
video source 3 (e.g. camera).
I
NOTE
Observe the power consumption of the video system. The cameras are
equipped with heaters. A maximum current of 1.5 A can flow (three cameras in
heating mode). Use a disconnector switch for direct connection to the battery.
This allows you to disconnect the video system from the battery easily if you
are no longer using the vehicle.
Connecting an additional reversing camera (trailer operation)
➤ If necessary, connect socket CAM4 (12) of the connection cable to the plug of the
additional reversing camera.
8 Using the LCD monitor
8.1

Switching on the monitor

➤ If the monitor is switched off, press the P button (fig. 0 2, page 6) to switch the
monitor on.
➤ The button lights up green.
✓ The picture appears.
8.2 Switching off the monitor
➤ Press the P button (fig. 0 2, page 6) to switch off the monitor.
➤ The button lights up red.
✓ The picture disappears.
34
PerfectView M55LX, M75LX
EN
