34

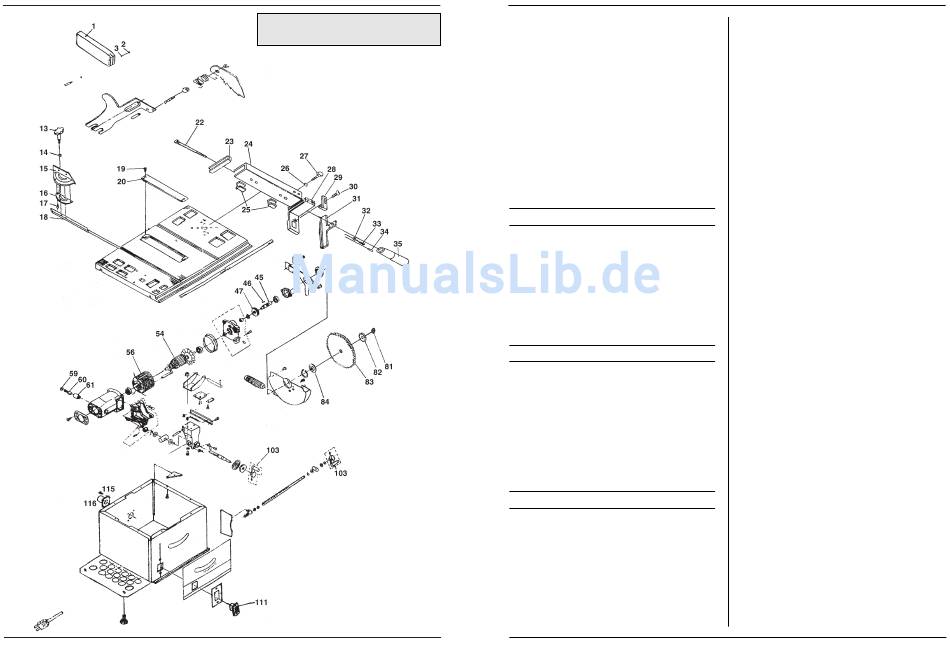

EXPLODED VIEW
Ferm
32. For mitring only the adjustable guide must be used
and the fence must be removed.
33. Never use the fence as a linear measure for cutting
off beams.
34. If the saw blade is locked: first switch off the machi-
ne before you attend to the fault.
35. Avoid workpieces hitting back in your direction by
taking the following measures:
-
always use sharp saw blades;
-
do not saw too small workpieces;
-
never release the workpiece before it has been
completely pushed through the saw;
-
always adjust the guide parallel to the saw blade;
-
never remove the saw protection;
36. Before you continue sawing, ensure that you are
standing firmly and that your hands are in the requi-
red position.
37. Never use thinners to clean the machine. Only use
a damp cloth for cleaning.
2. DESCRIPTION
(FIG. 1)
1. Protective cap
2. Fence
3. Bench inlay
4. Mitre handle
5. Height handle
6. Measurement set-up for fence
7. On/off switch
8. Bench protractor for mitring
9. Workbench
3. ELECTRICAL CONNECTION
1. As a supply for this machine always use an unloaded
line and/or an extension cable with conductors of
at least 1,5 mm
2
and protected with a 16 A fuse. Be
sure that this extension cable is not longer than 20
metres.
2. Only connect your machine and/or extension ca-
ble to an earthed electricity mains.
3. This machine can be switched to the single-phase
network (220-240 V/50 Hz). If you are in doubt
about the earth of the electricity provisions, con-
sult an electrician first.
4. ASSEMBLY
1. ASSEMBLY OF THE BENCH SAW ON
THE WORKBENCH
Attention! Only use the machine after it has been as-
sembled completely and it has been screwed onto the
workbench or the frame.
Fig. 2 shows the distance of the holes to be drilled in
the workbench on which to fasten the machine. Drill
holes of 8 mm.
Ferm
1. Fig. 3 shows the part to be sawn out (310 x 310), so
that the sawdust can fall through it and piling up is
prevented!
Only if you do not use an extraction system!
2. Fasten the machine with bolts.
If the frame is used, it must be fixed on the floor
with four screws and the machine must be fixed on
the frame with four screws. Check the screws be-
fore switching the machine on.
2. ASSEMBLY AND SETTING-UP OF THE
FENCE
1. Raise the handle upwards so that the claw of the
guide is open enough in order to place the fence on
the bench top.
2. Now lay the fence on the bench and install the back
part (with the claw) and then place the front part
over the rail. With the handle at the front of the
fence you can adjust the clamping stress of the fen-
ce.
Lock the fence by pushing the handle downwards.
If the handle cannot be pushed through far enough,
the clamping stress is too high and you must turn
the handle a few turns looser. If the handle can be
pushed through far enough but the fence is not fas-
tened or loosens by vibration, the clamping stress
is too low and you must turn the handle a few turns
tighter.
3. ASSEMBLY OF THE RIVING KNIFE
AND OF THE PROTECTIVE CAP
1. Turn the saw blade completely upwards.
2. Remove the bench inlay.
3. Assemble the riving knife on the set-up for this pur-
pose and use hereby the Allen screws and the filling
rings. Ensure that the riving knife falls properly into
the opening (= groove).
4. Now assembly the protective cap onto the riving
knife and use hereby the profiled nut and self-loc-
king nut.
5. Attention! Now lay a lath against the saw blade and
the riving knife and check whether it falls properly
into the extension of the saw blade. If this is not the
case: Loosen the fastening bolts and place or remo-
ve the filling rings.
4. ASSEMBLY OF THE SAW BLADE
First remove the plug from the mains before the saw
blade is assembled or replaced.
1. Remove the inlay from the bench. Use a screwdri-
ver for this purpose.
2. Turn the saw axle completely upwards. Remove
the nut and the outside flange from the saw axle.
3. Now slide the saw blade over the saw axle and now
put the outside flange and the nut back. Tighten the
nut by hand.
3
