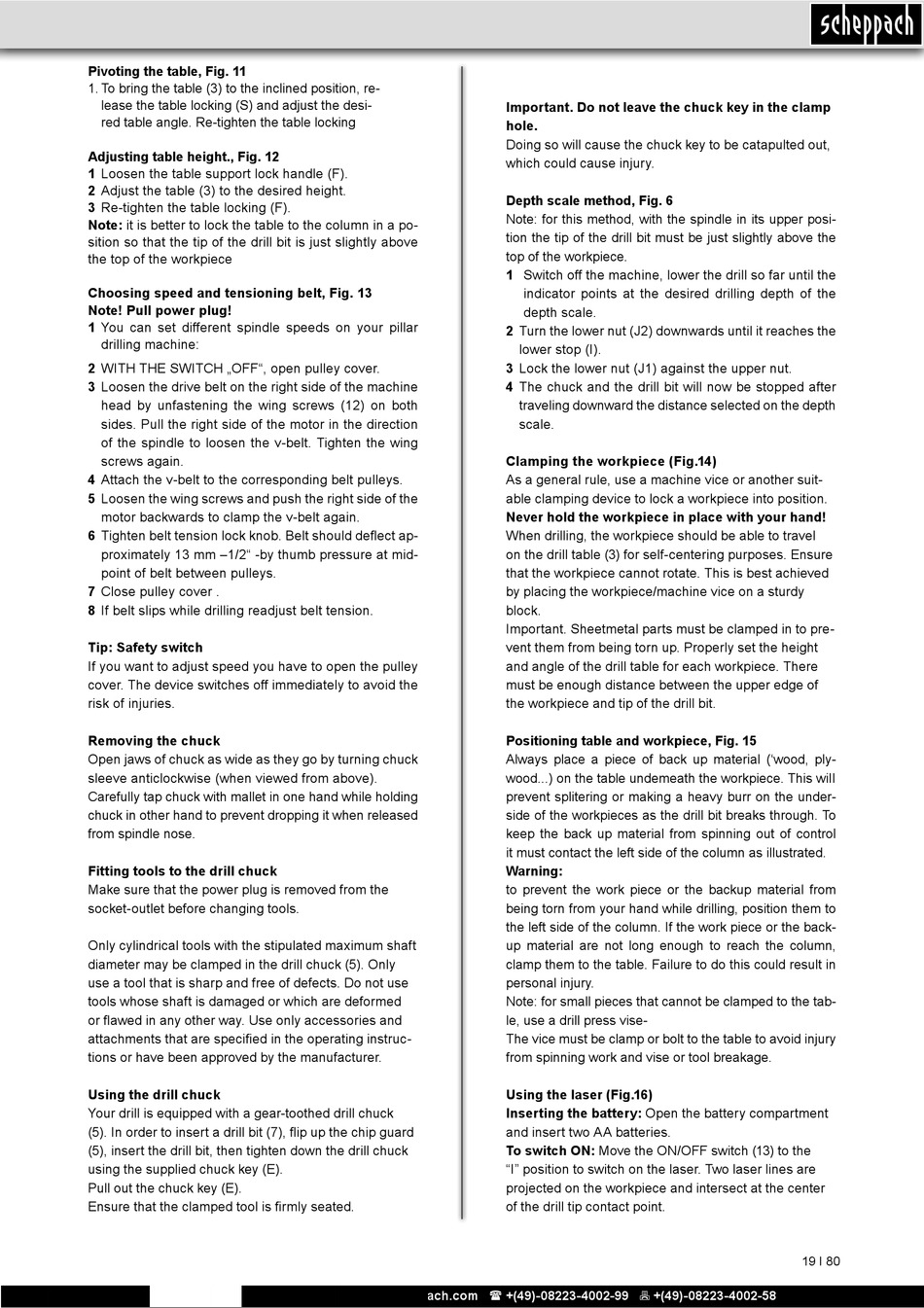

Pivoting the table, Fig. 11
1. To bring the table (3) to the inclined position, re-
lease the table locking (S) and adjust the desi-
red table angle. Re-tighten the table locking
Adjusting table height., Fig. 12
1 Loosen the table support lock handle (F).
2 Adjust the table (3) to the desired height.
3 Re-tighten the table locking (F).
Note: it is better to lock the table to the column in a po-
sition so that the tip of the drill bit is just slightly above
the top of the workpiece
Choosing speed and tensioning belt, Fig. 13
Note! Pull power plug!
1 You can set different spindle speeds on your pillar
drilling machine:
2 WITH THE SWITCH „OFF", open pulley cover.
3 Loosen the drive belt on the right side of the machine
head by unfastening the wing screws (12) on both
sides. Pull the right side of the motor in the direction
of the spindle to loosen the v-belt. Tighten the wing
screws again.
4 Attach the v-belt to the corresponding belt pulleys.
5 Loosen the wing screws and push the right side of the
motor backwards to clamp the v-belt again.
6 Tighten belt tension lock knob. Belt should deflect ap-
proximately 13 mm –1/2" -by thumb pressure at mid-
point of belt between pulleys.
7 Close pulley cover .
8 If belt slips while drilling readjust belt tension.
Tip: Safety switch
If you want to adjust speed you have to open the pulley
cover. The device switches off immediately to avoid the
risk of injuries.
Removing the chuck
Open jaws of chuck as wide as they go by turning chuck
sleeve anticlockwise (when viewed from above).
Carefully tap chuck with mallet in one hand while holding
chuck in other hand to prevent dropping it when released
from spindle nose.
Fitting tools to the drill chuck
Make sure that the power plug is removed from the
socket-outlet before changing tools.
Only cylindrical tools with the stipulated maximum shaft
diameter may be clamped in the drill chuck (5). Only
use a tool that is sharp and free of defects. Do not use
tools whose shaft is damaged or which are deformed
or flawed in any other way. Use only accessories and
attachments that are specified in the operating instruc-
tions or have been approved by the manufacturer.
Using the drill chuck
Your drill is equipped with a gear-toothed drill chuck
(5). In order to insert a drill bit (7), flip up the chip guard
(5), insert the drill bit, then tighten down the drill chuck
using the supplied chuck key (E).
Pull out the chuck key (E).
Ensure that the clamped tool is firmly seated.
