WABCO Compact Tester Bedienungsanleitung Seite 18

GB

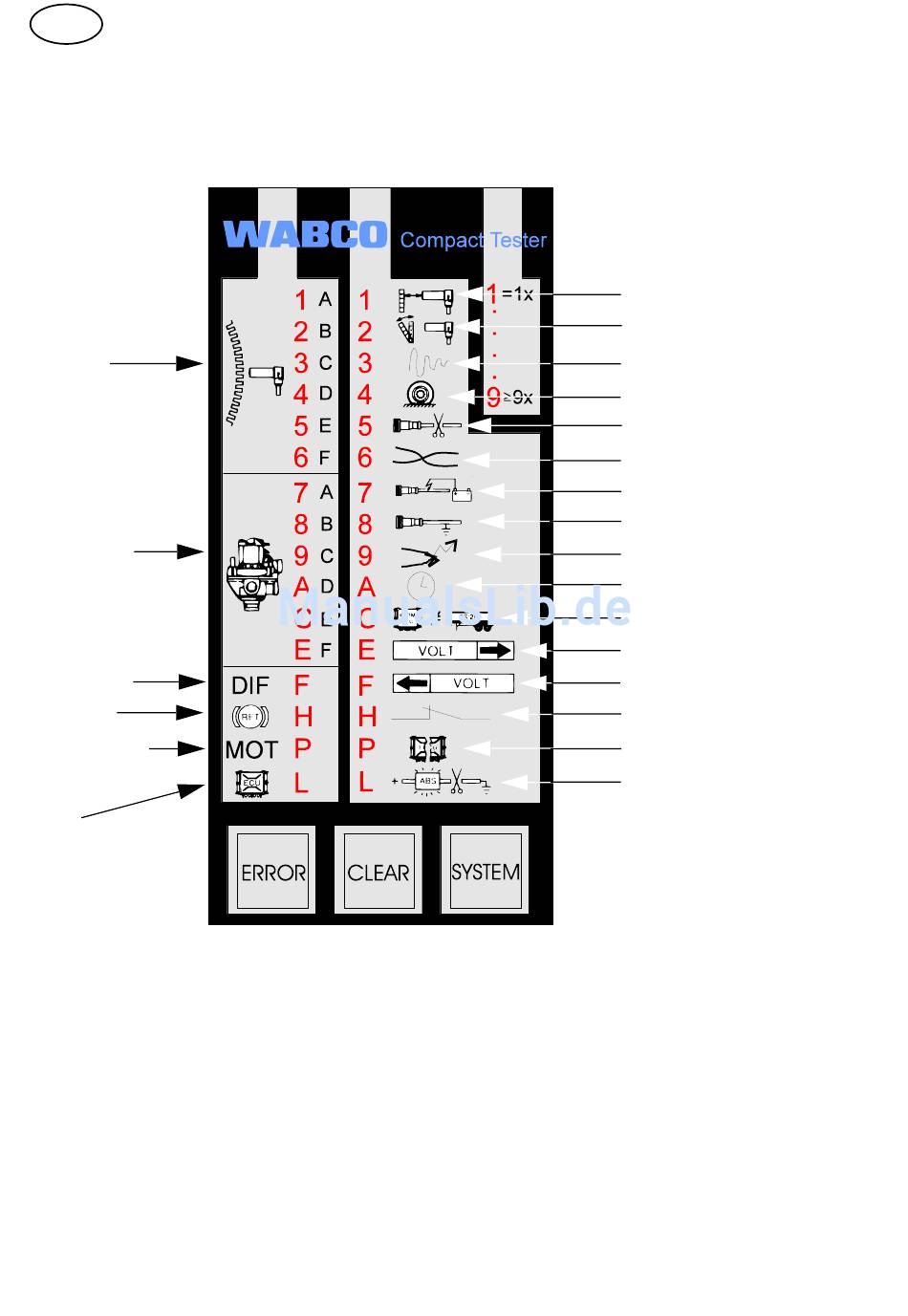

Description of front panel pictographs:
sensor
modulator
DIF valve
retarder
engine con-
trol / interface
ECU
If the Compact Tester is unable to iden-
tify the ECU connected, the display will
show "ECU".
When establishing the diagnostic con-
nection, the baud rate is checked auto-
matically. The programme sets the
16
clearance defect
pole wheel defect
defective signal
wrong tyre size
parted cable
wrong cable connection
short to U
short to earth
short /
time error
slip error
overvoltage
undervoltage
defect: relay or switch position
defective component (ECU)
ABS warning lamp
1)
2)
baud rate identified on the Compact
Tester. This means that ABS ECUs with
any transmission rates can be connect-
ed to the Compact Tester.
The following functions can be initiated
by pushing the appropriate buttons:
Batt
1)
2)
/ outside source of energy /
shorted coil
(cut-in, actuating and
activating times)
