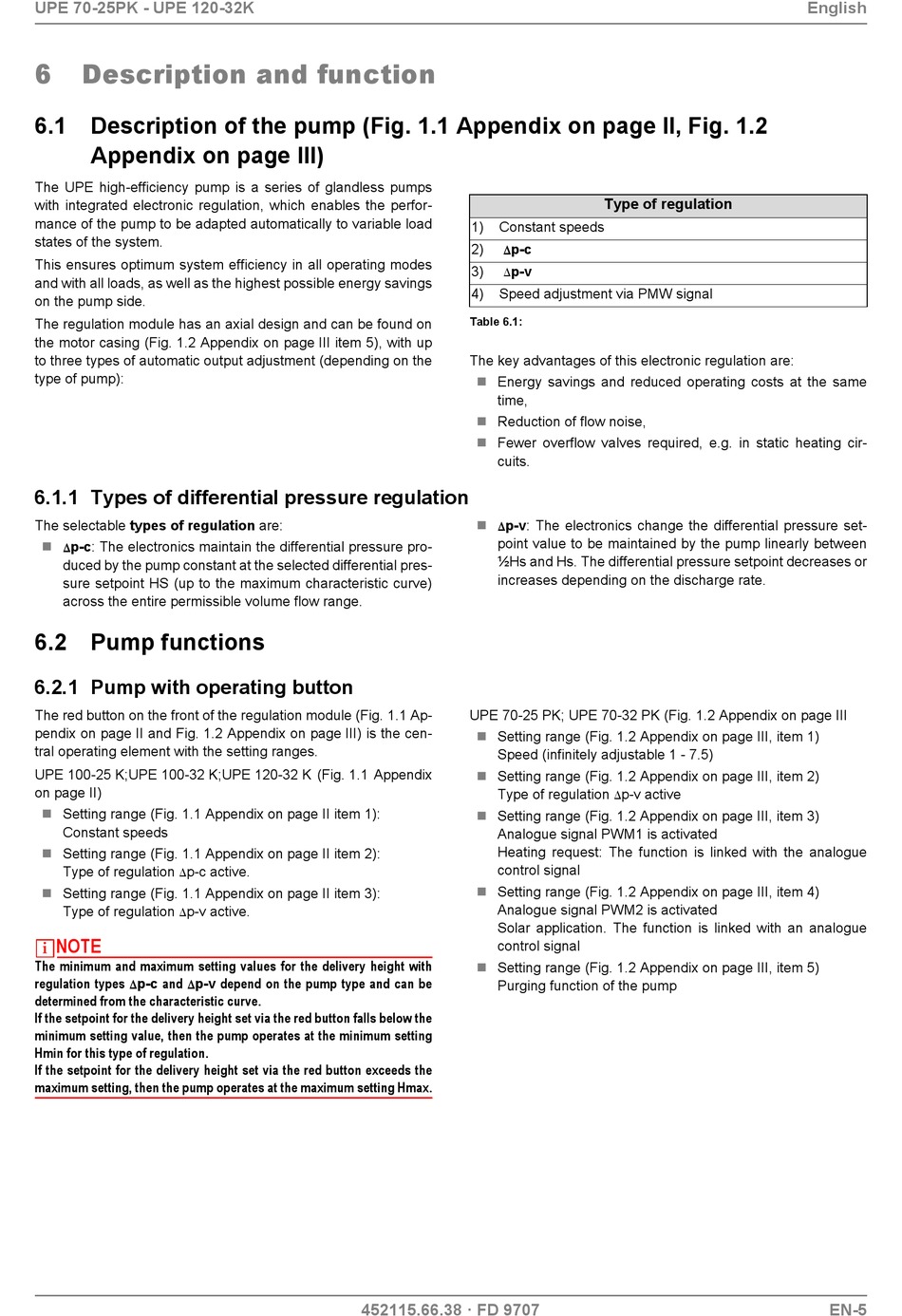

Description and function

6.1 Description of the pump (Fig. 1.1 Appendix on page II, Fig. 1.2
Appendix on page III)
The UPE high-efficiency pump is a series of glandless pumps
with integrated electronic regulation, which enables the perfor-
mance of the pump to be adapted automatically to variable load
states of the system.
This ensures optimum system efficiency in all operating modes
and with all loads, as well as the highest possible energy savings
on the pump side.
The regulation module has an axial design and can be found on
the motor casing (Fig. 1.2 Appendix on page III item 5), with up
to three types of automatic output adjustment (depending on the
type of pump):

6.1.1 Types of differential pressure regulation

The selectable types of regulation are:
 p-c: The electronics maintain the differential pressure pro-

duced by the pump constant at the selected differential pres-
sure setpoint HS (up to the maximum characteristic curve)
across the entire permissible volume flow range.

6.2 Pump functions

6.2.1 Pump with operating button

The red button on the front of the regulation module (Fig. 1.1 Ap-
pendix on page II and Fig. 1.2 Appendix on page III) is the cen-
tral operating element with the setting ranges.
UPE 100-25 K;UPE 100-32 K;UPE 120-32 K (Fig. 1.1 Appendix
on page II)
 Setting range (Fig. 1.1 Appendix on page II item 1):
Constant speeds
 Setting range (Fig. 1.1 Appendix on page II item 2):
Type of regulation p-c active.

 Setting range (Fig. 1.1 Appendix on page II item 3):
Type of regulation p-v active.

NOTE
The minimum and maximum setting values for the delivery height with
regulation types p-c and p-v depend on the pump type and can be
 
determined from the characteristic curve.
If the setpoint for the delivery height set via the red button falls below the
minimum setting value, then the pump operates at the minimum setting
Hmin for this type of regulation.
If the setpoint for the delivery height set via the red button exceeds the
maximum setting, then the pump operates at the maximum setting Hmax.
1) Constant speeds
2) p-c

3) p-v

4) Speed adjustment via PMW signal
Table 6.1:
The key advantages of this electronic regulation are:
 Energy savings and reduced operating costs at the same
time,
 Reduction of flow noise,
 Fewer overflow valves required, e.g. in static heating cir-
cuits.
 p-v: The electronics change the differential pressure set-

point value to be maintained by the pump linearly between
½Hs and Hs. The differential pressure setpoint decreases or
increases depending on the discharge rate.
UPE 70-25 PK; UPE 70-32 PK (Fig. 1.2 Appendix on page III
 Setting range (Fig. 1.2 Appendix on page III, item 1)
Speed (infinitely adjustable 1 - 7.5)
 Setting range (Fig. 1.2 Appendix on page III, item 2)
Type of regulation
Setting range (Fig. 1.2 Appendix on page III, item 3)

Analogue signal PWM1 is activated
Heating request: The function is linked with the analogue
control signal
 Setting range (Fig. 1.2 Appendix on page III, item 4)
Analogue signal PWM2 is activated
Solar application. The function is linked with an analogue
control signal
 Setting range (Fig. 1.2 Appendix on page III, item 5)
Purging function of the pump
