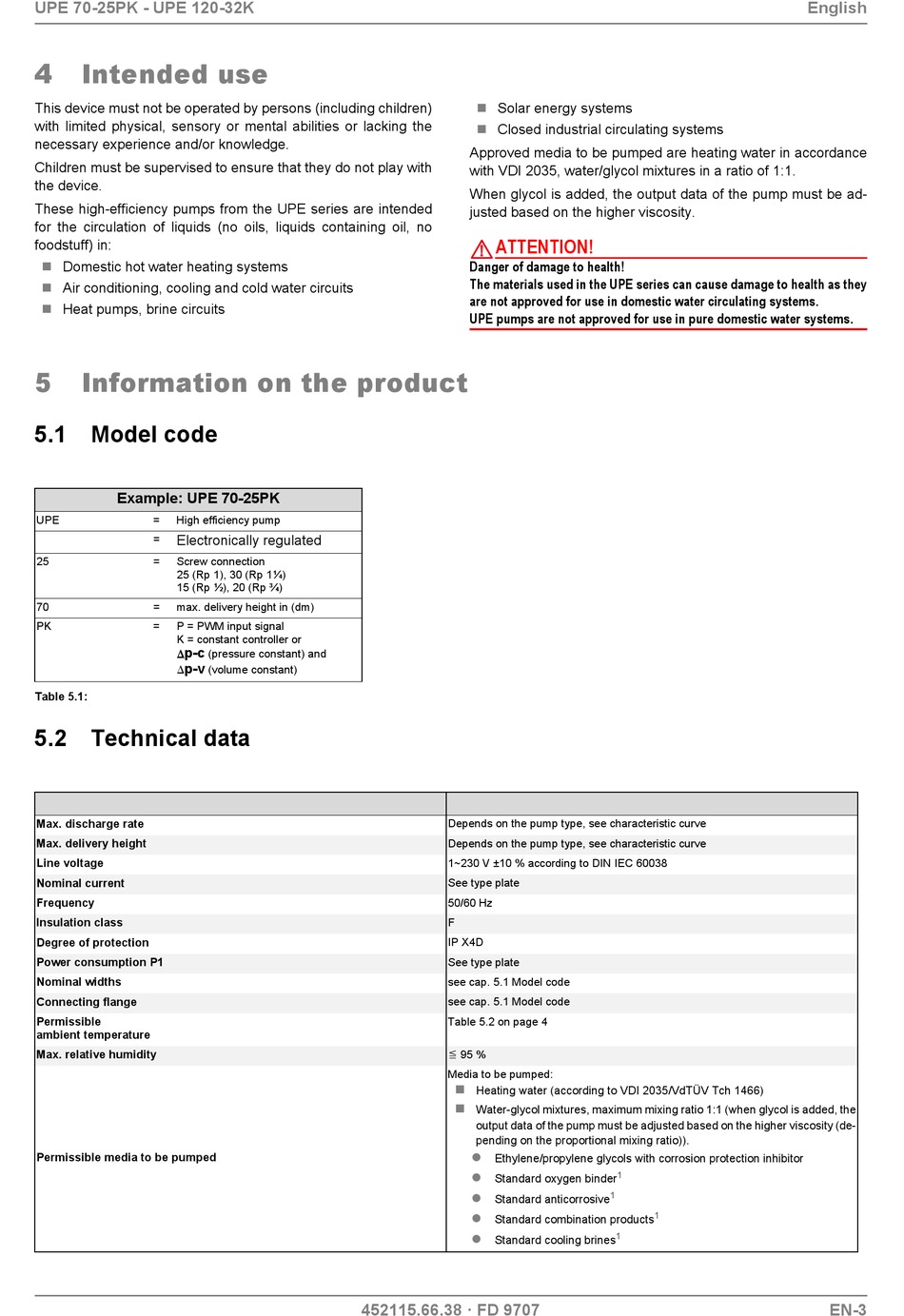

UPE 70-25PK - UPE 120-32K
4

Intended use

This device must not be operated by persons (including children)
with limited physical, sensory or mental abilities or lacking the
necessary experience and/or knowledge.
Children must be supervised to ensure that they do not play with
the device.
These high-efficiency pumps from the UPE series are intended
for the circulation of liquids (no oils, liquids containing oil, no
foodstuff) in:
 Domestic hot water heating systems
 Air conditioning, cooling and cold water circuits
 Heat pumps, brine circuits
5

Information on the product

5.1 Model code

Example: UPE 70-25PK
UPE = High efficiency pump
= Electronically regulated
25 = Screw connection
25 (Rp 1), 30 (Rp 1¼)
15 (Rp ½), 20 (Rp ¾)
70 = max. delivery height in (dm)
PK = P = PWM input signal
K = constant controller or
p-c

p-v

Table 5.1:

5.2 Technical data

Max. discharge rate
Max. delivery height
Line voltage
Nominal current
Frequency
Insulation class
Degree of protection
Power consumption P1
Nominal widths
Connecting flange
Permissible
ambient temperature
Max. relative humidity
Permissible media to be pumped
(pressure constant) and
(volume constant)
452115.66.38 · FD 9707
 Solar energy systems
 Closed industrial circulating systems
Approved media to be pumped are heating water in accordance
with VDI 2035, water/glycol mixtures in a ratio of 1:1.
When glycol is added, the output data of the pump must be ad-
justed based on the higher viscosity.
ATTENTION!
Danger of damage to health!
The materials used in the UPE series can cause damage to health as they
are not approved for use in domestic water circulating systems.
UPE pumps are not approved for use in pure domestic water systems.
Depends on the pump type, see characteristic curve
Depends on the pump type, see characteristic curve
1~230 V ±10 % according to DIN IEC 60038
See type plate
50/60 Hz
F
IP X4D
See type plate
see cap. 5.1 Model code
see cap. 5.1 Model code
Table 5.2 on page 4
 95 %
Media to be pumped:

Heating water (according to VDI 2035/VdTÜV Tch 1466)

Water-glycol mixtures, maximum mixing ratio 1:1 (when glycol is added, the
output data of the pump must be adjusted based on the higher viscosity (de-
pending on the proportional mixing ratio)).

Ethylene/propylene glycols with corrosion protection inhibitor
 1
Standard oxygen binder
1

Standard anticorrosive

Standard combination products
1

Standard cooling brines
English
1
EN-3
