1. Indroduction

1.1 General Remarks

The Varyscan MICRO Plus 150HTI is equipped with 7 colours plus white, 10 gobos
(5 of them rotating and interchangable), rainbow effect in different speeds
and a high speed shutter.
The pan and tilt movement can opperate in 8bit or 16bit mode, depening on the lighting
control desk in use.

1.2 Unpacking

Open the top of the box and remove the unit with the inlays. Remove the
inlays from the Varyscan.
For any damage occuring during transport, report to the transport company
immediately.

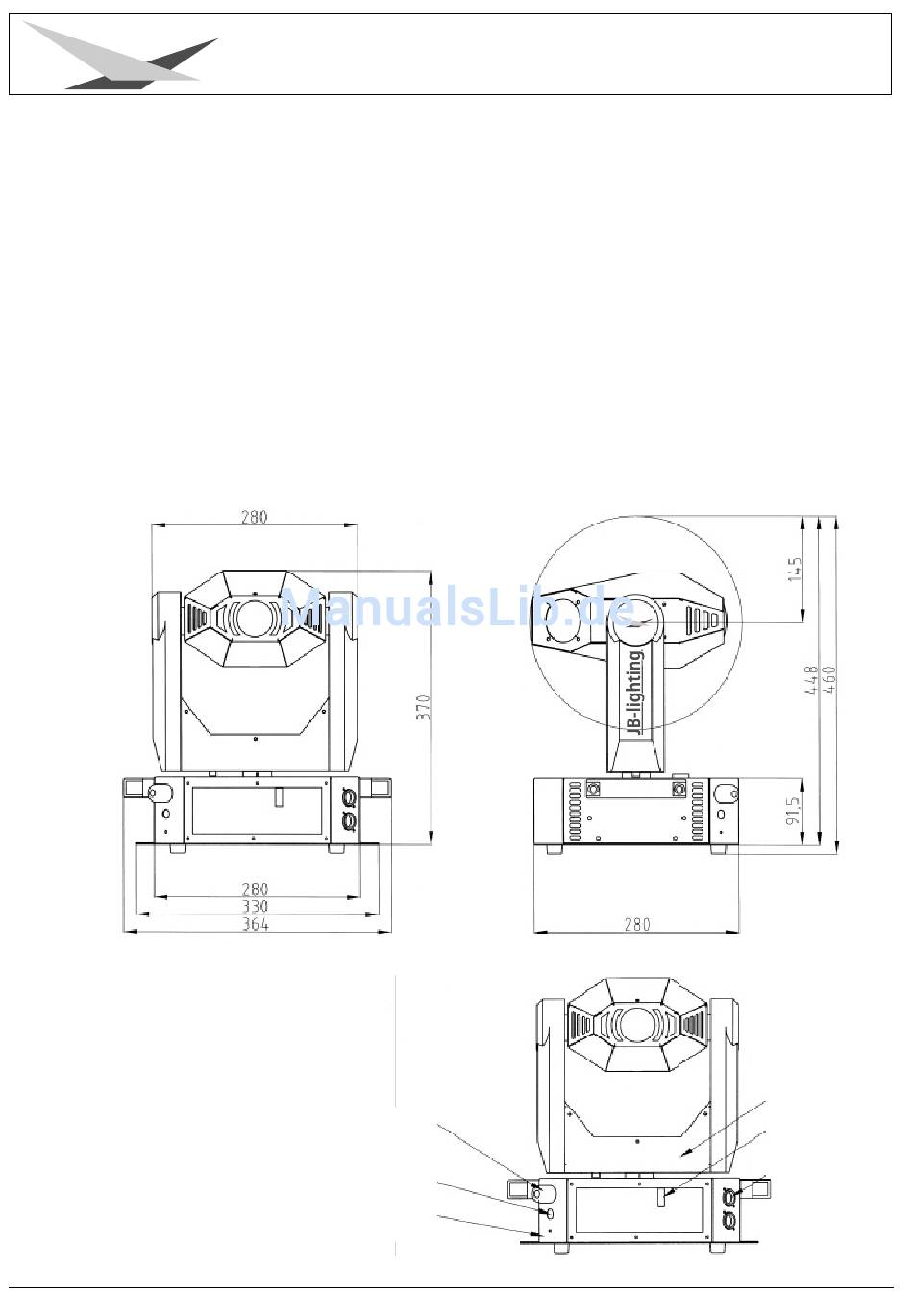

1.3 Technical Datas

weight:
power supply:
current consumption:
lamp:
max.
ambient temperature:
JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Telefon ++49(0) 07304-9617-0
12
Varyscan MICRO Plus 150HTI
9.8 kg
230V 50Hz
2A
OSRAM 150HTI
50°C
mains connection
Fuse
3.15AT
Base
arm
DIP switch
DMX connector
