1. Indroduction

1.1 General Remarks

The Varyscan P6 575HMI is equipped with 7 colours plus white, one colour effect wheel
1 x 4 gobos (rotating, indexable and interchangable),1 x 5 gobos fixed, interchangeable,
iris diaphram, focus, one rotating, indexable and exchangeable prism, dimmer, shutter and
progressive frost filter.
The pan and tilt movement can opperate in 8bit or 16bit mode, depening on the lighting
control desk in use.

1.2 Unpacking

Open the top of the box and remove the inlays. Remove the unit from the box.
For any damage occuring during transport, report to the transport company
immediately.

1.3 Technical data

weight:
Power connection:
Power consumtion:
light source:
max.
ambient temperature: 40°C
JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Telefon +49 (0)7304-9617-0
20
33 kg
230V 50Hz
3,9A
OSRAM HMI 575 GS

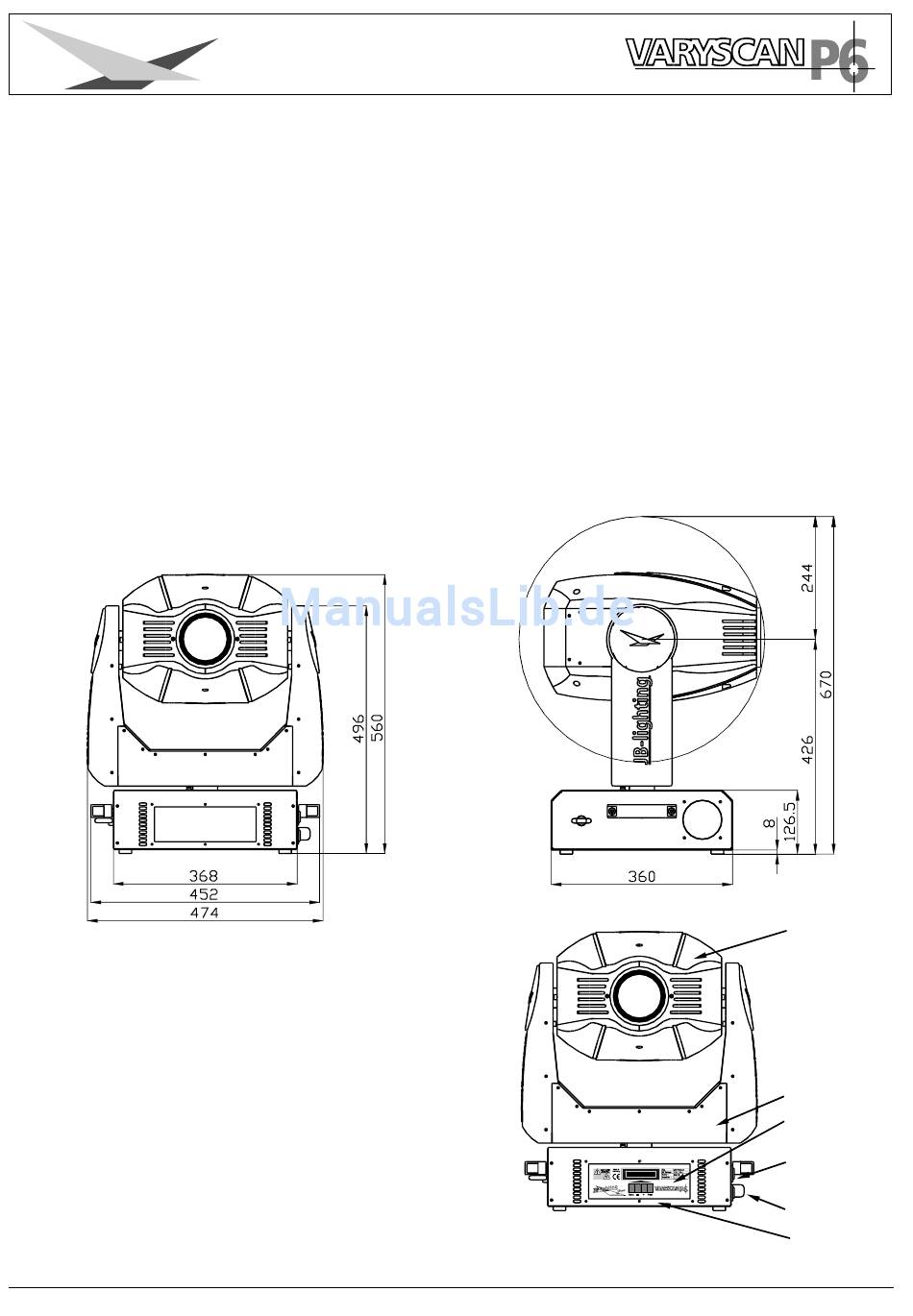

head
arm
control panel
XLR connectors
power supply
base
