WPM Touch Master
5

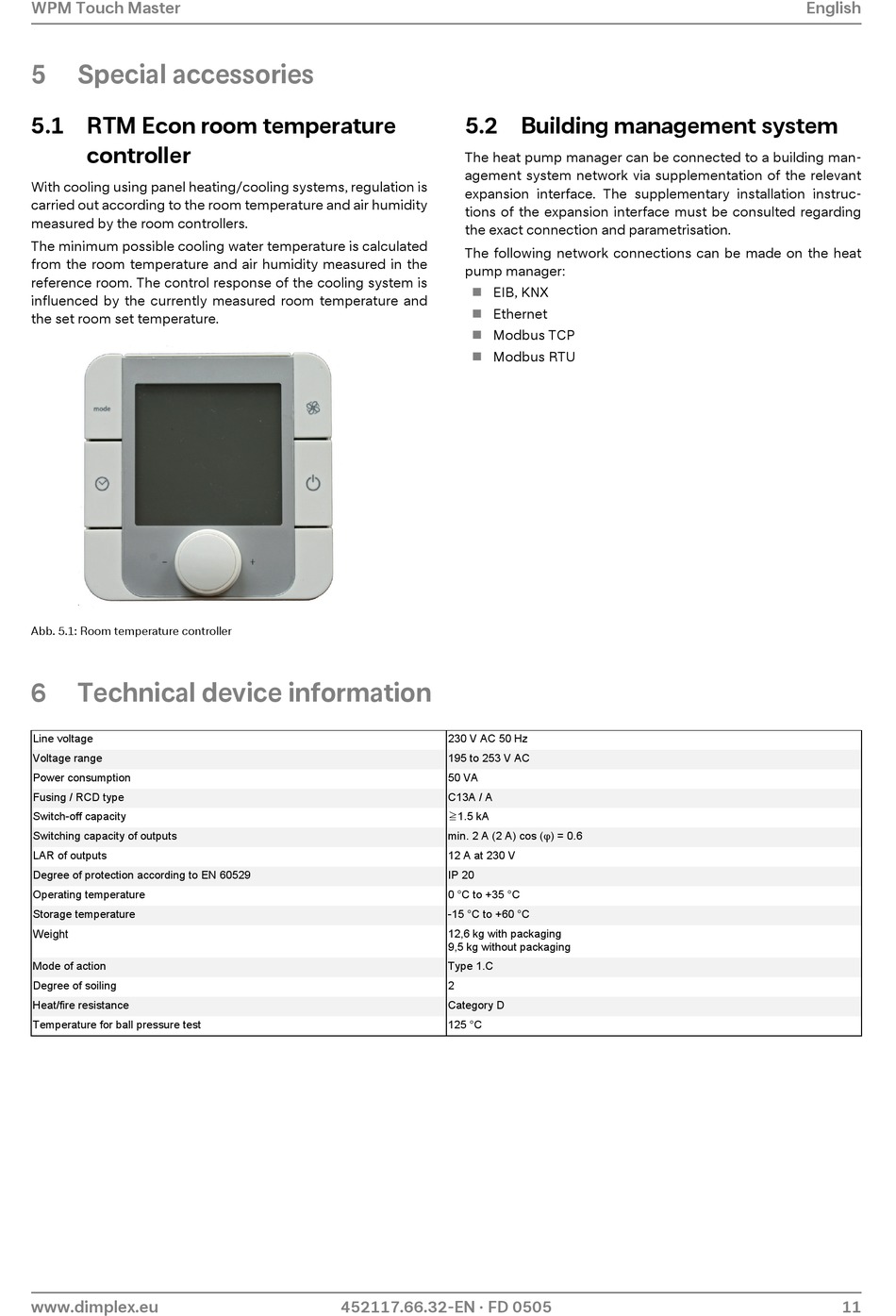

Special accessories

5.1 RTM Econ room temperature
controller
With cooling using panel heating/cooling systems, regulation is
carried out according to the room temperature and air humidity
measured by the room controllers.
The minimum possible cooling water temperature is calculated
from the room temperature and air humidity measured in the
reference room. The control response of the cooling system is
influenced by the currently measured room temperature and
the set room set temperature.
Abb. 5.1: Room temperature controller
6

Technical device information

Line voltage
Voltage range
Power consumption
Fusing / RCD type
Switch-off capacity
Switching capacity of outputs
LAR of outputs
Degree of protection according to EN 60529
Operating temperature
Storage temperature
Weight
Mode of action
Degree of soiling
Heat/fire resistance
Temperature for ball pressure test
www.dimplex.eu

5.2 Building management system

The heat pump manager can be connected to a building man-
agement system network via supplementation of the relevant
expansion interface. The supplementary installation instruc-
tions of the expansion interface must be consulted regarding
the exact connection and parametrisation.
The following network connections can be made on the heat
pump manager:
EIB, KNX

 Ethernet
Modbus TCP

 Modbus RTU
230 V AC 50 Hz
195 to 253 V AC
50 VA
C13A / A
P1.5 kA
min. 2 A (2 A) cos (  ) = 0.6
12 A at 230 V
IP 20
0 °C to +35 °C
-15 °C to +60 °C
12,6 kg with packaging
9,5 kg without packaging
Type 1.C
2
Category D
125 °C
452117.66.32-EN · FD 0505
English
