1

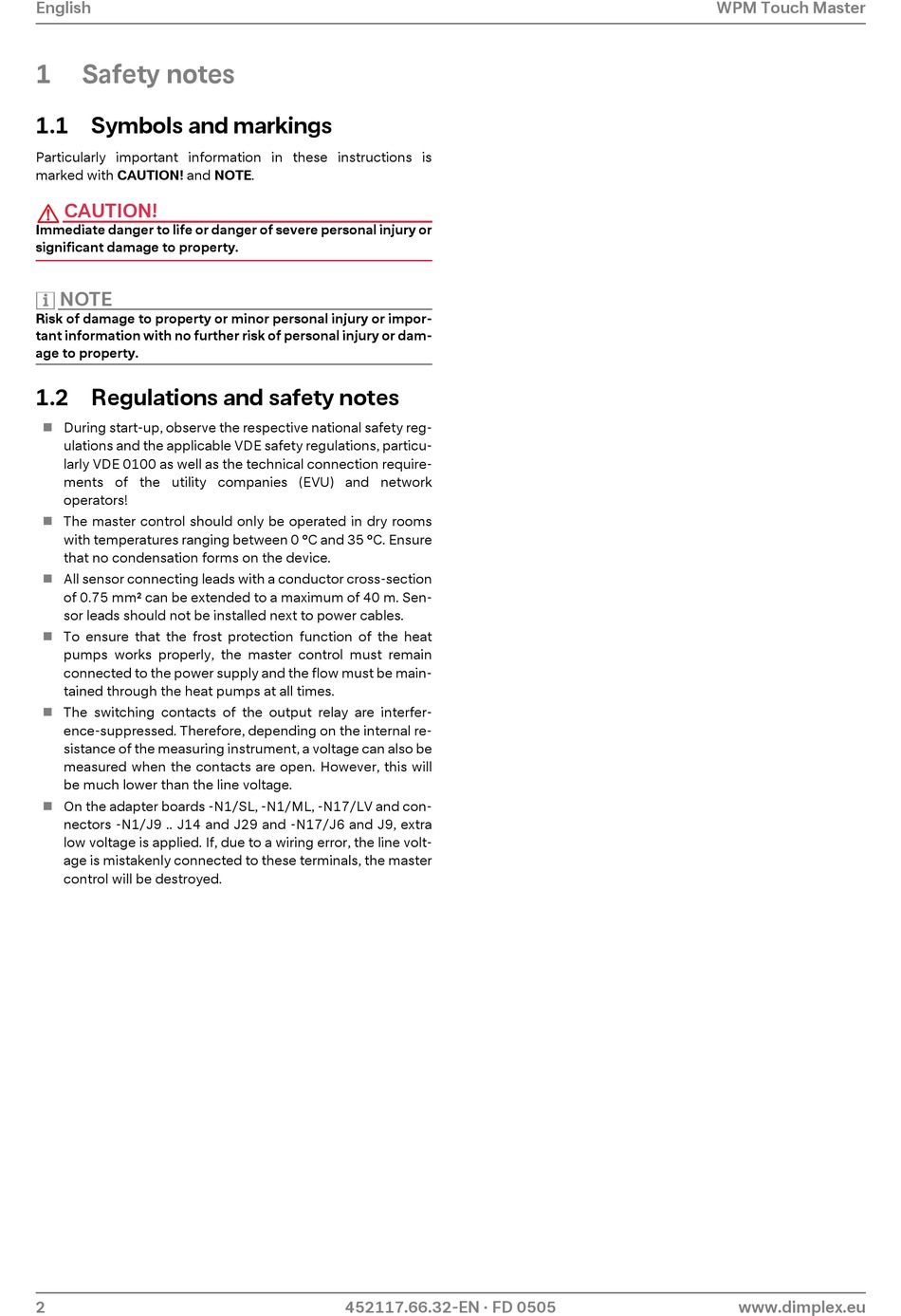

Safety notes

1.1 Symbols and markings

Particularly important information in these instructions is
marked with CAUTION! and NOTE.
CAUTION!
Immediate danger to life or danger of severe personal injury or
significant damage to property.
HINWEIS
NOTE
Risk of damage to property or minor personal injury or impor-
tant information with no further risk of personal injury or dam-
age to property.

1.2 Regulations and safety notes

 During start-up, observe the respective national safety reg-
ulations and the applicable VDE safety regulations, particu-
larly VDE 0100 as well as the technical connection require-
ments of the utility companies (EVU) and network
operators!
 The master control should only be operated in dry rooms
with temperatures ranging between 0 °C and 35 °C. Ensure
that no condensation forms on the device.
All sensor connecting leads with a conductor cross-section

of 0.75 mm² can be extended to a maximum of 40 m. Sen-
sor leads should not be installed next to power cables.
To ensure that the frost protection function of the heat

pumps works properly, the master control must remain
connected to the power supply and the flow must be main-
tained through the heat pumps at all times.
The switching contacts of the output relay are interfer-

ence-suppressed. Therefore, depending on the internal re-
sistance of the measuring instrument, a voltage can also be
measured when the contacts are open. However, this will
be much lower than the line voltage.
On the adapter boards -N1/SL, -N1/ML, -N17/LV and con-

nectors -N1/J9 .. J14 and J29 and -N17/J6 and J9, extra
low voltage is applied. If, due to a wiring error, the line volt-
age is mistakenly connected to these terminals, the master
control will be destroyed.
