Assembly

3.1 Attaching the wall-mounted
master control
The controller is attached to the wall with the 3 screws and
dowels (6 mm) included in the scope of supply. The following
installation procedure must be followed to avoid soiling or dam-
aging the controller:
300

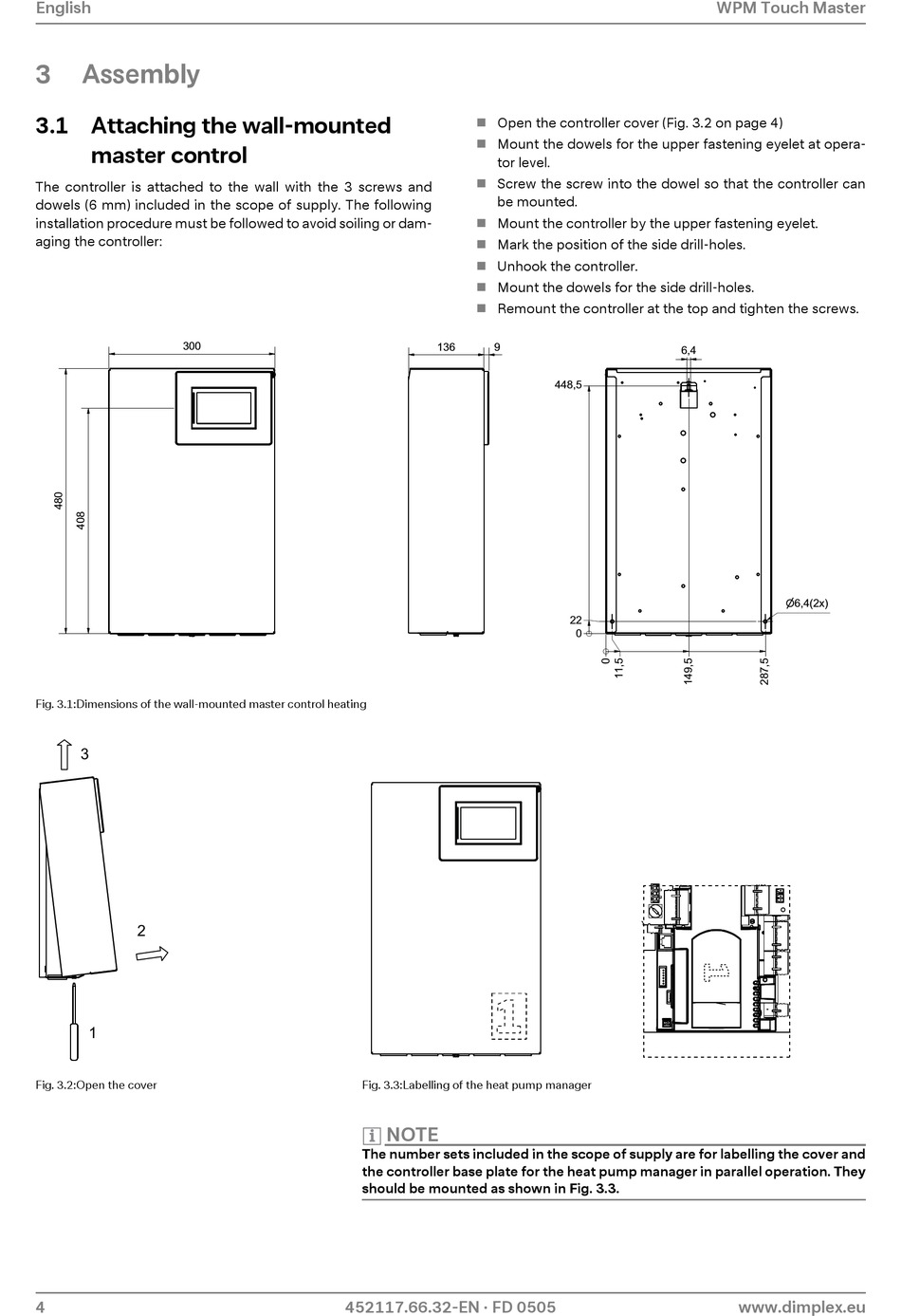

Fig. 3.1:Dimensions of the wall-mounted master control heating
3
2
1
Fig. 3.2:Open the cover
4
Open the controller cover (Fig. 3.2 on page 4)

 Mount the dowels for the upper fastening eyelet at opera-
tor level.
 Screw the screw into the dowel so that the controller can
be mounted.
Mount the controller by the upper fastening eyelet.

 Mark the position of the side drill-holes.
Unhook the controller.

 Mount the dowels for the side drill-holes.
Remount the controller at the top and tighten the screws.

136 9
1
Fig. 3.3:Labelling of the heat pump manager
HINWEIS
NOTE
The number sets included in the scope of supply are for labelling the cover and
the controller base plate for the heat pump manager in parallel operation. They
should be mounted as shown in Fig. 3.3.
452117.66.32-EN · FD 0505
WPM Touch Master
6,4
448,5
22
0
6,4(2x)
