WPM Touch Master
2

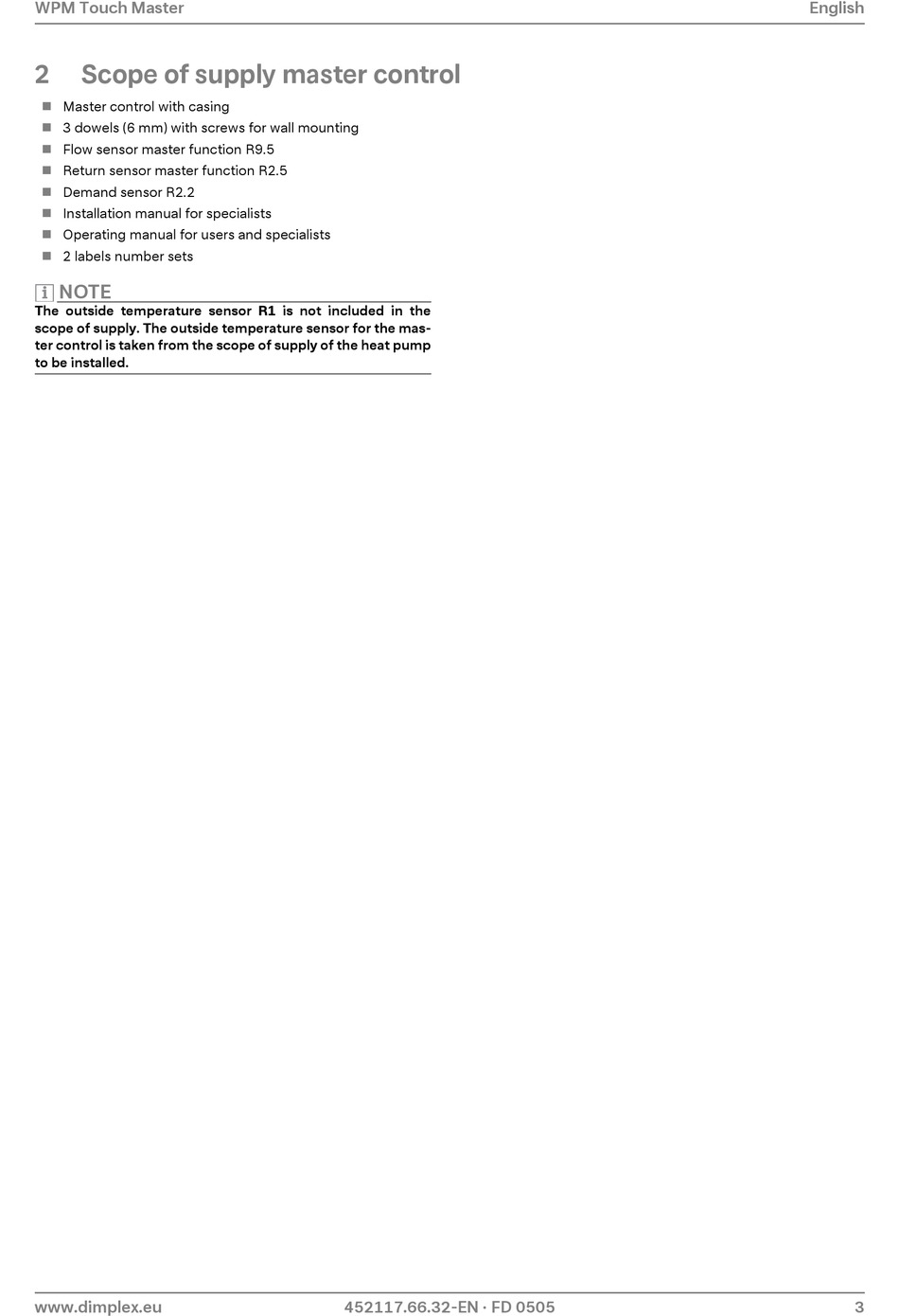

Scope of supply master control

Master control with casing

 3 dowels (6 mm) with screws for wall mounting
Flow sensor master function R9.5

 Return sensor master function R2.5
Demand sensor R2.2

 Installation manual for specialists
Operating manual for users and specialists

2 labels number sets

HINWEIS
NOTE
The outside temperature sensor R1 is not included in the
scope of supply. The outside temperature sensor for the mas-
ter control is taken from the scope of supply of the heat pump
to be installed.
www.dimplex.eu 452117.66.32-EN · FD 0505
English
3
