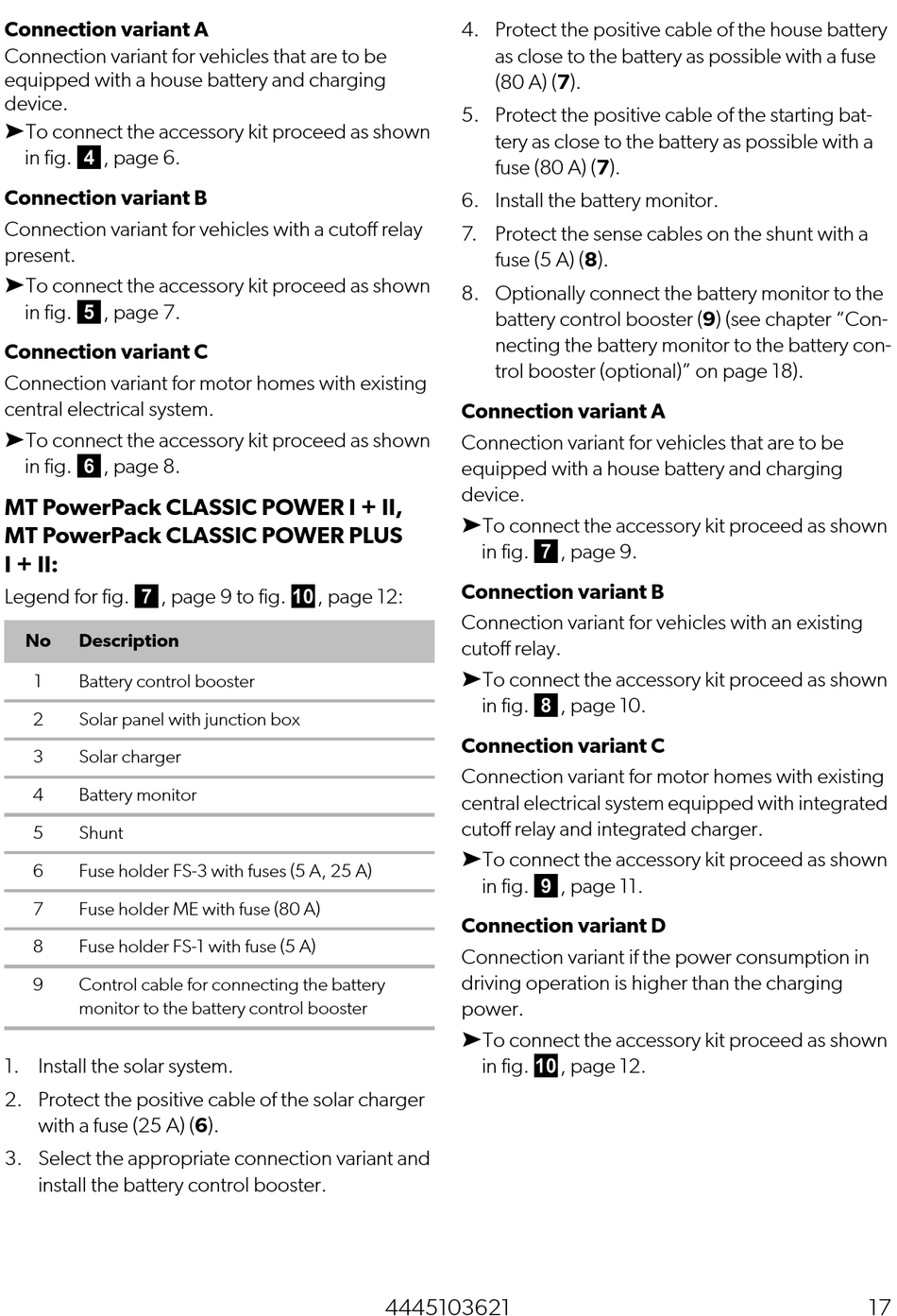

Connection variant A
Connection variant for vehicles that are to be
equipped with a house battery and charging
device.
➤To connect the accessory kit proceed as shown
in fig. 4, page 6.
Connection variant B
Connection variant for vehicles with a cutoff relay
present.
➤To connect the accessory kit proceed as shown
in fig. 5, page 7.
Connection variant C
Connection variant for motor homes with existing
central electrical system.
➤To connect the accessory kit proceed as shown
in fig. 6, page 8.
MT PowerPack CLASSIC POWER I + II,
MT PowerPack CLASSIC POWER PLUS
I + II:
Legend for fig. 7, page 9 to fig. 0, page 12:
No
Description
1
Battery control booster
2
Solar panel with junction box
3
Solar charger
4
Battery monitor
5
Shunt
6
Fuse holder FS-3 with fuses (5 A, 25 A)
7
Fuse holder ME with fuse (80 A)
8
Fuse holder FS-1 with fuse (5 A)
9
Control cable for connecting the battery
monitor to the battery control booster
1. Install the solar system.
2. Protect the positive cable of the solar charger
with a fuse (25 A) (6).
3. Select the appropriate connection variant and
install the battery control booster.
4. Protect the positive cable of the house battery
as close to the battery as possible with a fuse
(80 A) (7).
5. Protect the positive cable of the starting bat-
tery as close to the battery as possible with a
fuse (80 A) (7).
6. Install the battery monitor.
7. Protect the sense cables on the shunt with a
fuse (5 A) (8).
8. Optionally connect the battery monitor to the
battery control booster (9) (see chapter "Con-
necting the battery monitor to the battery con-
trol booster (optional)" on page 18).
Connection variant A
Connection variant for vehicles that are to be
equipped with a house battery and charging
device.
➤To connect the accessory kit proceed as shown
in fig. 7, page 9.
Connection variant B
Connection variant for vehicles with an existing
cutoff relay.
➤To connect the accessory kit proceed as shown
in fig. 8, page 10.
Connection variant C
Connection variant for motor homes with existing
central electrical system equipped with integrated
cutoff relay and integrated charger.
➤To connect the accessory kit proceed as shown
in fig. 9, page 11.
Connection variant D
Connection variant if the power consumption in
driving operation is higher than the charging
power.
➤To connect the accessory kit proceed as shown
in fig. 0, page 12.
4445103621
17
