10. Accessories – Communication with Dosing Stations / Salinators

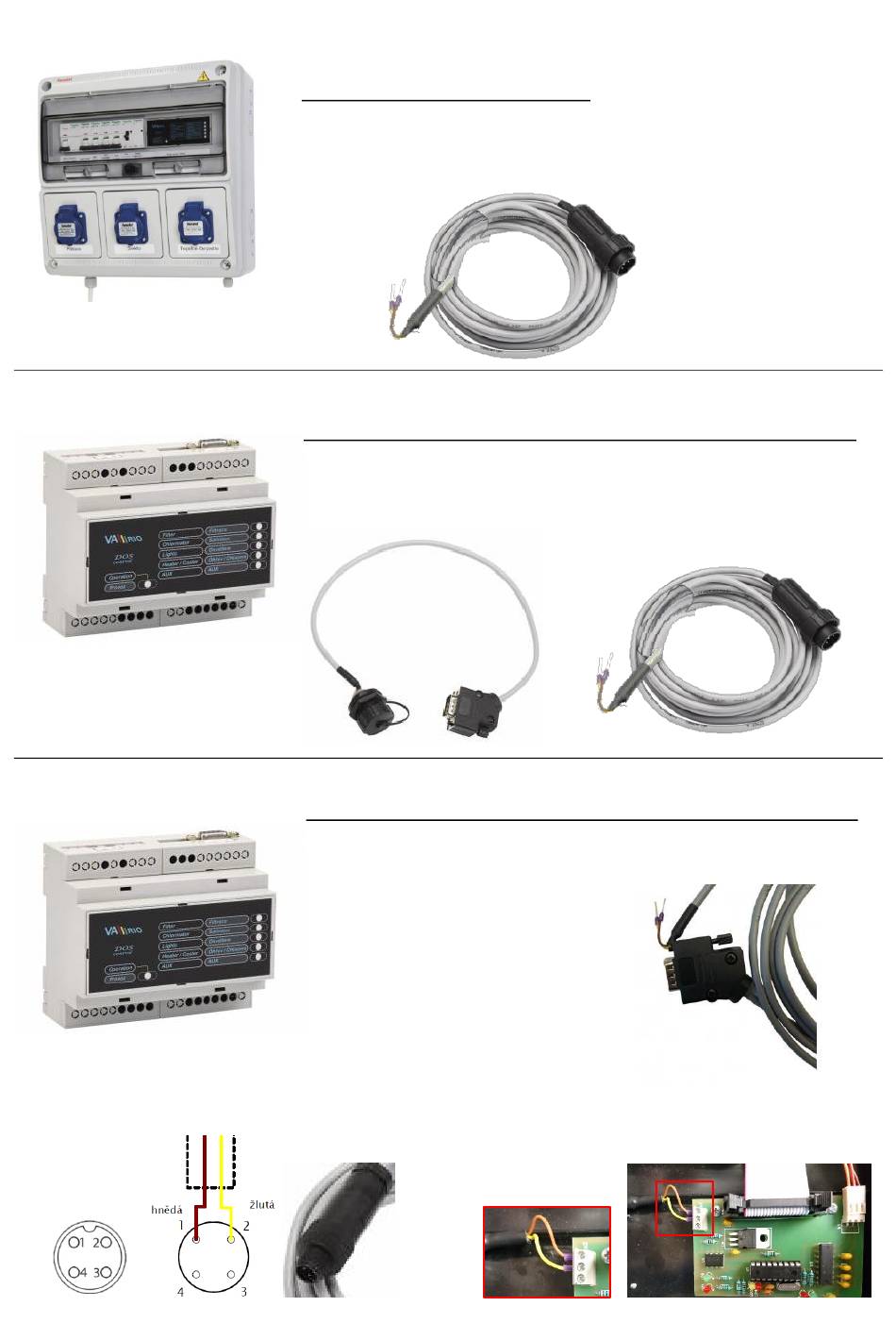

VA DOS – dosing station connector
(inside dosing station package)
Connection:
VArio in a complete breaker box:
+ 516130 - CABLE – BREAKER BOX TO DOSING
(Connector on breaker box wall -> dosing station)
DIN module built in into an older breaker box + dosing station:
516131 - CABLE – VARIO INTO OLD BR. BOX
(extension DIN module -> breaker box wall)
Separate DIN module + connection directly to a dosing station:
+ 516132 - CABLE - SEPARATE DIN TO DOSING
(DIN module -> dosing station)
Yellow "–"
Brown "+"
VA SALT SMART – communication module
(+ 516141 – VARIO COMM. MODULE VA SALT SM.)
Connection:
+ 516130 – CABLE - BR.BOX TO DOSING
(minus)
(plus)
