6. Unit notifications

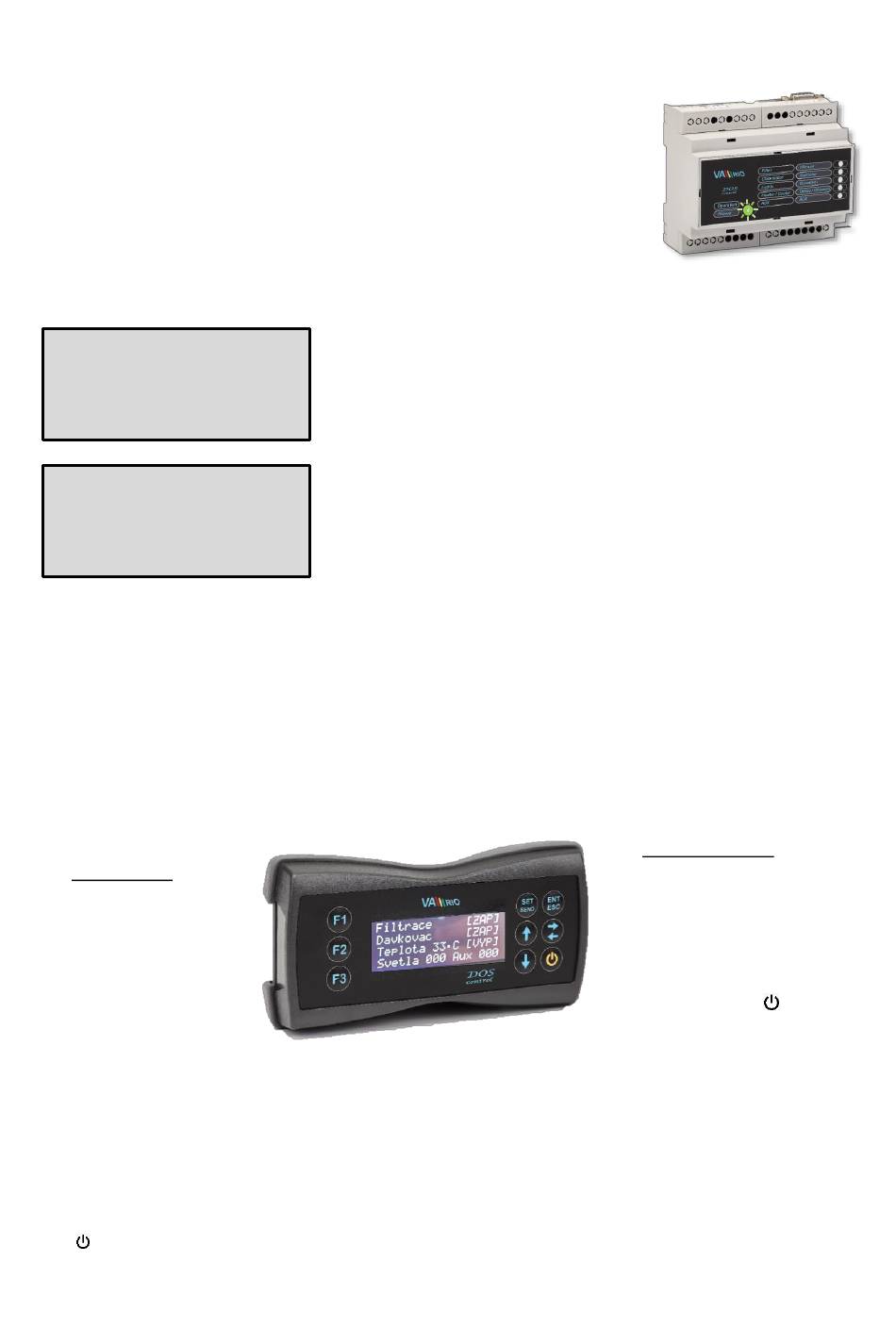

DIN module
The statuses of the individual relay outputs are indicated by green
LEDs (unit active = green LED steady on).
A flashing green LED indicates that the DIN module is under voltage
or communicating with the RC. Rapid flashing indicates ongoing
communication with a dosing station (connected with a cable).
RC module
Statuses of measured parameters and relay outputs are displayed on a 4-line screen.
VArioRC
AerBus II
Verze 3.0
Connecting
0
Filtration
Dosing
Temp 22°C
Lights 014 Atr
7. Unit controls and configuration menu
7.1. Unit controls
The DIN module can be controlled by the RC remote module (using a radio frequency signal).
An overview of all control buttons including configuration commands is listed below.
The F1 / F2 / F3 buttons are pre-programmed for easy access to Lighting / Attraction /
Filtration functions.
Quick access
F1
F2
F3
F1 - By default Lights (ON/Timer 15-240 min / 000 = VYP)
F2 - By default Attraction (Timer 15-120 min / 000 = OFF)
- By default Filtration (AUTO / CL24 "ON with chlorine shock (24 hours)" / manual ON / OFF
F3
SET/SEND - Parameter change / Save changes = send to DIN module
ENT/ESC - Confirm choice / Enter menu / Go back to higher menu
ꓥ - Move up in menu / Increase parameter / Time set – hours
<> - Move to next parameter / Heating - cooling mode / Switch to dosing unit / Paging
ꓦ - Activate item / Move down in menu / Decrease parameter / Time set – minutes
- Sleep mode ON / Wake up / Quick access edit
Default screen after RC start-up (after pressing the "ON" button).
"Connecting" – a connection to the DIN module or dosing
station is being initialized.
Status [ON] - relay contact closed / output active
[ZAP]
Status [OFF] - relay contact closed / output active
[ZAP] Status 22°C - actual water temperature / heating [ON]
Status ??°C - filtration is not active (timer OFF), waiting for filtration ON
[ZAP]
Status Lights "014" - relay contact closed / lights ON with 14 mins remaining
015
Status Atr
"015" - relay contact closed /output ON with 15 mins remaining
Control buttons:
SET ENT
SEND ESC
ꓥ
<>
V
