9. The "Lights-settings" menu allows the user to choose a lights mode:
Select program
Scene
10. The "Dosing" menu allows the user to set the working time of a salt water chlorinator
with regard to total filtration time:
Filtration
Dosing
Time left
Note:
The salinator/dosing unit operation time is directly based on the total filtration time as set in the "AUTO" mode. With filtration
running in any other mode (manual ON/XXCL) this "extra" filtrating time is not calculated in total filtration time used for
dosing.

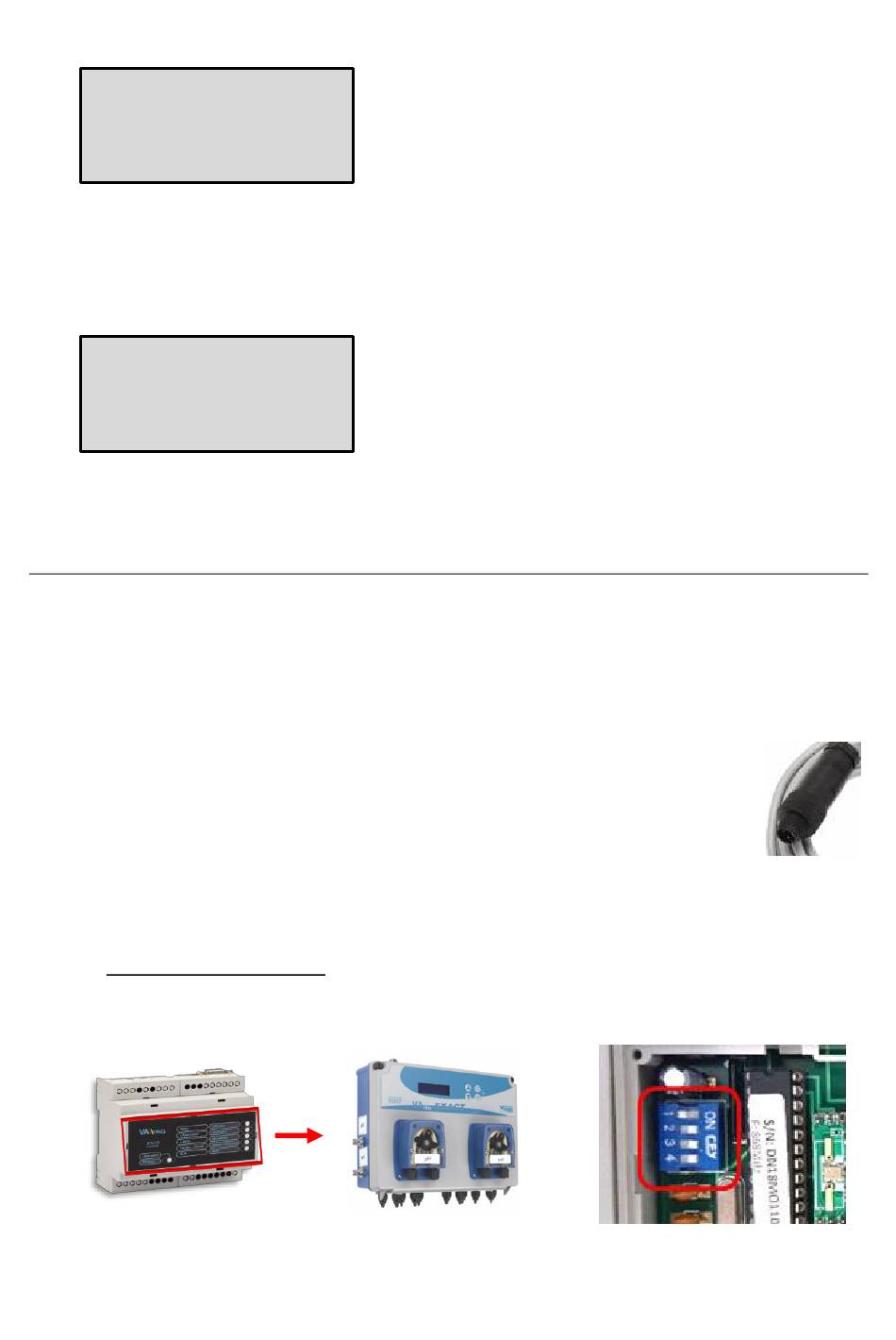

7.5. Controlling the VA DOS dosing Station with RC module
In order to review or modify the pool water parameters and review the operating status of
a dosing station on your RC module, follow these steps:
1. The dosing station must be connected with DIN module by a communication
cable. The instructions below refer to dosing unit VA DOS EXACT (2 "ON" / 3
"ON"),
2. The dosing unit must have the RS485 (ON/Active) communication activated. The setup for
correct communication must be the following:
DIN Module configuration:
Under the DIN module front cover (black) a label shows the required positions of DIP switches
for the connected device = dosing unit (VA DOS EXACT):
f)
g)
h)
i)
01
j)
k)
w)
x)
660min
100%
y)
[660min]
z)
470min
aa) Press "SET/SEND" to confirm and send changes to DIN module,
bb) A "Sending..." message will be displayed.
Select ">Lights-settings" and confirm with "ENT/ESC",
Press "V" to set mode (Scene/Bright/Next/etc.),
Press "ꓥ" to choose mode,
Press "<>" to adjust value (e.g.. Scene – 02/Bright – 50),
Press "SET/SEND" to confirm and send changes to DIN module,
A "Sending..." message will be displayed.
In main menu, select ">Dosing" and press "ENT/ESC" button,
Press "SET/SEND" button to activate the setting mode and set
the salt-chlorination time in % of filtration time,
Pres "V" to decrease the dosing time (1 click = -25%),
Press "ꓥ" to increase the dosing time (1 click = +25%),
