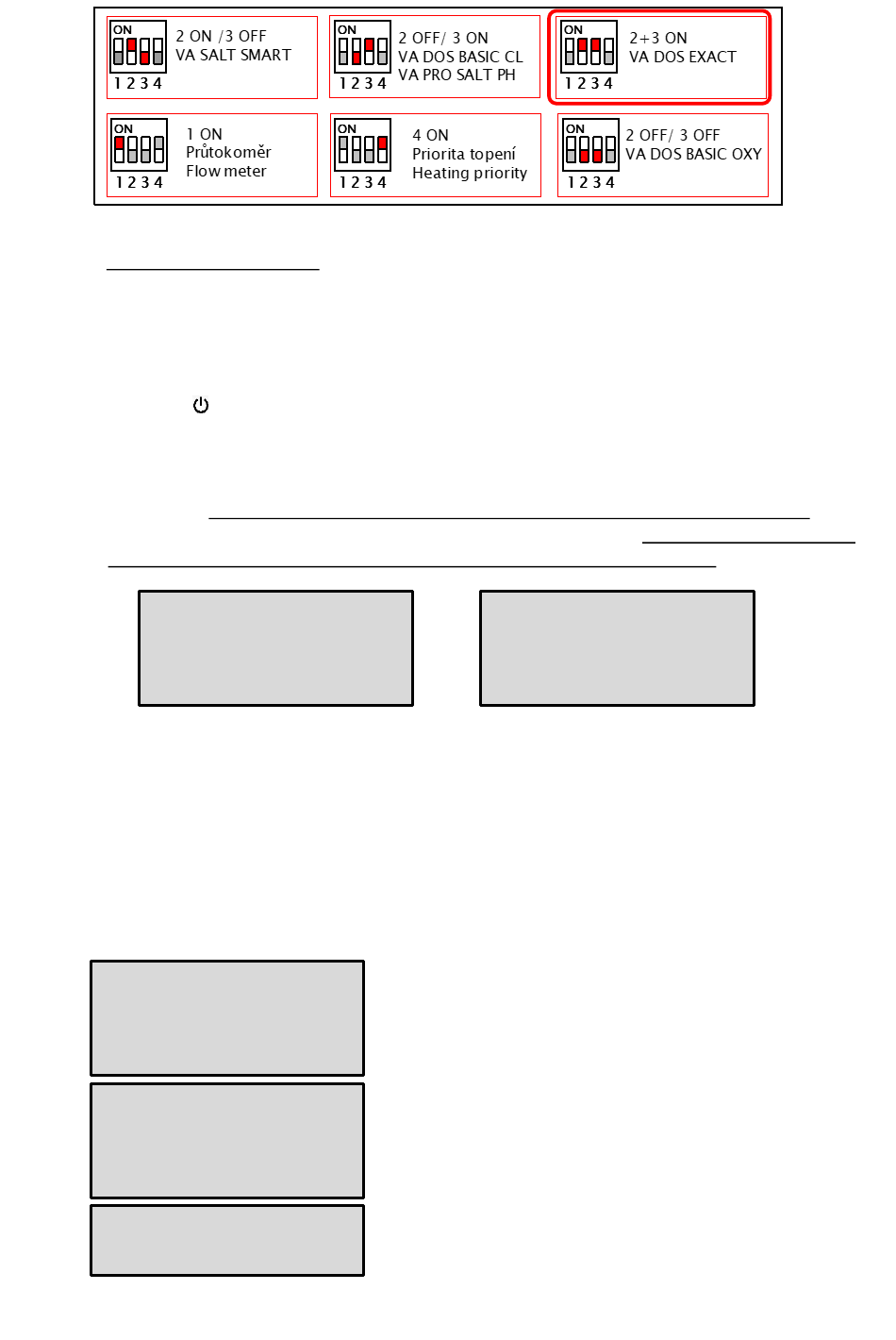

Dosing unit configuration:
VA DOS EXACT – ID: 1, Parity: NO, Speed: 2400, DOA=OFF,
VA DOS BASIC – ID: 2, Parity: NO, Speed: 2400, DOA=OFF,
" "
3.
Press the button to wake the RC module from sleeping mode,
In the default RC screen, press the "<>" button to switch to the dosing unit screen (view could
4.
be changed only if the dosing unit is connected by the communication cable to DIN – for
more details about connection go to section 3 of this manual). If there is no dosing unit
connected to the DIN module, the dosing station screen will not appear !!!
Filtration
Dosing
Temperature22°C
Lights
Note:
The dosing station screen also displays the dosing unit operation statuses: "Operation OK" / or alarms "OFA alarm"
/ "OFA stop". The alarms cannot be deactivated from the RC – they must be reset directly on the dosing station by pressing
the "ENTER/CAL" button.
5.
You may configure certain operating parameters of a connected dosing station form your RC
module. The logic of the dosing unit menu is the same as of DIN module. Press the "V" button
to enter the dosing station main configuration menu:
Setpoint PH
>Setpoint CL
Setpoint RX
AlrBand PH
AlrBand CL
>AlrBand RX
TotalFlow
ResetFlow
Active alarms
>Language
[ZAP]
[ZAP]
[ZAP]
014 Atr
015
a)
b)
c)
d)
PH=7.2
"<>"
CL=0.6ppm
RX=610mV
Operation
OK
Press "V" button to move down in the menu,
Press "ꓥ" button to move up in the menu,
The ">" arrow indicates the selected parameter,
Press the "ENT/ESC" key to enter the selected parameter menu.
Flashing orange rectangle on the display indicates ongoing
information transfer between the DIN/RC modules and the
dosing unit – wait for the communication to finish in order to
change the parameter setting.
