Vagner Pool VArio DIN module Benutzerhandbuch Seite 27

7.6. Controlling the VA SALT SMART chlorinator with RC module
In order to review or modify the pool water parameters and review the operating status
of a saltwater chlorinator on your RC module, follow these steps:

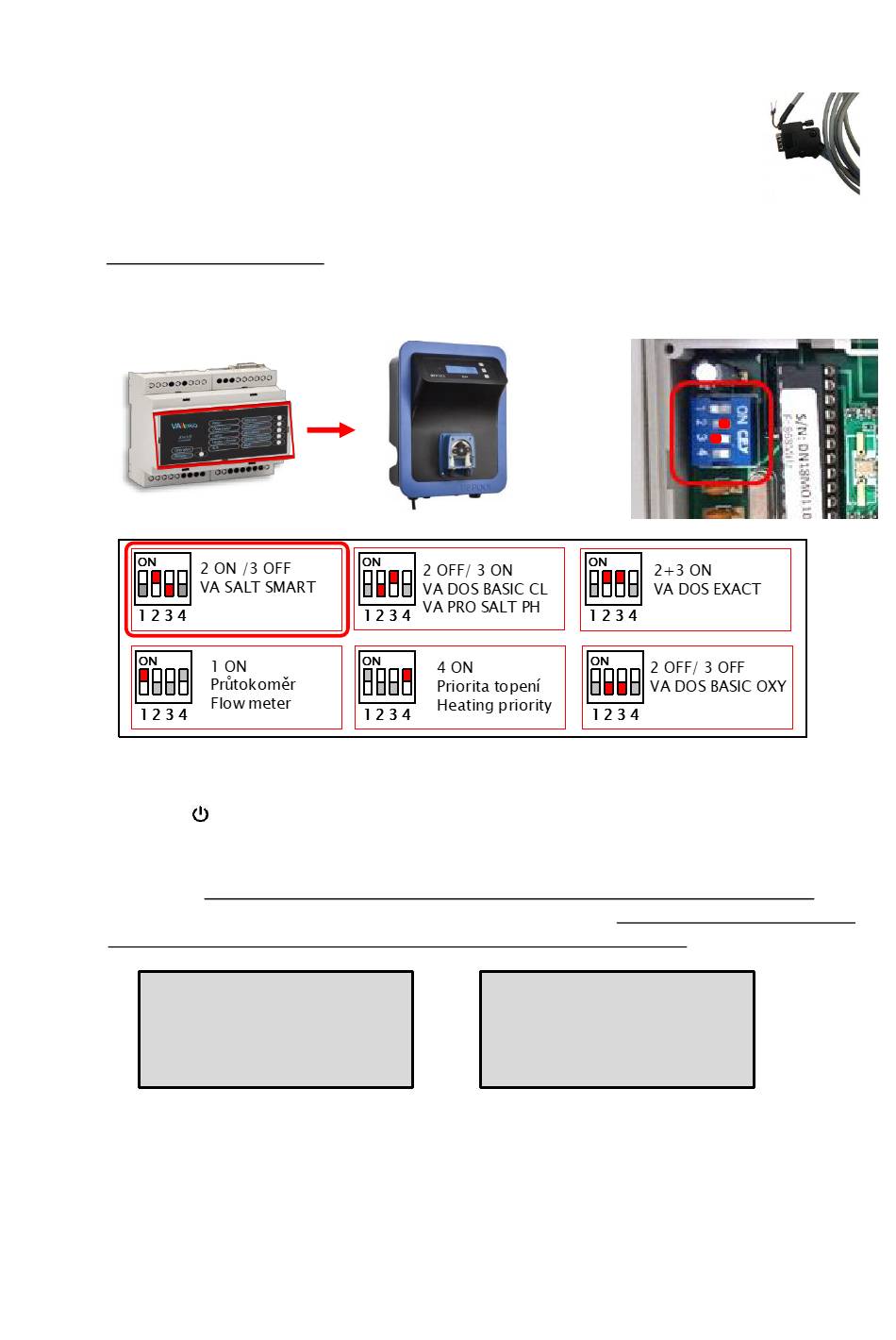

1. Chlorinator must be connected to the DIN module with a communication cable.
The following steps refer to the VA SALT SMART chlorinator (2 "ON" / 3 "OFF"),
DIN module configuration:
Under the DIN module front cover (black) a label shows the required positions of DIP switches
for the connected device = VA SALT SMART.
2. Press the " " button to wake the RC module from sleeping mode,
3. In the default RC screen, press the "<>" button to switch to the chlorinator screen (view could
be changed only if the chlorinator unit is connected by the communication cable to DIN – for
more details about connection go to section 3 of this manual). If there is no chlorinator unit
connected to the DIN module, the chlorinator screen will not appear!!!
Filtration
Dosing
Temp 22°C
Lights 014
Note:
The saltwater chlorinator unit can signalize the operating mode and also alarms/notifications. In case of an alarm, the
alarm can be reset only on the chlorinator unit – not via VArio – by pressing the "OK" button.
[ON]
"<>"
[ON]
[ON]
Atr 015
PH=7.1
RX=610mV
Power
Mode Automat.
Illustrative image
[≤7.2]
[≥700]
25%
11
