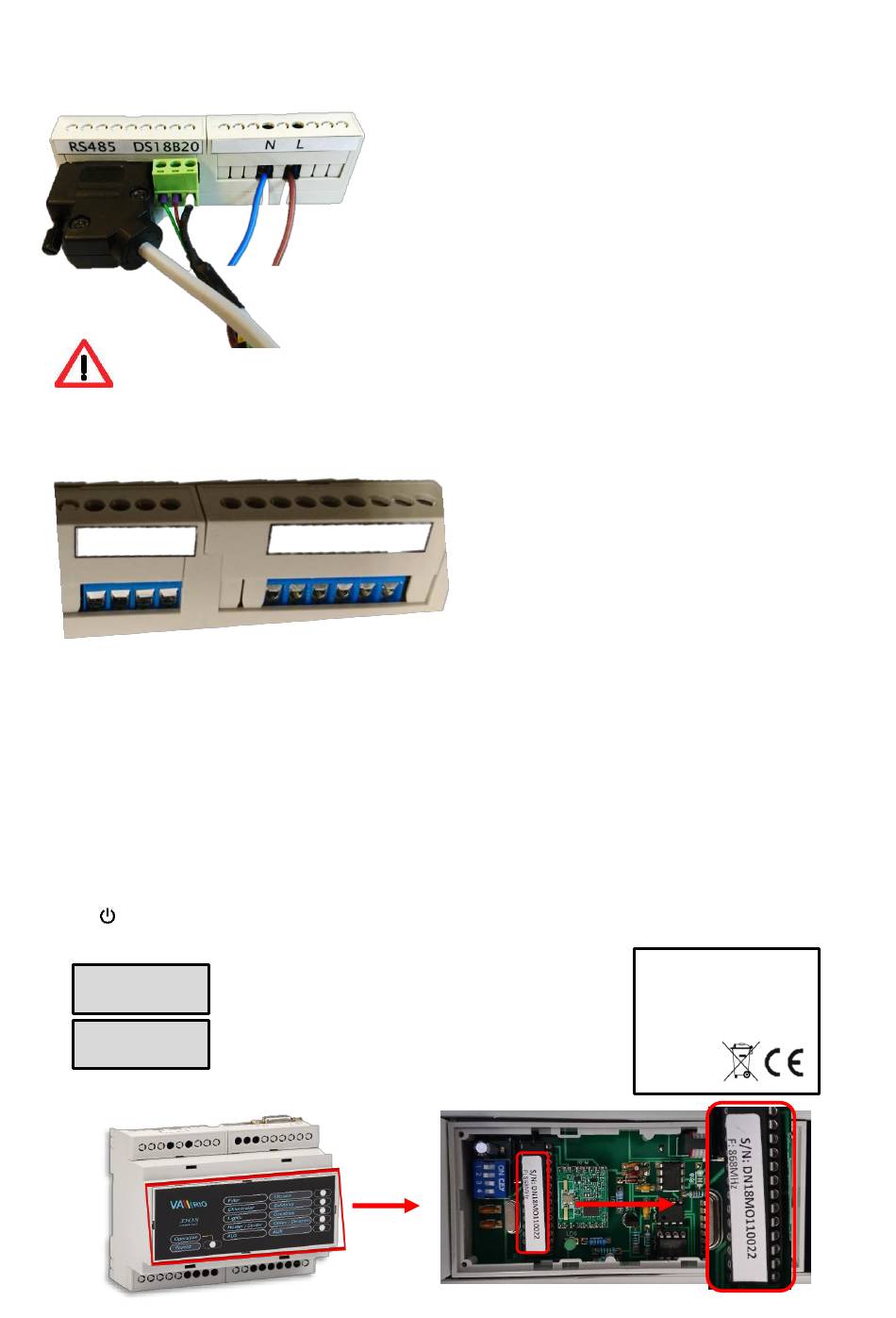

4. Electrical connection

DIN module
RS485
IMPORTANT:
The temperature sensor must be connected, otherwise the DIN Module will not function properly (heating activation,
dosing, operating protections, etc.).
Pre-set relay outputs
1 2 3 4
Note:
The relay connection and suppression of their inductive load diagram is in Section 8, page 11..
5. Pairing the DIN and RC modules
To establish a radio communication between Din and RC modules, both units need to be paired. Required
for pairing is the DIN module serial number – simply input the last 4 digits into the RC module. The DIN
S/N is located on the side label of the DIN module; alternatively, also under the DIN microchip cover.
To access the pairing mode, take the turned-off RC module, press and hold the "F1" button and press
the " " button for at least 3 seconds. The display will light up and „0000" will be displayed.
0000
0022
5 6 7 8 9 10
Using the "V" or"ꓥ" buttons, select the desired
a)
number,
Press "<>" to move to the next digit,
b)
Press "SET/SEND" to confirm changes and pair the
c)
device. The display will switch to normal screen.
- RS485 – Communication cable
(connection to dosing unit)
- Temperature sensor
– ( data / green wire)
D
– (+3,3 V / brown wire)
+
– ( 0,0 V / black or blue wire)
-
- Power supply
– neutral wire
N
– phase wire 230 V
L
– R1 output (Filtration)
- 1/2
– R2 output (Dosing) / (Attraction2)
- 3/4
– R3 output (Lights)
- 5/6
– R4 output (Heating/Cooling)
7/8
-
9/10 – R5 output (Attraction)
-
VÁGNER POOL s.r.o.
DIN Module
S/N:
100-250VAC/50-60Hz
Max. 12W
DN18MO110022
3
