JAROLIFT BAsic Originalmontageanleitung Seite 20

ASSEMBLY

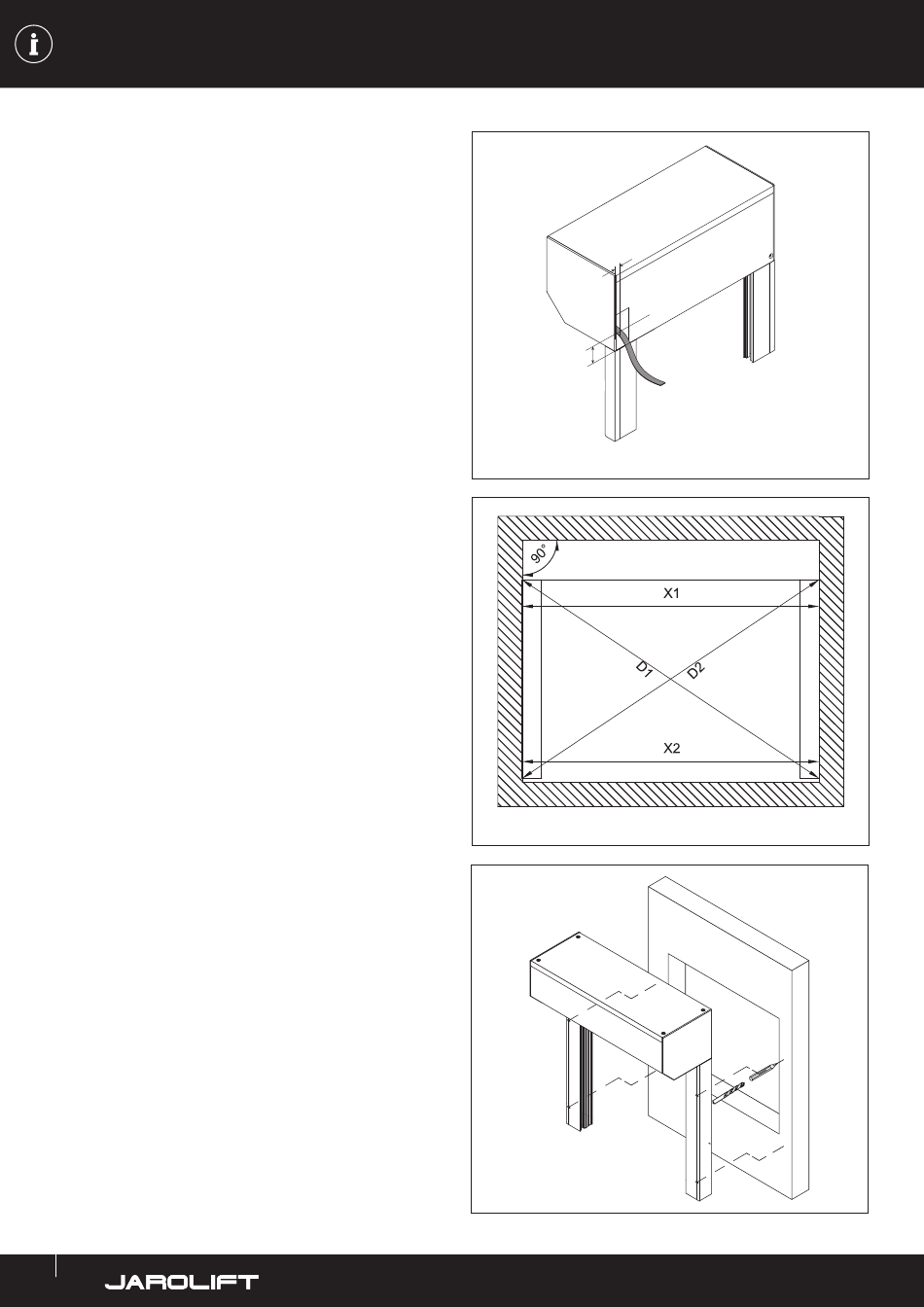

Cutting the rubber strips
(guide rail)
To ensure that the roller shutter curtain runs smoothly, the
rubber strips must be cut to size in the area of the inlet fun-
nels before attaching the roller shutter box (see diagram on
the right).
Align the box and rails
Hold the front-mounted roller shutter against the mounting
surface and align the guide rails as shown in the adjacent
diagram.
Drill mounting points
Transfer the mounting points for the guide rails to the moun-
ting surface!
■
Place the front-mounted roller shutter outside the moun-
ting area!
■
Drill mounting holes (depending on the mounting surfa-
ce)!
■
For masonry, insert dowels (designed for the mounting
surface) into the holes! (Dowels not included in delivery.)
No dowels are required for window installation!
20 20
X
Z
x = x D = D
1 2 1 2
