JAROLIFT BAsic Originalmontageanleitung Seite 21

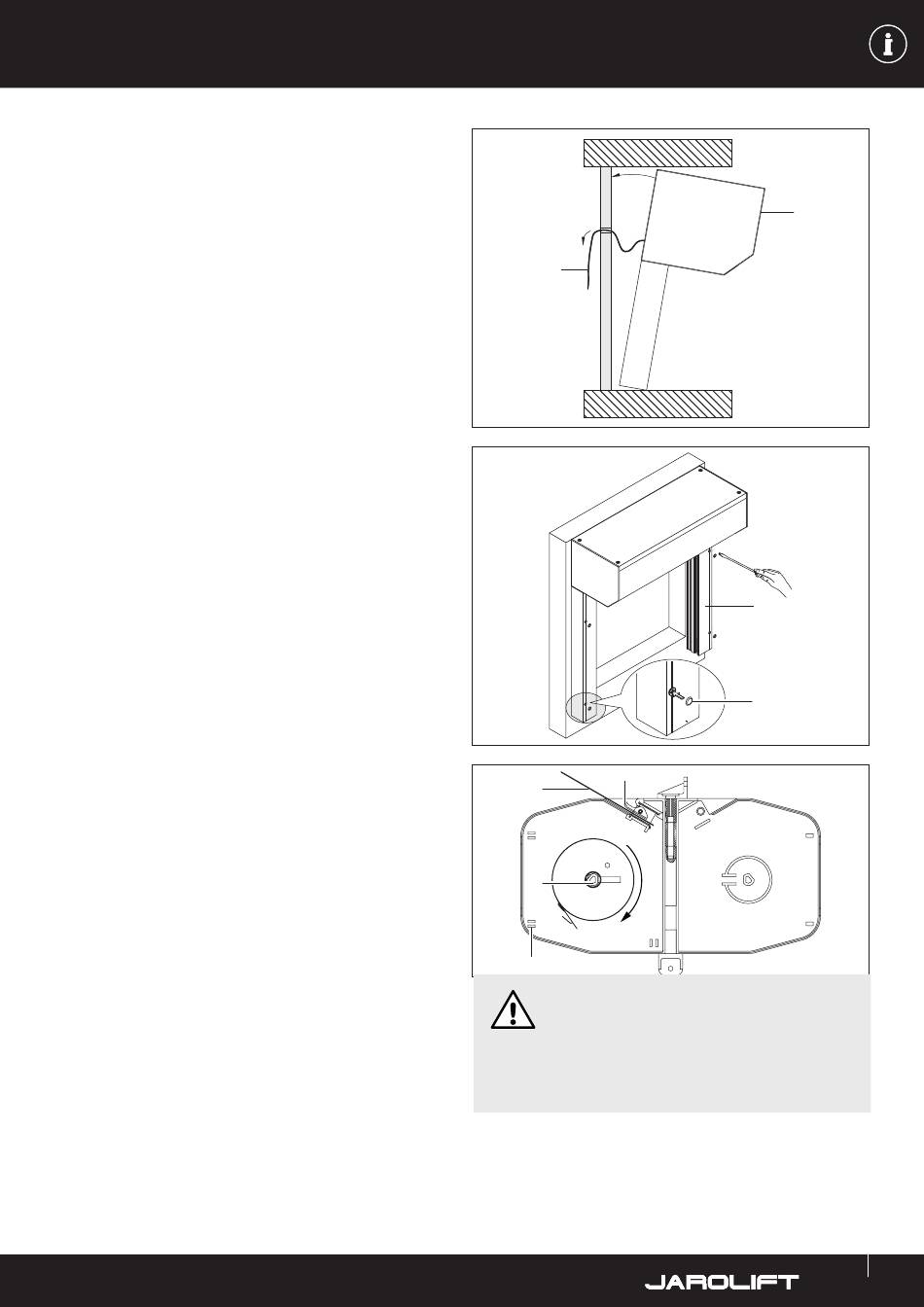

Route the drive output inwards.
■
Place the front-mounted roller shutter (1) in front of the
opening!
■
Route the drive output (2) (belt or power cable without
plug coupling) inwards through the hole!
■
Place the front-mounted roller shutter (1) on the moun-
ting surface! Do not jam the drive output (2) when doing
so.
Attaching the front element
■
Screw the guide rails (1) in place using suitable fasteners
(depending on the mounting surface)!
■
Press the cover caps (2) into the screws with the coun-
tersunk holes(1)! (Only necessary if the guide rails are
attached to the side of the leg.)
NOTE - Align the armor!
Transport may cause the slats to become
misaligned.
Threading the belt winder
■
Open the belt winder.
■
hread the belt (2) through the opening (1)!
■
Attach the belt (2) to the spring housing (3) and press the
locking hook into the spring housing! Hold the belt tight!
■
The belt is now tensioned!
■
Close the belt winder housing!
CAUTION! Snap hooks (4) can break off under increased
pressure.
Electrical connection for roller shut-
ter motor
Please refer to the enclosed instructions for the installed
tubular motor brand for the connection for the pre-assem-
bled electric drive. If you do not have the instructions, simply
contact us at info@jalousiescout.de. We will then send you
the relevant instructions as soon as possible.
2
1
2
3
4
WARNUNG!
The spring of the belt winder is under high
tension. Improper operation poses a high risk
of injury.
ASSEMBLY
1
1
2
