Scope of delivery & Tools required & Assembly

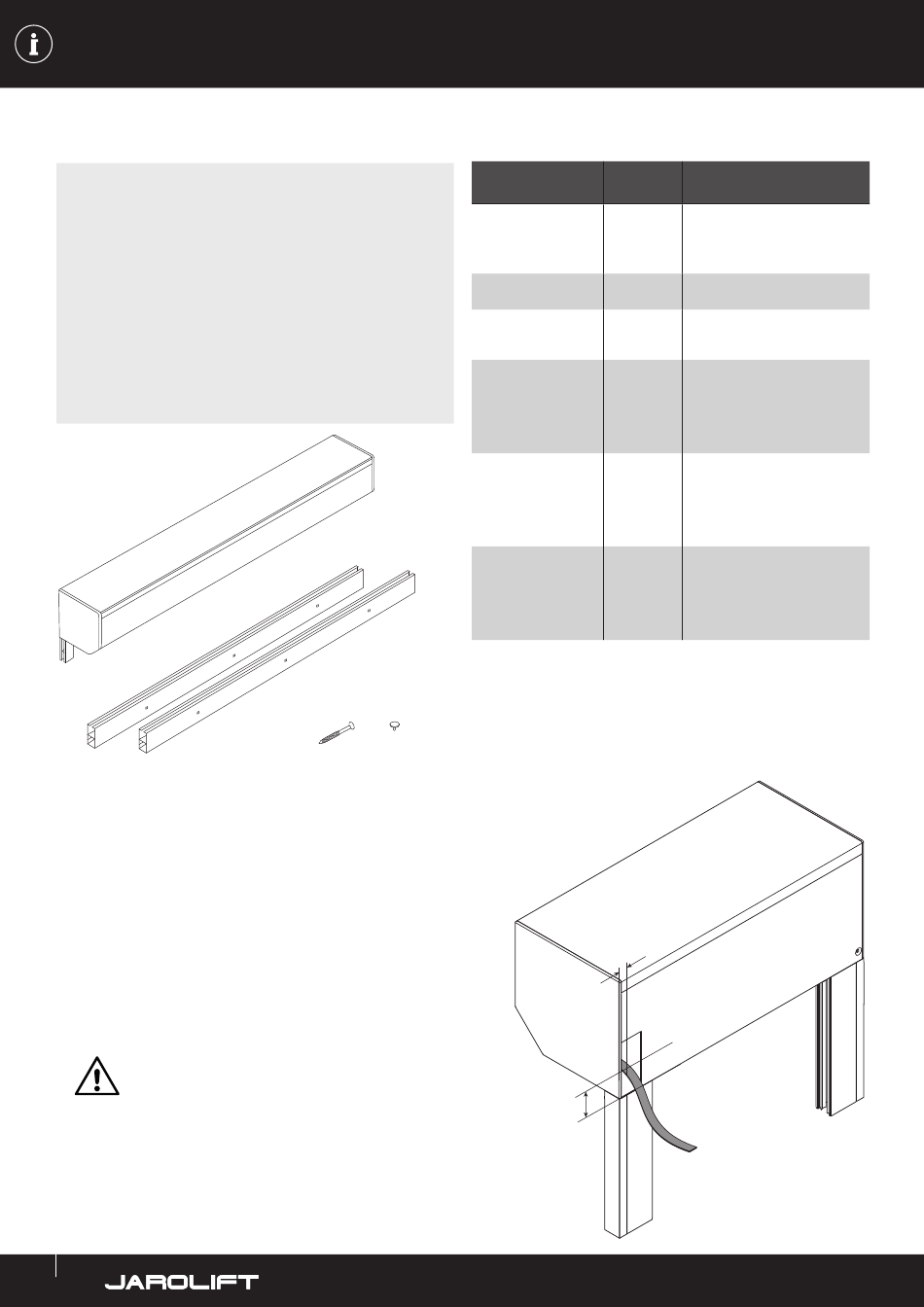

Scope of delivery

Delivery is made in accordance with the invoi-
ce.
NOTE!
■
Check the scope of delivery according to
the delivery note!
■
Check the parts for damage!
■
If any parts are damaged or do not corre-
spond to the order, stop installation and
consult Jalousiescout!
Installation
Transferring the feed-through point to the masonry or
window frame.
The feed-through point for the roller shutter belt, the hexa-
gonal joint bearing for crank operation, or the connection
cable for electric motors must first be transferred to the
masonry or window frame.
To do this, measure the horizontal and vertical center (dimen-
sion X/Z) of the control outlet and transfer this to the installa-
tion surface.
NOTE!
For elements from 3800 mm (+/-) onwards, our
delivery does not include a pre-assembled roller
shutter curtain. This is delivered in a separate
package – see the package insert!
18 18

Required tools

Tools / Size
Aids
Spirit level,
Straight edge,
Hose level
folding ruler
Pencil / Sharpe-
ner Item
Drill including
drill bit
Drill (depending Ø 10,
on substrate) Ø 16,
Ø 22,
Ø 32
Phillips screw-
driver 2er
X
Z
Use
Guide rails
Align
take measurements
Marking
mounting points
Mounting holes in
mounting surface
(depending on mounting
surface)
Drill drive-through hole
(window or masonry)
Attach guide rails, adjust
movable belt guide roller
