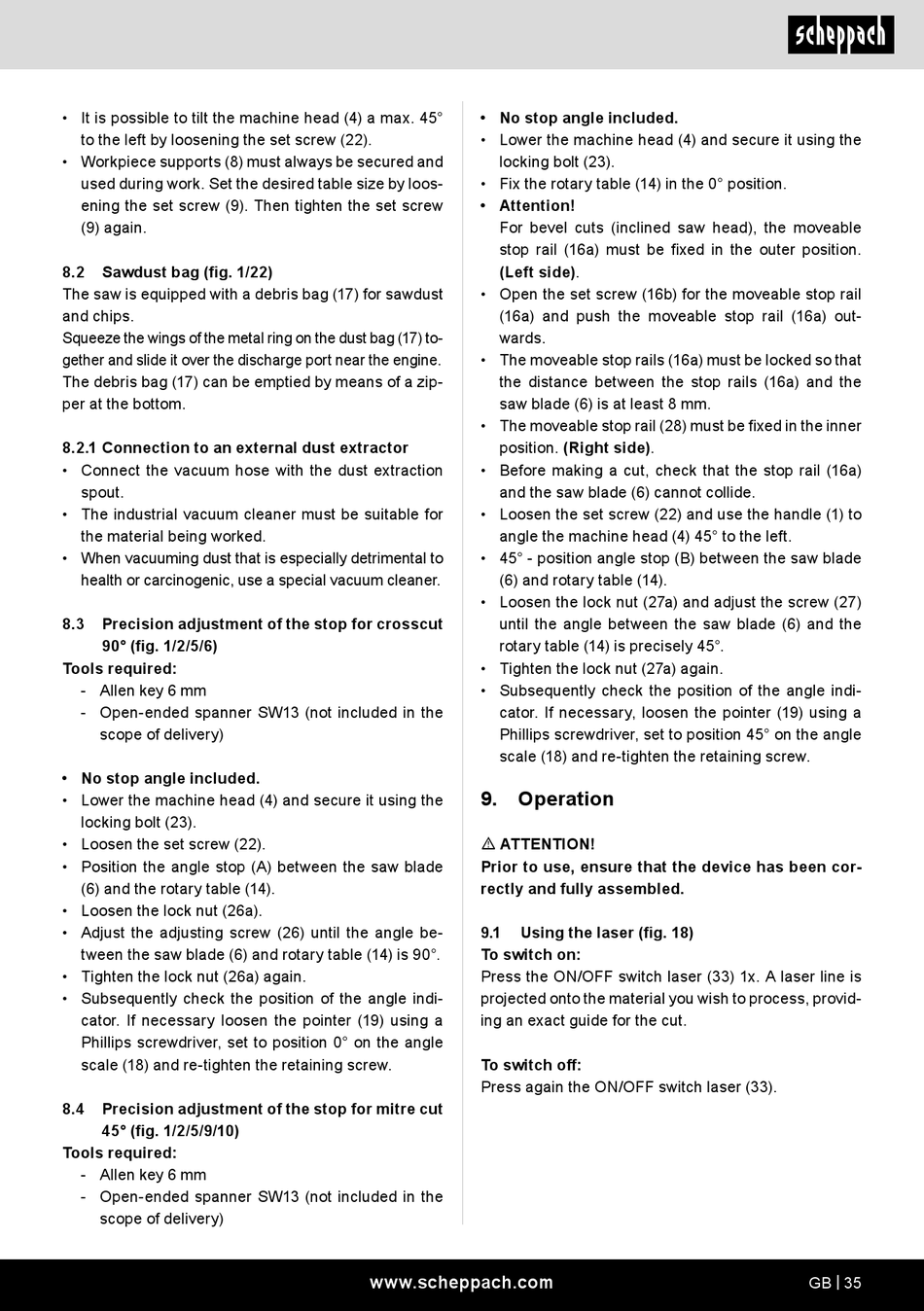

• It is possible to tilt the machine head (4) a max. 45°
to the left by loosening the set screw (22).
• Workpiece supports (8) must always be secured and
used during work. Set the desired table size by loos-
ening the set screw (9). Then tighten the set screw
(9) again.
8.2 Sawdust bag (fig. 1/22)
The saw is equipped with a debris bag (17) for sawdust
and chips.
Squeeze the wings of the metal ring on the dust bag (17) to-
gether and slide it over the discharge port near the engine.
The debris bag (17) can be emptied by means of a zip-
per at the bottom.

8.2.1 Connection to an external dust extractor

• Connect the vacuum hose with the dust extraction
spout.
• The industrial vacuum cleaner must be suitable for
the material being worked.
• When vacuuming dust that is especially detrimental to
health or carcinogenic, use a special vacuum cleaner.
8.3 Precision adjustment of the stop for crosscut
90° (fig. 1/2/5/6)
Tools required:
- Allen key 6 mm
- Open-ended spanner SW13 (not included in the
scope of delivery)
• No stop angle included.
• Lower the machine head (4) and secure it using the
locking bolt (23).
• Loosen the set screw (22).
• Position the angle stop (A) between the saw blade
(6) and the rotary table (14).
• Loosen the lock nut (26a).
• Adjust the adjusting screw (26) until the angle be-
tween the saw blade (6) and rotary table (14) is 90°.
• Tighten the lock nut (26a) again.
• Subsequently check the position of the angle indi-
cator. If necessary loosen the pointer (19) using a
Phillips screwdriver, set to position 0° on the angle
scale (18) and re-tighten the retaining screw.
8.4 Precision adjustment of the stop for mitre cut
45° (fig. 1/2/5/9/10)
Tools required:
- Allen key 6 mm
- Open-ended spanner SW13 (not included in the
scope of delivery)
• No stop angle included.
• Lower the machine head (4) and secure it using the
locking bolt (23).
• Fix the rotary table (14) in the 0° position.
• Attention!
For bevel cuts (inclined saw head), the moveable
stop rail (16a) must be fixed in the outer position.
(Left side).
• Open the set screw (16b) for the moveable stop rail
(16a) and push the moveable stop rail (16a) out-
wards.
• The moveable stop rails (16a) must be locked so that
the distance between the stop rails (16a) and the
saw blade (6) is at least 8 mm.
• The moveable stop rail (28) must be fixed in the inner
position. (Right side).
• Before making a cut, check that the stop rail (16a)
and the saw blade (6) cannot collide.
• Loosen the set screw (22) and use the handle (1) to
angle the machine head (4) 45° to the left.
• 45° - position angle stop (B) between the saw blade
(6) and rotary table (14).
• Loosen the lock nut (27a) and adjust the screw (27)
until the angle between the saw blade (6) and the
rotary table (14) is precisely 45°.
• Tighten the lock nut (27a) again.
• Subsequently check the position of the angle indi-
cator. If necessary, loosen the pointer (19) using a
Phillips screwdriver, set to position 45° on the angle
scale (18) and re-tighten the retaining screw.
9.

Operation

m ATTENTION!
Prior to use, ensure that the device has been cor-
rectly and fully assembled.
9.1 Using the laser (fig. 18)
To switch on:
Press the ON/OFF switch laser (33) 1x. A laser line is
projected onto the material you wish to process, provid-
ing an exact guide for the cut.
To switch off:
Press again the ON/OFF switch laser (33).
