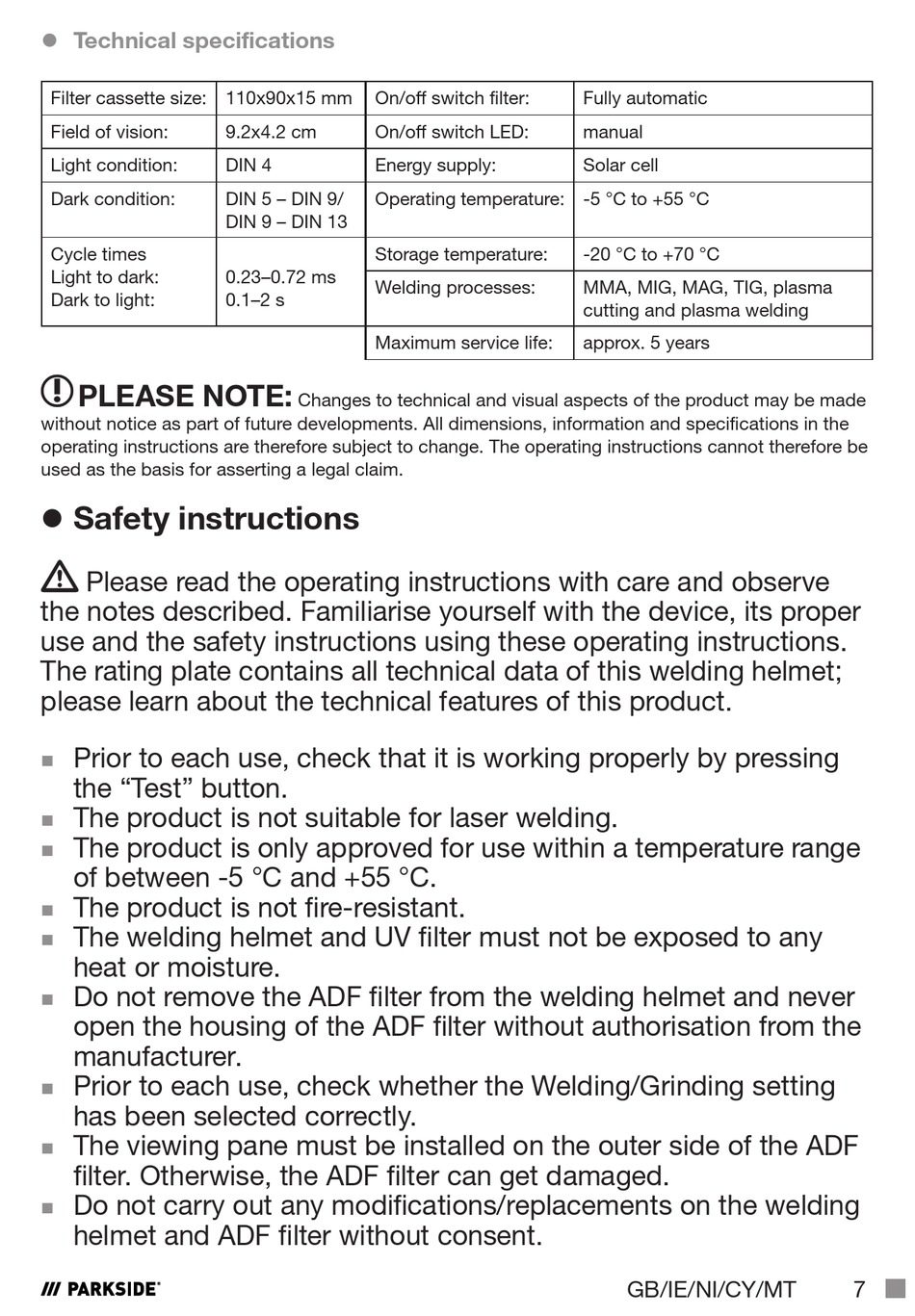

Parkside PSHL 2 D1 Originalbetriebsanleitung Seite 7

z Technical specifications
Filter cassette size: 110x90x15 mm
Field of vision:
Light condition:
Dark condition:
Cycle times
Light to dark:
Dark to light:
PLEASE NOTE:
without notice as part of future developments. All dimensions, information and specifications in the
operating instructions are therefore subject to change. The operating instructions cannot therefore be
used as the basis for asserting a legal claim.
z Safety instructions
Please read the operating instructions with care and observe
the notes described. Familiarise yourself with the device, its proper
use and the safety instructions using these operating instructions.
The rating plate contains all technical data of this welding helmet;
please learn about the technical features of this product.
Prior to each use, check that it is working properly by pressing
„
the "Test" button.
The product is not suitable for laser welding.
„
The product is only approved for use within a temperature range
„
of between -5 °C and +55 °C.
The product is not fire-resistant.
„
The welding helmet and UV filter must not be exposed to any
„
heat or moisture.
Do not remove the ADF filter from the welding helmet and never
„
open the housing of the ADF filter without authorisation from the
manufacturer.
Prior to each use, check whether the Welding/Grinding setting
„
has been selected correctly.
The viewing pane must be installed on the outer side of the ADF
„
filter. Otherwise, the ADF filter can get damaged.
Do not carry out any modifications/replacements on the welding
„
helmet and ADF filter without consent.
On/off switch filter:
9.2x4.2 cm On/off switch LED:
DIN 4 Energy supply:
DIN 5 – DIN 9/ Operating temperature: -5 °C to +55 °C
DIN 9 – DIN 13
Storage temperature:
0.23–0.72 ms
Welding processes:
0.1–2 s
Maximum service life:
Changes to technical and visual aspects of the product may be made
Fully automatic
manual
Solar cell
-20 °C to +70 °C
MMA, MIG, MAG, TIG, plasma
cutting and plasma welding
approx. 5 years
