ATTENTION
Before sealing the guide with the screws:
Check:
1. that the fabric can roll up and unroll properly and

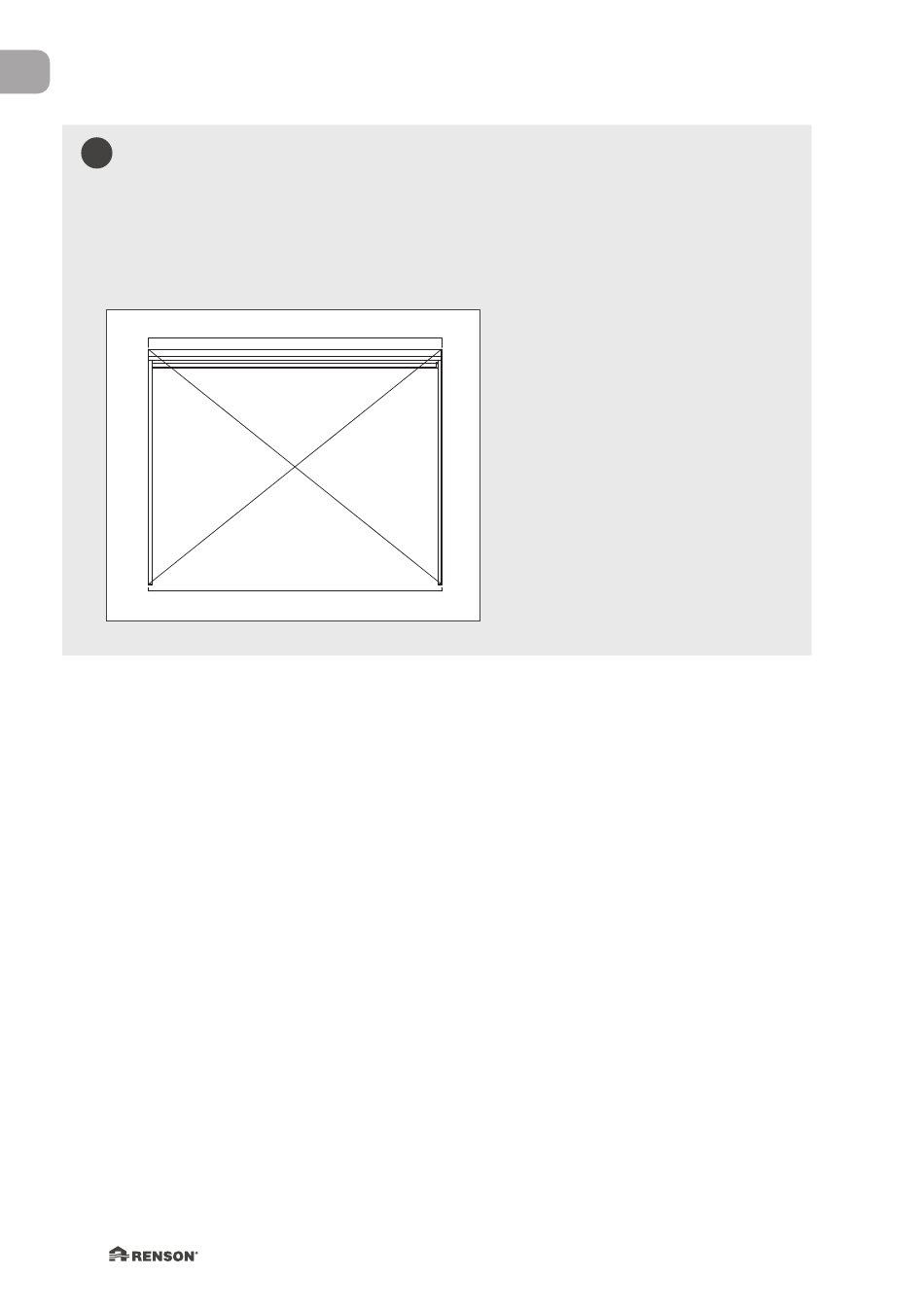

2. the squareness: the diagonals (D1 and D2) and the parallels (H1 and H2) should be
as equal as possible for proper unrolling of the fabric.
28
Go M 7
H1
D2
D1
H2
D1 = D2 and H1 = H2
