3.2 • Mounting of the head box
!
PLEASE NOTE
Our production ensures that the bottom bar is as close as possible to the head box.
This ensures that the closing of the side guiding channel will go smoothly.
Make sure the bottom bar stays in this position.
The bottom bar is removable. In some situations, this will make mounting the side
guiding channel easier.
Watch the video:
Position the head box and side guiding channels according to the chosen installation
method.
TIP
After placing the head box on the fixed profile
sure it is straight using the spirit level before proceeding.
3.3 • Mounting the side guiding channels
Secure the side guiding channels to the window profile or against the construction.
These screws are not included.
26
Go M 7

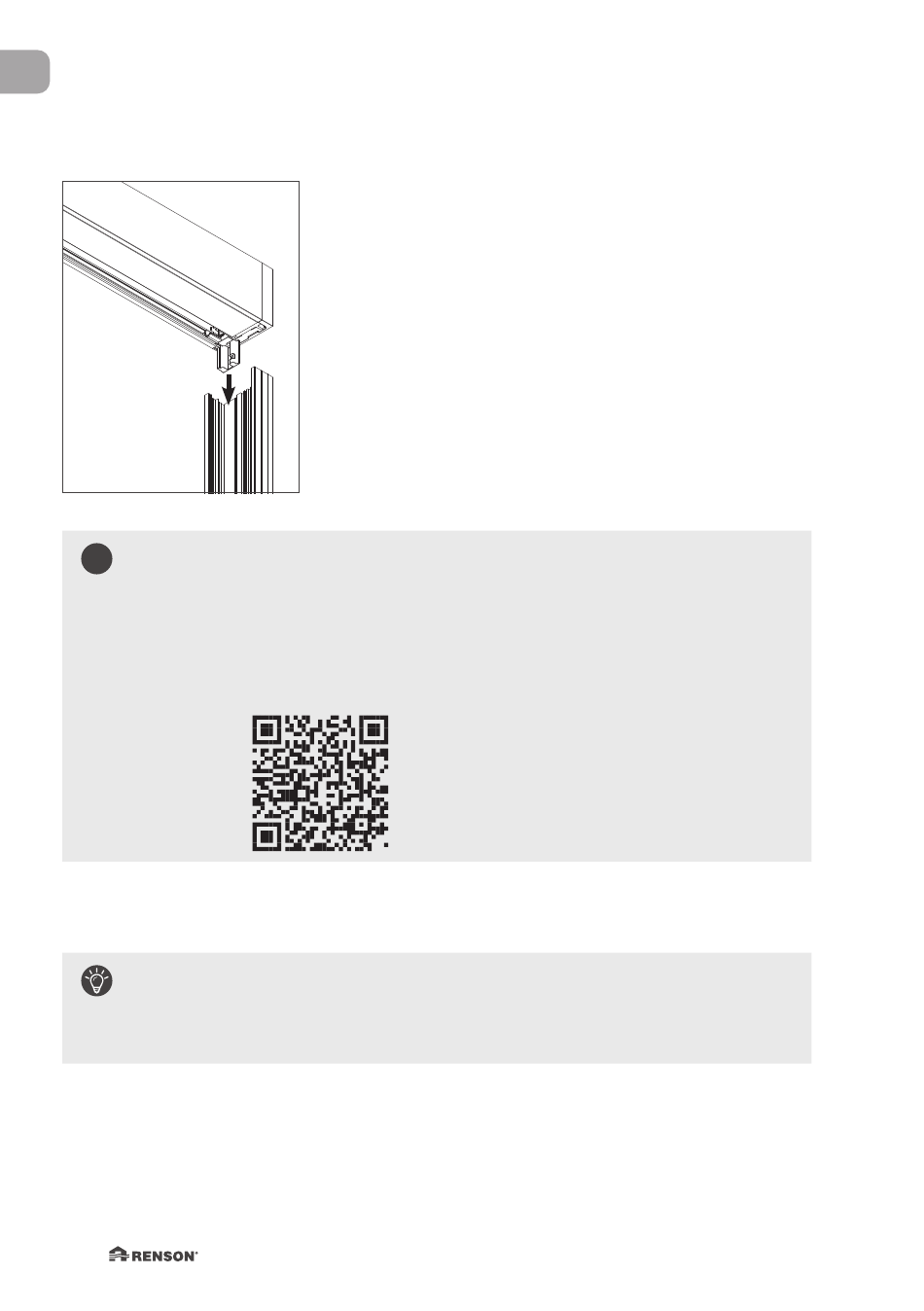

Place the head box on the fixed profile
guiding channel.
It is not necessary to secure the head box to the
construction. Securing the pins of the side support in the
side guiding channel is sufficient.
If the side guiding channels and head box are pre-mounted
on the window frame, the side guiding channel can be
fixed to the pin of the side support with a self-drilling
screw. This screw is not included.
of the side guiding channel, make
➀
of the side
➀
