Demounting the side guiding channel
Use a T20 Torx wrench to unscrew the removable profile
of the side guiding channel.
➁
The screw can be partially loosened and remain in the
removable profile of the side guiding channel.

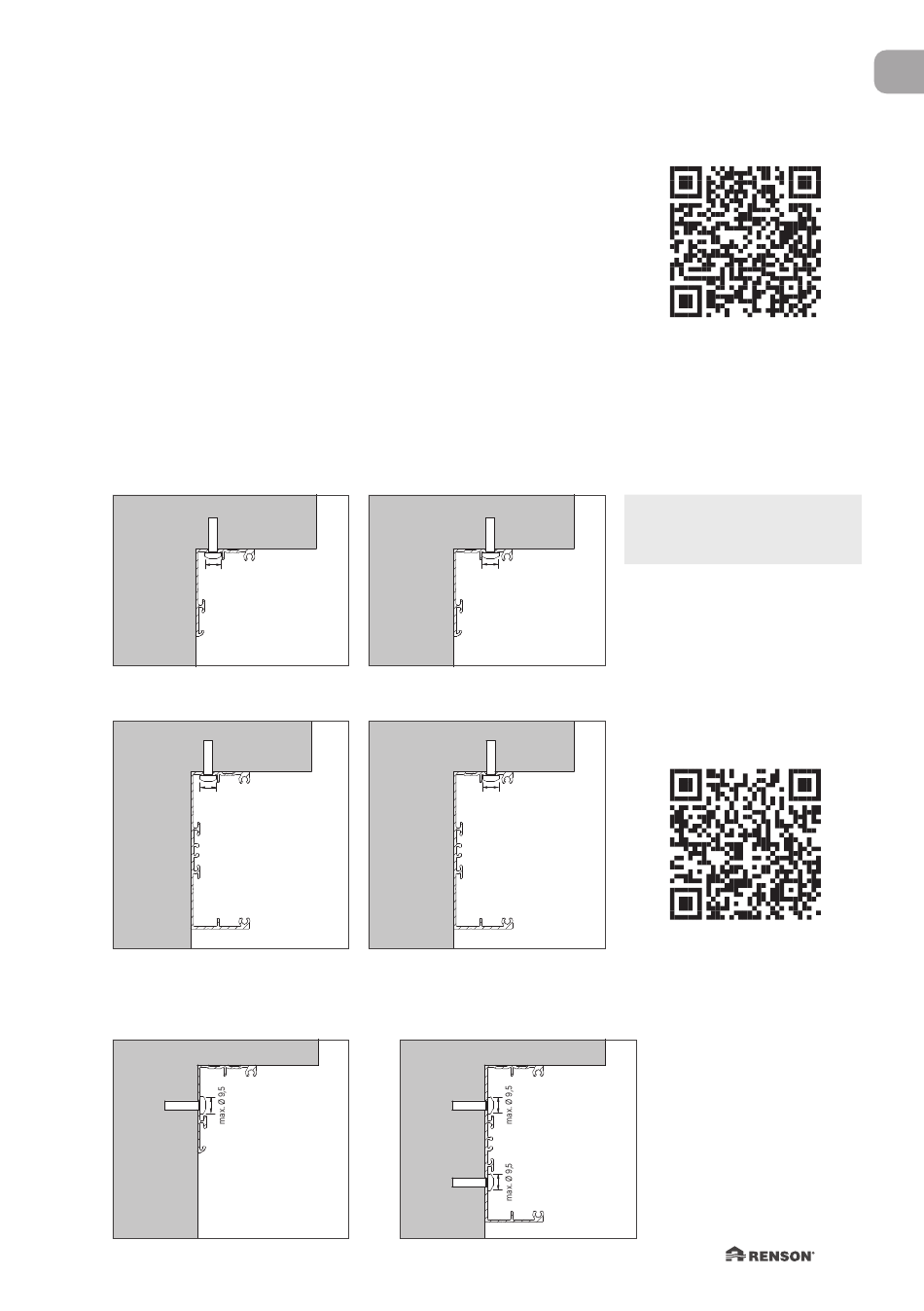

Drilling the fixed profile of the side guiding channel:
There are 2 screw positions for optimal fastening on
different types of windows (ALU / PVC / ....). Both positions
are indicated on the drawings.
MONTAGE OP RAAM (ALU) MONTAGE OP RAAM (ALU)
There are 2 options for mounting the side guiding channel:
MONTAGE OP RAAM (ALU) MONTAGE OP RAAM (ALU)
1. Mounting of side guiding channel through the backside, against the window
• Narrow side guiding channel
max. Ø 9,5 max. Ø 9,5
max. Ø 9,5 max. Ø 9,5
• Deep side guiding channel
max. Ø 9,5 max. Ø 9,5
max. Ø 9,5 max. Ø 9,5
MONTAGE OP ZIJKANT
2. Mounting of the side guiding channel sideaways, against the construction
• Narrow side guiding channel
Side mounting
MONTAGE OP RAAM (PVC) MONTAGE OP RAAM (PVC)
MONTAGE OP RAAM (PVC) MONTAGE OP RAAM (PVC)
max. Ø 9,5 max. Ø 9,5
max. Ø 9,5 max. Ø 9,5
MONTAGE OP ZIJKANT
max. Ø 9,5 max. Ø 9,5
max. Ø 9,5 max. Ø 9,5
• Deep side guiding channel
Side mounting
Fixscreen Go M 7
®
Watch the video:
Max. height of the
screw head = 4 mm
Watch the video:
For a deep side
guiding channel with
mounting sideways,
1 screw is sufficient,
placed according to the
position of the fabric.
The drawing shows
both possibilities.
