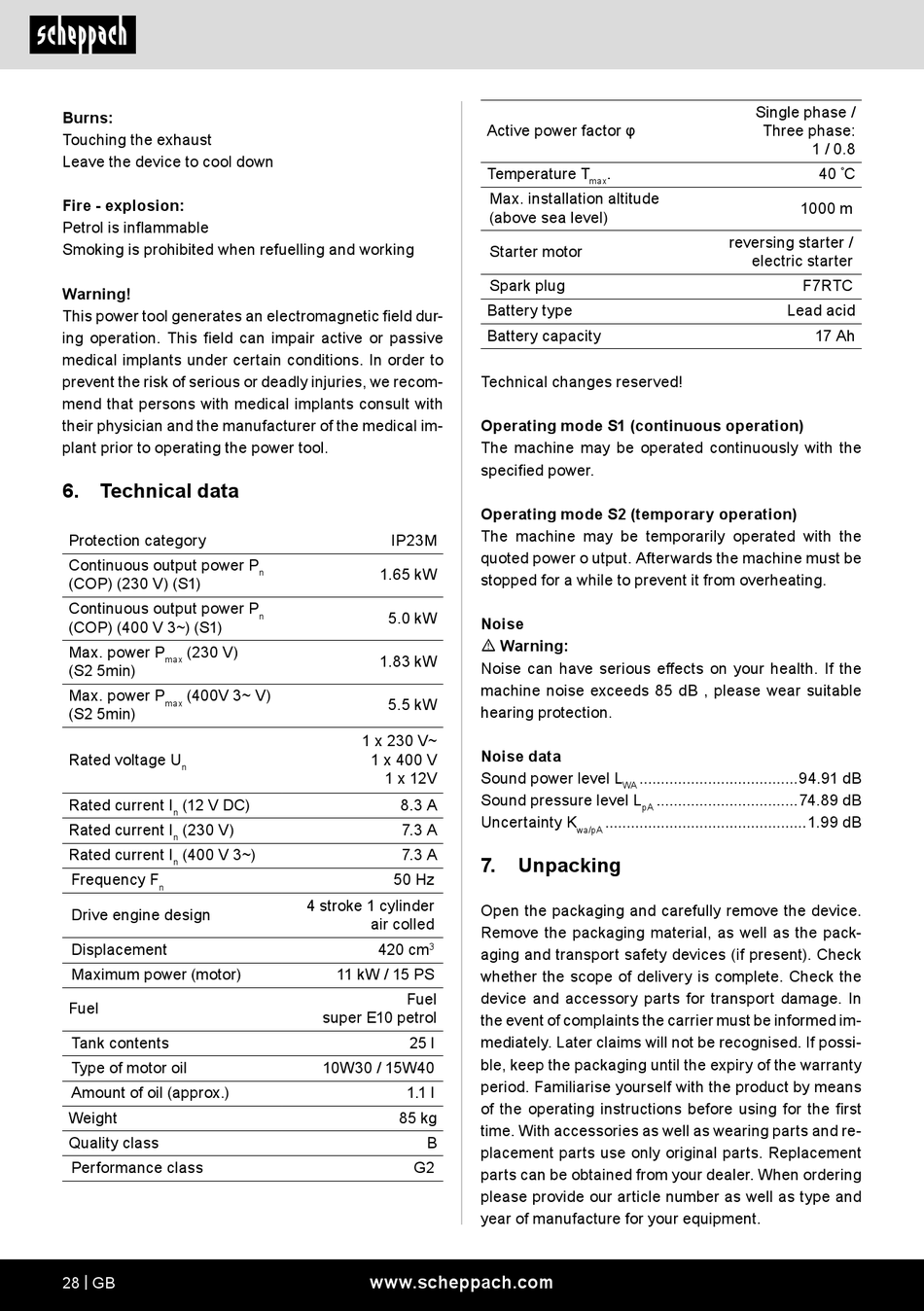

Scheppach SG7100 Original Bedienungsanleitung Seite 28

Burns:
Touching the exhaust
Leave the device to cool down
Fire - explosion:
Petrol is inflammable
Smoking is prohibited when refuelling and working
Warning!
This power tool generates an electromagnetic field dur-
ing operation. This field can impair active or passive
medical implants under certain conditions. In order to
prevent the risk of serious or deadly injuries, we recom-
mend that persons with medical implants consult with
their physician and the manufacturer of the medical im-
plant prior to operating the power tool.
6. Technical data
Protection category
Continuous output power P
(COP) (230 V) (S1)
Continuous output power P
(COP) (400 V 3~) (S1)
Max. power P (230 V)
max
(S2 5min)
Max. power P (400V 3~ V)
max
(S2 5min)
Rated voltage U
n
Rated current I (12 V DC)
n
Rated current I (230 V)
n
Rated current I (400 V 3~)
n
Frequency F
n
Drive engine design
Displacement
Maximum power (motor)
Fuel
Tank contents
Type of motor oil
Amount of oil (approx.)
Weight
Quality class
Performance class
28 | GB
IP23M
1.65 kW
n
5.0 kW
n
1.83 kW
5.5 kW
1 x 230 V~
1 x 400 V
1 x 12V
8.3 A
7.3 A
7.3 A
50 Hz
4 stroke 1 cylinder
air colled
420 cm
3
11 kW / 15 PS
Fuel
super E10 petrol
25 l
10W30 / 15W40
1.1 l
85 kg
B
G2
www.scheppach.com
Active power factor φ
Temperature T .
max
Max. installation altitude
(above sea level)
Starter motor
Spark plug
Battery type
Battery capacity
Technical changes reserved!
Operating mode S1 (continuous operation)
The machine may be operated continuously with the
specified power.
Operating mode S2 (temporary operation)
The machine may be temporarily operated with the
quoted power o utput. Afterwards the machine must be
stopped for a while to prevent it from overheating.
Noise
m Warning:
Noise can have serious effects on your health. If the
machine noise exceeds 85 dB , please wear suitable
hearing protection.
Noise data
Sound power level L .....................................94.91 dB
WA
Sound pressure level L
pA
Uncertainty K ...............................................1.99 dB
wa/pA
7. Unpacking
Open the packaging and carefully remove the device.
Remove the packaging material, as well as the pack-
aging and transport safety devices (if present). Check
whether the scope of delivery is complete. Check the
device and accessory parts for transport damage. In
the event of complaints the carrier must be informed im-
mediately. Later claims will not be recognised. If possi-
ble, keep the packaging until the expiry of the warranty
period. Familiarise yourself with the product by means
of the operating instructions before using for the first
time. With accessories as well as wearing parts and re-
placement parts use only original parts. Replacement
parts can be obtained from your dealer. When ordering
please provide our article number as well as type and
year of manufacture for your equipment.
Single phase /
Three phase:
1 / 0.8
40
1000 m
reversing starter /
electric starter
F7RTC
Lead acid
17 Ah
................................. 74.89 dB
C
°
