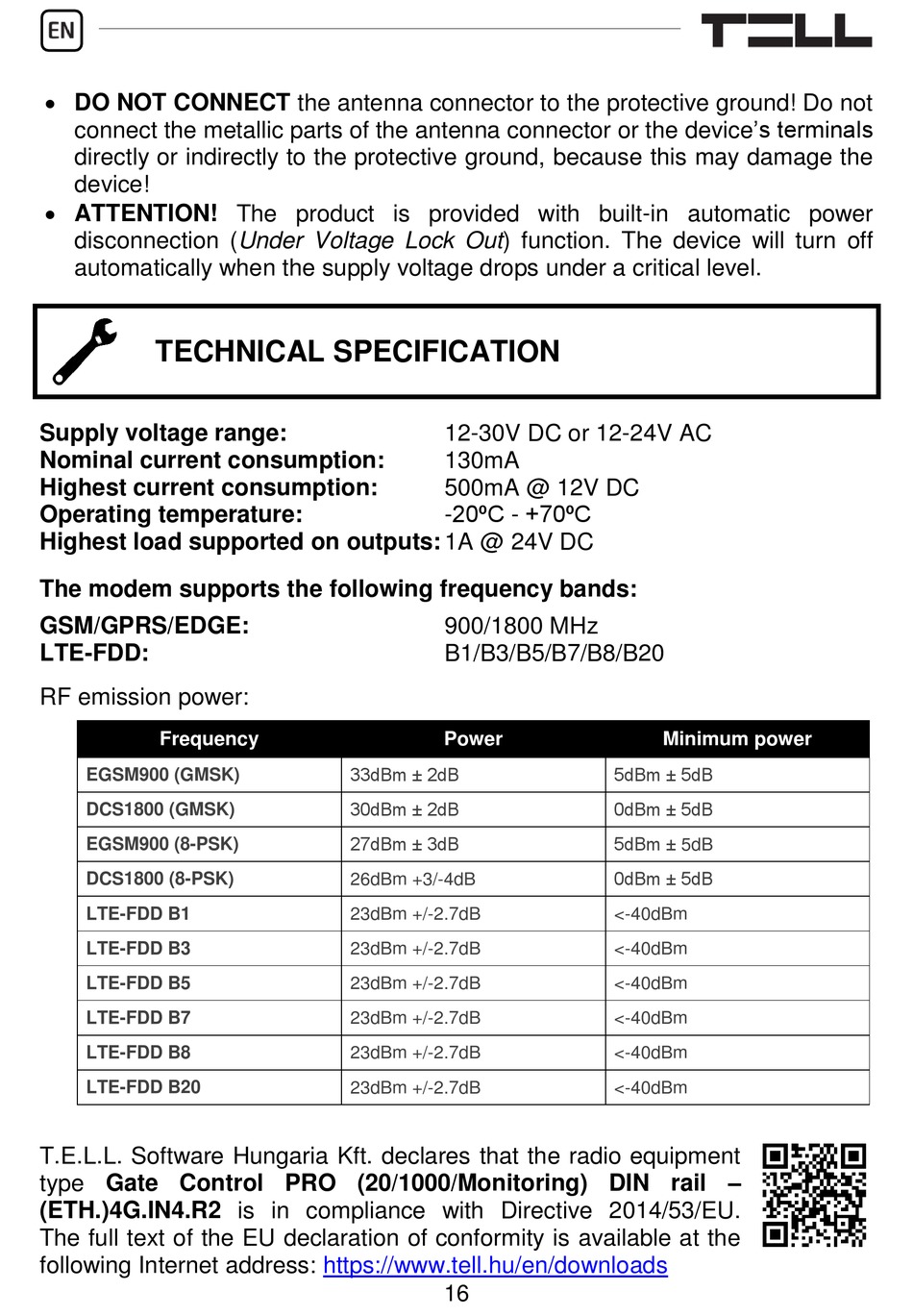

tell Gate Control PRO 20 Schnellinstallationsanweisung Für Installateure Seite 16

 DO NOT CONNECT the antenna connector to the protective ground! Do not
connect the metallic parts of the antenna connector or the device's terminals
directly or indirectly to the protective ground, because this may damage the
device!
 ATTENTION! The product is provided with built-in automatic power
disconnection (Under Voltage Lock Out) function. The device will turn off
automatically when the supply voltage drops under a critical level.
TECHNICAL SPECIFICATION
Supply voltage range:
Nominal current consumption:
Highest current consumption:
Operating temperature:
Highest load supported on outputs: 1A @ 24V DC
The modem supports the following frequency bands:
GSM/GPRS/EDGE:
LTE-FDD:
RF emission power:
Frequency
EGSM900 (GMSK)
DCS1800 (GMSK)
EGSM900 (8-PSK)
DCS1800 (8-PSK)
LTE-FDD B1
LTE-FDD B3
LTE-FDD B5
LTE-FDD B7
LTE-FDD B8
LTE-FDD B20
T.E.L.L. Software Hungaria Kft. declares that the radio equipment
type Gate Control PRO (20/1000/Monitoring) DIN rail –
(ETH.)4G.IN4.R2 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the
following Internet address:
12-30V DC or 12-24V AC
130mA
500mA @ 12V DC
-20ºC - +70ºC
900/1800 MHz
B1/B3/B5/B7/B8/B20
Power
33dBm ± 2dB
30dBm ± 2dB
27dBm ± 3dB
26dBm +3/-4dB
23dBm +/-2.7dB
23dBm +/-2.7dB
23dBm +/-2.7dB
23dBm +/-2.7dB
23dBm +/-2.7dB
23dBm +/-2.7dB
https://www.tell.hu/en/downloads
16
Minimum power
5dBm ± 5dB
0dBm ± 5dB
5dBm ± 5dB
0dBm ± 5dB
<-40dBm
<-40dBm
<-40dBm
<-40dBm
<-40dBm
<-40dBm
