Gate Control PRO - DIN rail – Quick Guide
Control mode 4:
- For single-gate automations that require triggers for opening and closing on
different inputs.
- Opening and then closing by a single call/control command.
- Both outputs are in an idle state by default and are activated when controlled.
- The opening trigger signal is provided by output OUT1, and the closing trigger
signal is provided by output OUT2.
- Holding the gate locked in an open state permanently on a second call/control
command.
- The gate position limit switch can be connected to input IN3.
Control mode 5:
- For single-gate automations that require triggers for opening and closing on
different inputs.
- Opening and then closing by separate calls/control commands.
- Both outputs are in an idle state by default and are activated when controlled.
- The opening trigger signal is provided by output OUT1, and the closing trigger
signal is provided by output OUT2.
- The gate position limit switch can be connected to input IN3.
Wiring diagrams:

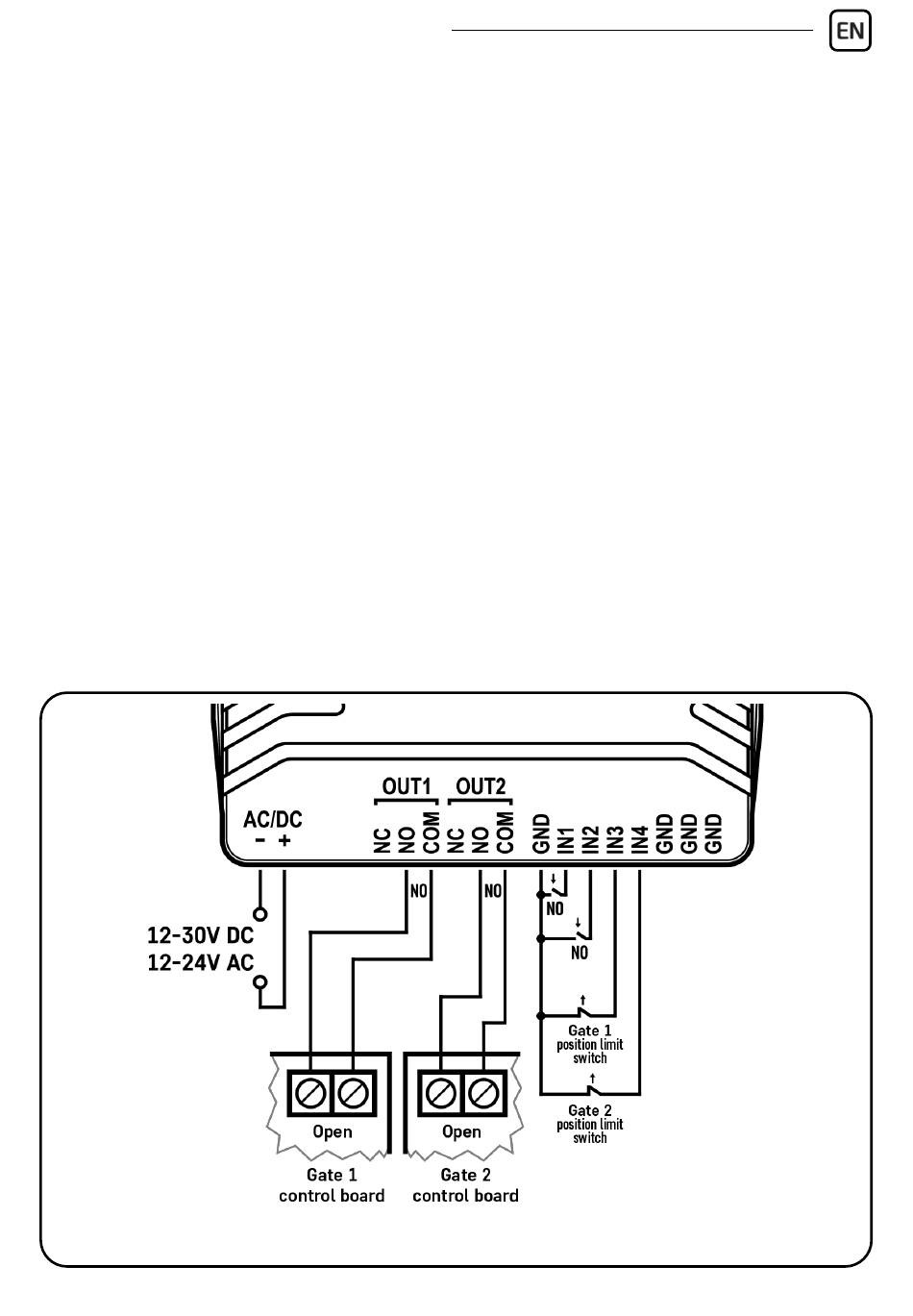

Control modes 1 and 2: Wiring for one or two gates with position limit switch
