DIGITAL VIDEO RECORDER
1

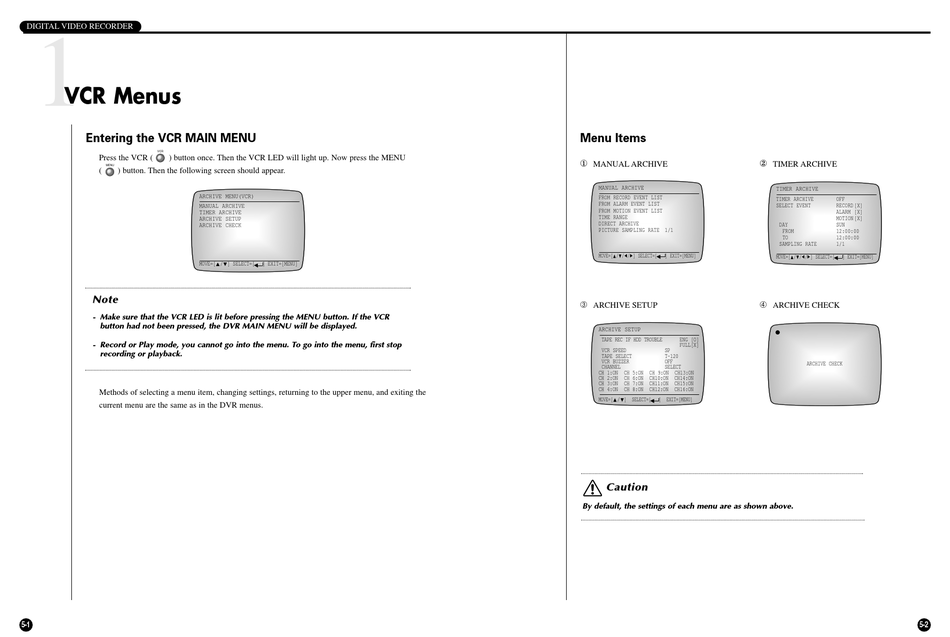

VCR Menus

Entering the VCR MAIN MENU
VCR
Press the VCR ( ) button once. Then the VCR LED will light up. Now press the MENU
MENU
( ) button. Then the following screen should appear.
ARCHIVE MENU(VCR)
MANUAL ARCHIVE
TIMER ARCHIVE
ARCHIVE SETUP
ARCHIVE CHECK
MOVE=[ /
Note
Note
- Make sure that the VCR LED is lit before pressing the MENU button. If the VCR
button had not been pressed, the DVR MAIN MENU will be displayed.
- Record or Play mode, you cannot go into the menu. To go into the menu, first stop
recording or playback.
Methods of selecting a menu item, changing settings, returning to the upper menu, and exiting the
current menu are the same as in the DVR menus.
5-1
❷ ] SELECT=[ ] EXIT=[MENU]

Menu Items

MANUAL ARCHIVE
MANUAL ARCHIVE
FROM RECORD EVENT LIST
FROM ALARM EVENT LIST
FROM MOTION EVENT LIST
TIME RANGE
DIRECT ARCHIVE
PICTURE SAMPLING RATE 1/1
MOVE=[ / ❷ / ➛ / ❿ ] SELECT=[ ] EXIT=[MENU]
ARCHIVE SETUP
ARCHIVE SETUP
TAPE REC IF HDD TROUBLE ENG [O]
FULL[X]
VCR SPEED SP
TAPE SELECT T-120
VCR BUZZER OFF
CHANNEL SELECT
CH 1:ON CH 5:ON CH 9:ON CH13:ON
CH 2:ON CH 6:ON CH10:ON CH14:ON
CH 3:ON CH 7:ON CH11:ON CH15:ON
CH 4:ON CH 8:ON CH12:ON CH16:ON
MOVE=[ / ❷ ] SELECT=[ ] EXIT=[MENU]
Caution Caution
By default, the settings of each menu are as shown above.
TIMER ARCHIVE
TIMER ARCHIVE
TIMER ARCHIVE OFF
SELECT EVENT RECORD [X]
ALARM [X]
MOTION [X]
DAY SUN
FROM 12:00:00
TO 12:00:00
SAMPLING RATE 1/1
MOVE=[ / ❷ / ➛ / ❿ ] SELECT=[ ] EXIT=[MENU]
ARCHIVE CHECK
ARCHIVE CHECK
5-2
