6. V2X connection
The V2X subport (vechile-to-X) is used to connect a V2X module developed by SolaX. For
more details about it, refer to the corresponding user manual.

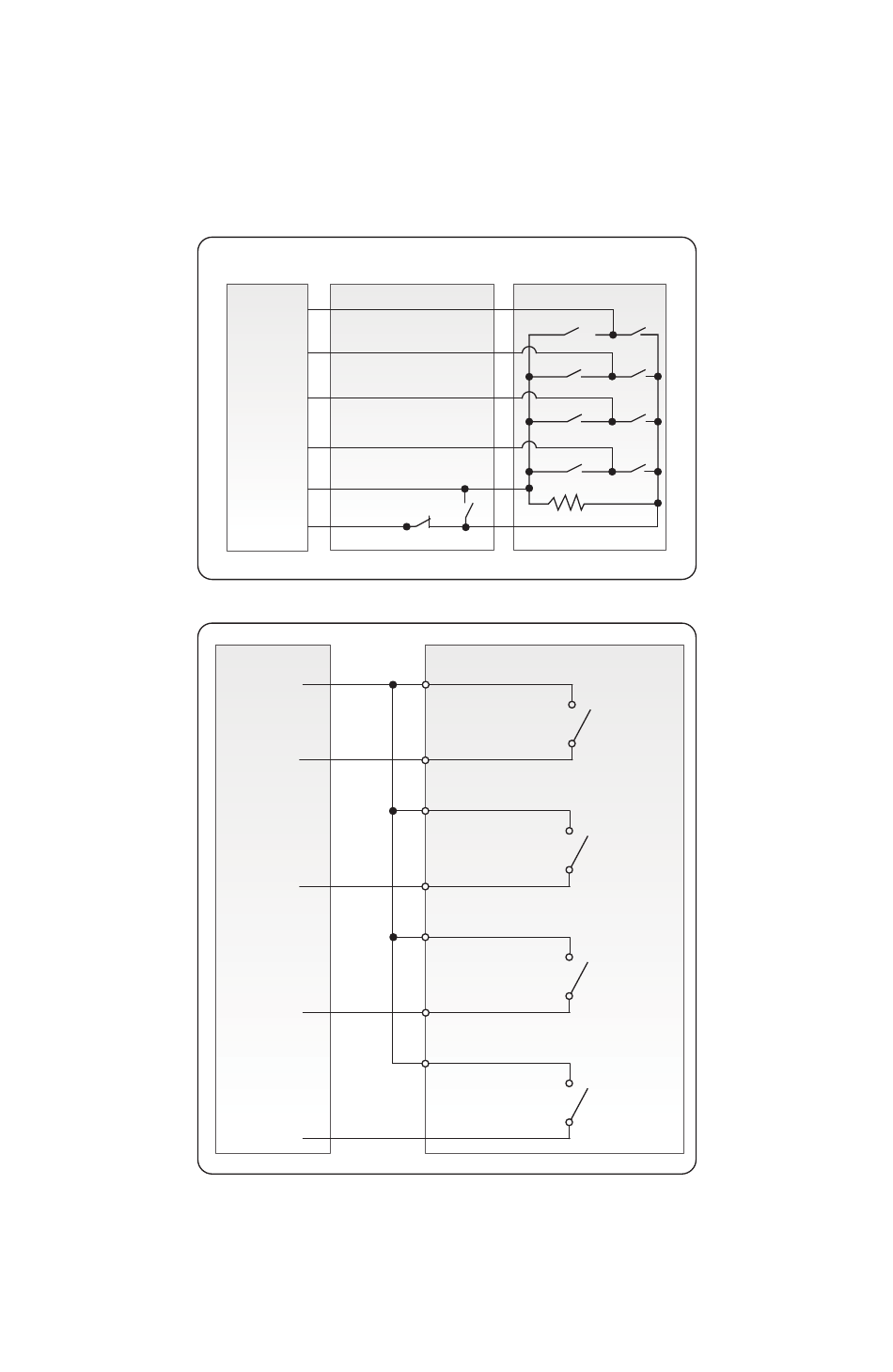

7. DRM & Ripple Control
• DRM
• Ripple control
Subport DRM
DRM1/5
DRM2/6
DRM3/7
DRM4/8
+3.3V_COM
COM/DRM0
Suport DRM
COM/DRM0
DRM1/5
DRM2/6
DRM3/7
DRM4/8
DRED
S5
S6
S7
S8
15K
S9
S0
RCR
S1
S2
S3
S4
S1
S2
S3
S4
