SolaX Power X3-HYB-G4 PRO Installationsanleitung Seite 72

2. Meter/CT connection

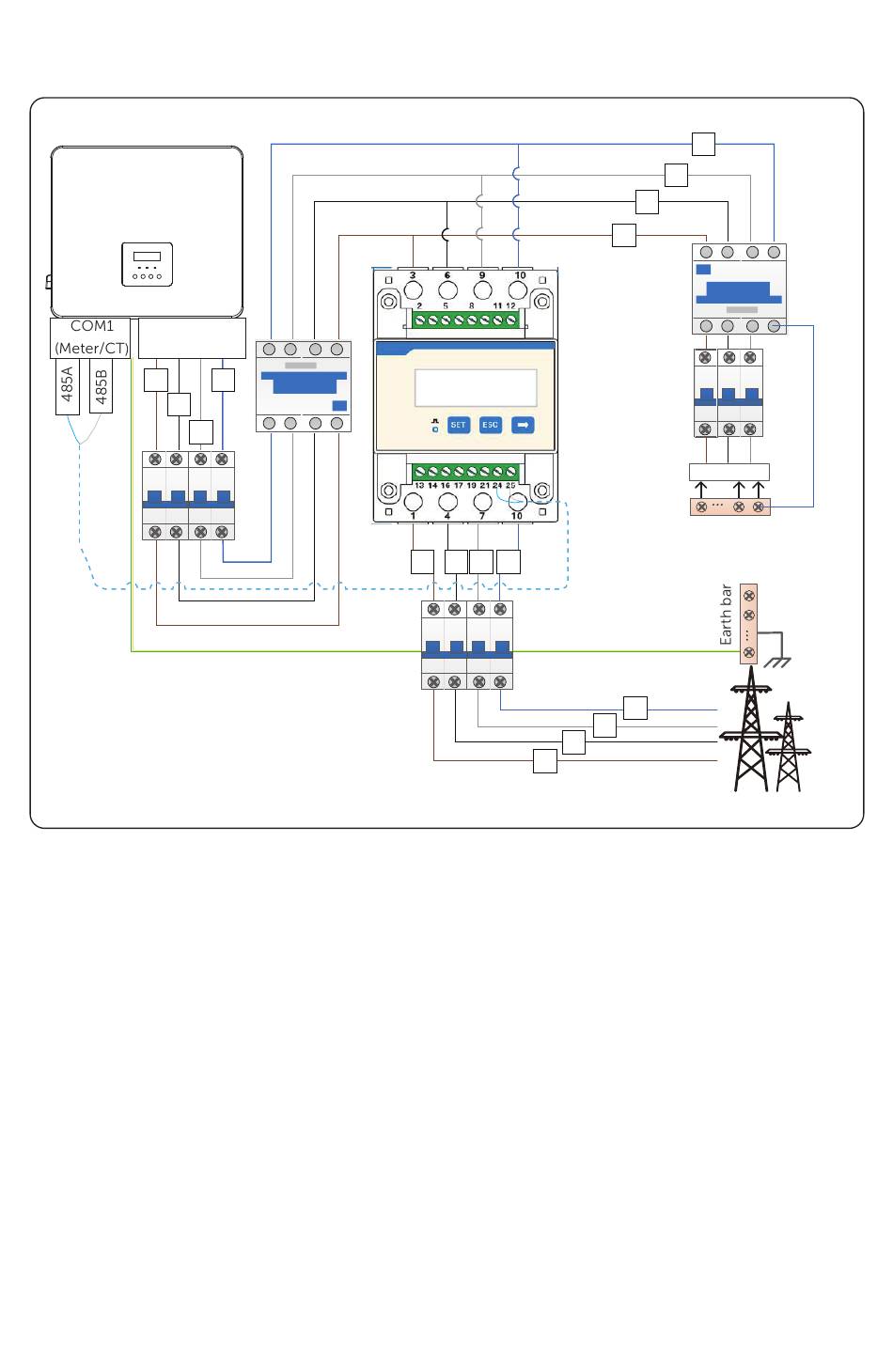

• Wiring diagram of connecting a direct-connected meter
N
L3
L2
Inverter
L1
RCD
Out
Grid
L1 N
L2
RCD(optional)
L3
Load
In
Neutral bus bar
L1 L2 L3 N
N
L3
L2
L1
Grid
66
