Grid and EPS Connection / Netz- und EPS-Verbindung / Branchement Réseau et EPS
/ Conexión de red y EPS / Ligação à Rede e Off-grid / Aansluiting op het net en EPS /
Collegamento GRID e EPS / Połączenie z siecią i EPS / Připojení k síti a EPS / Elnäts-
och EPS-anslutning / Conectare la rețea și EPS / Връзка с мрежата и аварийното
захранване / Elnet- og EPS-tilslutning / Σύνδεση στο δίκτυο και σε Σύστημα
ηλεκτρικής ενέργειας (EPS) / Võrgu- ja EPS-ühendus / Verkon ja EPS:n liitäntä /
Priključak mreže i EPS priključak / Rácsos és EPS bekötés / Tinklo ir EPS jungtis / Tīkla
un EPS savienojums / Pripojenie do siete a k núdzovému napájaniu EPS / Povezava z
omrežjem in EPS zasilno napajanje / Şebeke ve EPS Bağlantı / Conexão de Rede e EPS
4-6 or 6 mm
cable

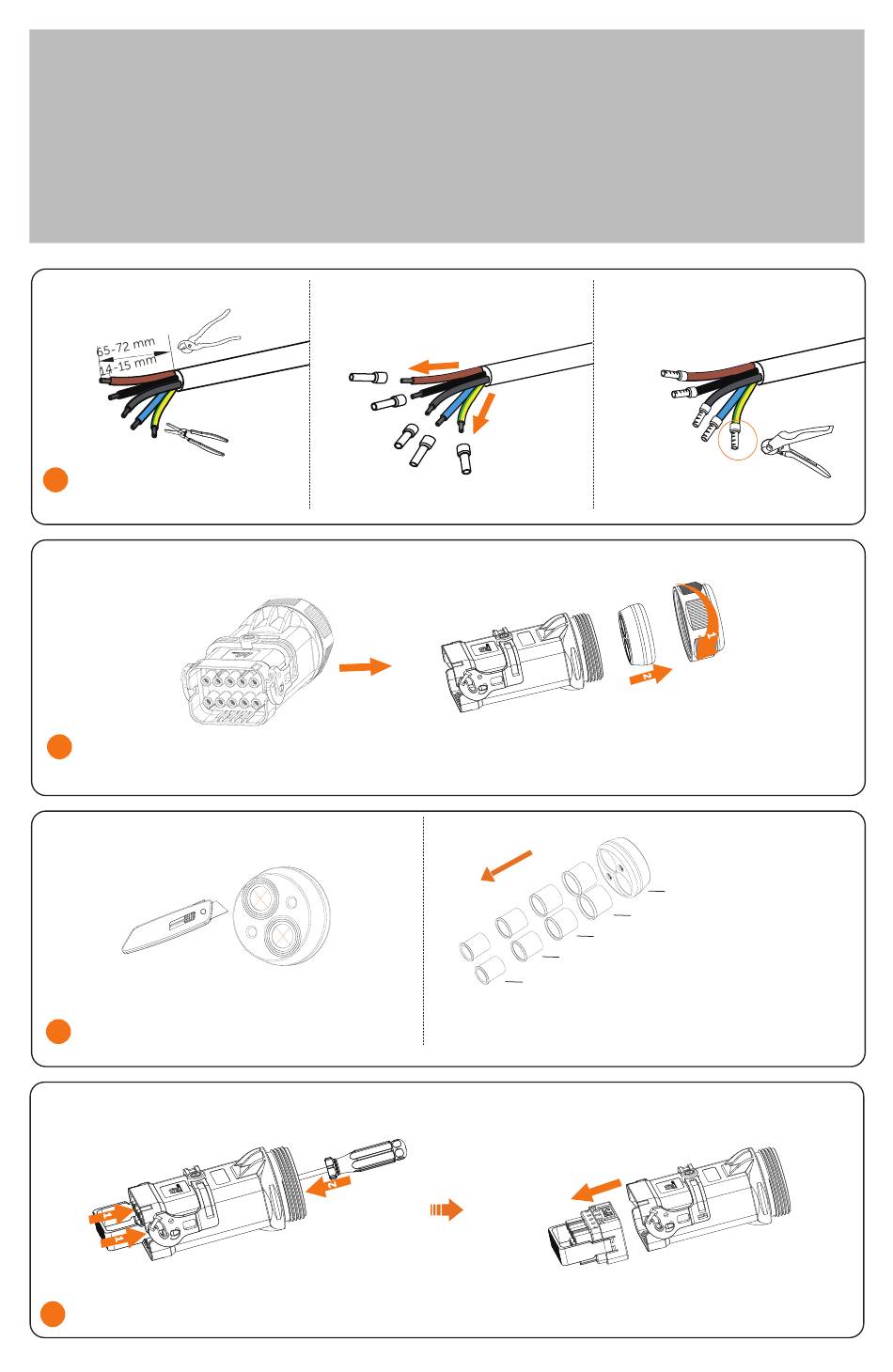

Five-core cable:
1
4/6/8 kW inverters: 4-6 mm
10/12/15 kW inverters: 6 mm
2
Cut as needed. To ensure the sealing of device, do not cut the
other membrance if only one round hole is needed.
Cut the innermost round membrane of the
3
cable support sleeve with a utility knife.
4
Disassemble the rubber core from the AC connector with the disassembly tool and screwdriver.
2
five-core
2
2
AC connector Cable support sleeve
For cable diameter: 15.5 - 19 mm
For cable diameter: 13.5 - 15.5 mm
According to the outside diameter of the cable, take out the
corresponding sealing plug from the cable support sleeve.
Locking nut
For cable diameter: 24.5 - 27 mm
For cable diameter: 21.4 - 24.5 mm
For cable diameter: 19 - 21.5 mm
