3. RS485 connection
The RS485 subport is used by the inverter for communicating with external devices. All
devices supporting the Modbus protocol, for example computer, can establish a connection
with the inverter, further controlling the inverter.

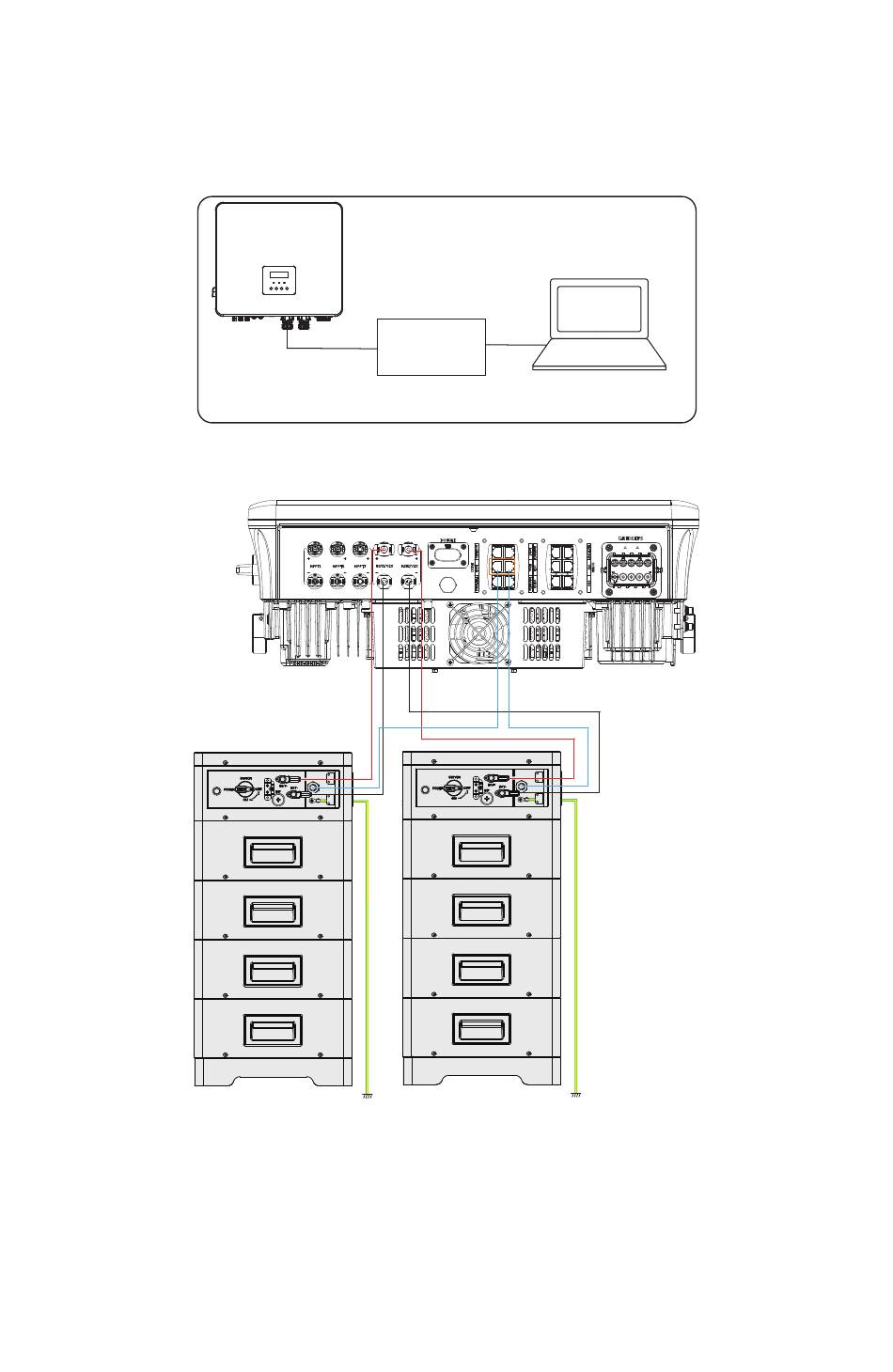

Schematic diagram of wiring of external devices:
4. BMS connection
Schematic diagram of wiring of battery
*
For more details about battery wire connection, please refer the corresponding battery user manual.
RS485-to-USB
converter
Inverter
Computer or other
external devices
71
