SolaX Power X3-HYB-G4 PRO Installationsanleitung Seite 71

Communication Connection / Kommunikations-Anschluss / Branchement
de communication / Conexión de comunicación / Ligação à Comunicação
/ Communicatie-aansluiting / Collegamento comunicazione / Połączenie
komunikacyjne / Komunikační připojení / Kommunikationsanslutning / Conexiune
de comunicare / Комуникационна връзка / Kommunikationsforbindelse / Σύνδεση
επικοινωνίας / Sideühendus / Tiedonsiirtoliitäntä / Priključak za komunikaciju /
Kommunikációs bekötés / Duomenų ryšys / Sakaru savienojums / Pripojenie
komunikácie / Komunikacijska povezava / İletişim Bağlantısı / Conexão de
Comunicação

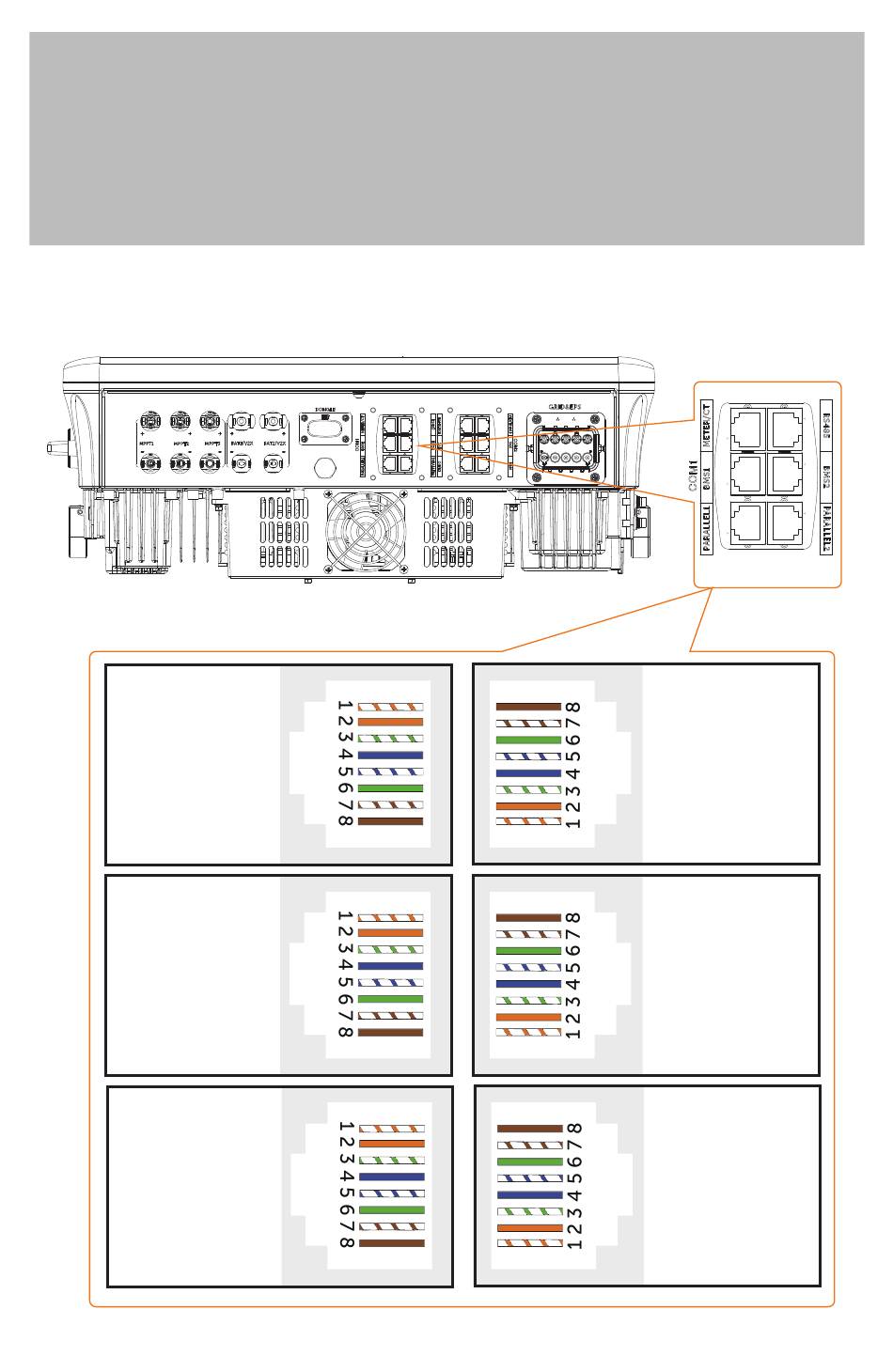

COM 1 Communicaiton Connection
1. Pin assignment of port COM 1
METER/CT
1: CT_R_1
2: CT_S_1
3: CT_T_1
4: METER_485A
5: METER_485B
6: CT_T_2
7: CT_S_2
8: CT_R_2
BMS 1
1: +3.3V_COM
2: GND_COM
3: GND_COM
4: BMS1_CANH_CON
5: BMS1_CANL_CON
6: GND_COM
7: BMS1_485A_CON
8: BMS1_485B_CON
PARA 1
1: PARALLEL_485A_CON
2: PARALLEL_485B_CON
3: EPSBOX_RELAY_VCC
4: PARALLEL_CANH_CON
5: PARALLEL_CANL_CON
6: GND_COM
7: PARALLEL_SYNC1
8: PARALLEL_SYNC2
RS485
1:
2:
3: +12V_COM_EXT
4: REMOTE_485A
5: REMOTE_485B
6:
7: GND_COM
8:
BMS 2
1: +3.3V_COM
2: GND_COM
3: GND_COM
4: BMS2_CANH_CON
5: BMS2_CANL_CON
6: GND_COM
7: BMS2_485A_CON
8: BMS2_485B_CON
PARA 2
1: PARALLEL_485A_CON
2: PARALLEL_485B_CON
3:
4: PARALLEL_CANH_CON
5: PARALLEL_CANL_CON
6: GND_COM
7: PARALLEL_SYNC1
8: PARALLEL_SYNC2
65
