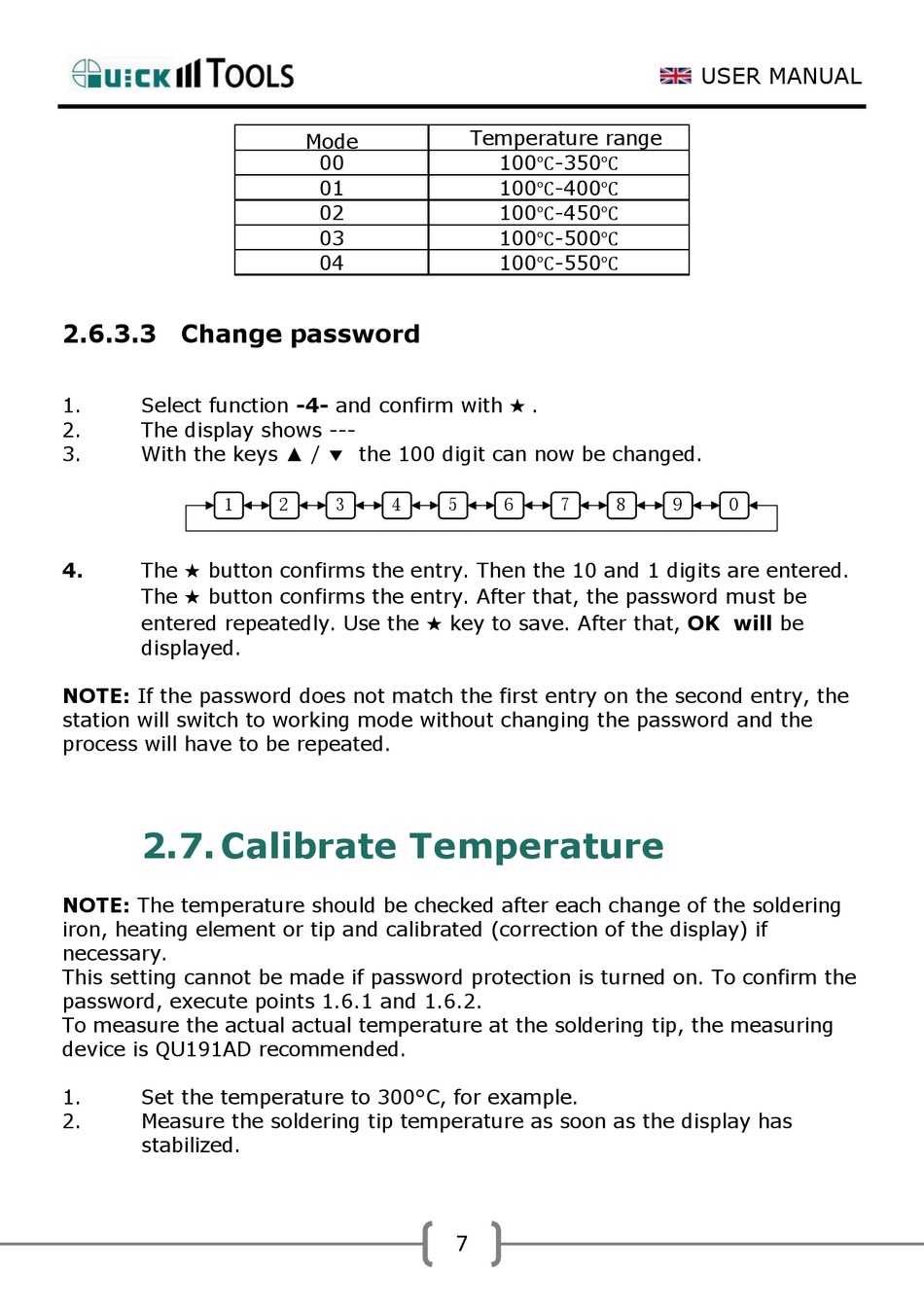

2.6.3.3 Change password

Select function -4- and confirm with ★ .
1.
2. The display shows ---
3. With the keys ▲ /  the 100 digit can now be changed.
The ★ button confirms the entry. Then the 10 and 1 digits are entered.
4.
The ★ button confirms the entry. After that, the password must be
entered repeatedly. Use the ★ key to save. After that, OK will be
displayed.
NOTE: If the password does not match the first entry on the second entry, the
station will switch to working mode without changing the password and the
process will have to be repeated.

2.7. Calibrate Temperature

NOTE: The temperature should be checked after each change of the soldering
iron, heating element or tip and calibrated (correction of the display) if
necessary.
This setting cannot be made if password protection is turned on. To confirm the
password, execute points 1.6.1 and 1.6.2.
To measure the actual actual temperature at the soldering tip, the measuring
device is QU191AD recommended.
1. Set the temperature to 300°C, for example.
2. Measure the soldering tip temperature as soon as the display has
stabilized.
Temperature range
Mode
00
01
02
03
04
7
100℃-350℃
100℃-400℃
100℃-450℃
100℃-500℃
100℃-550℃
