Device description

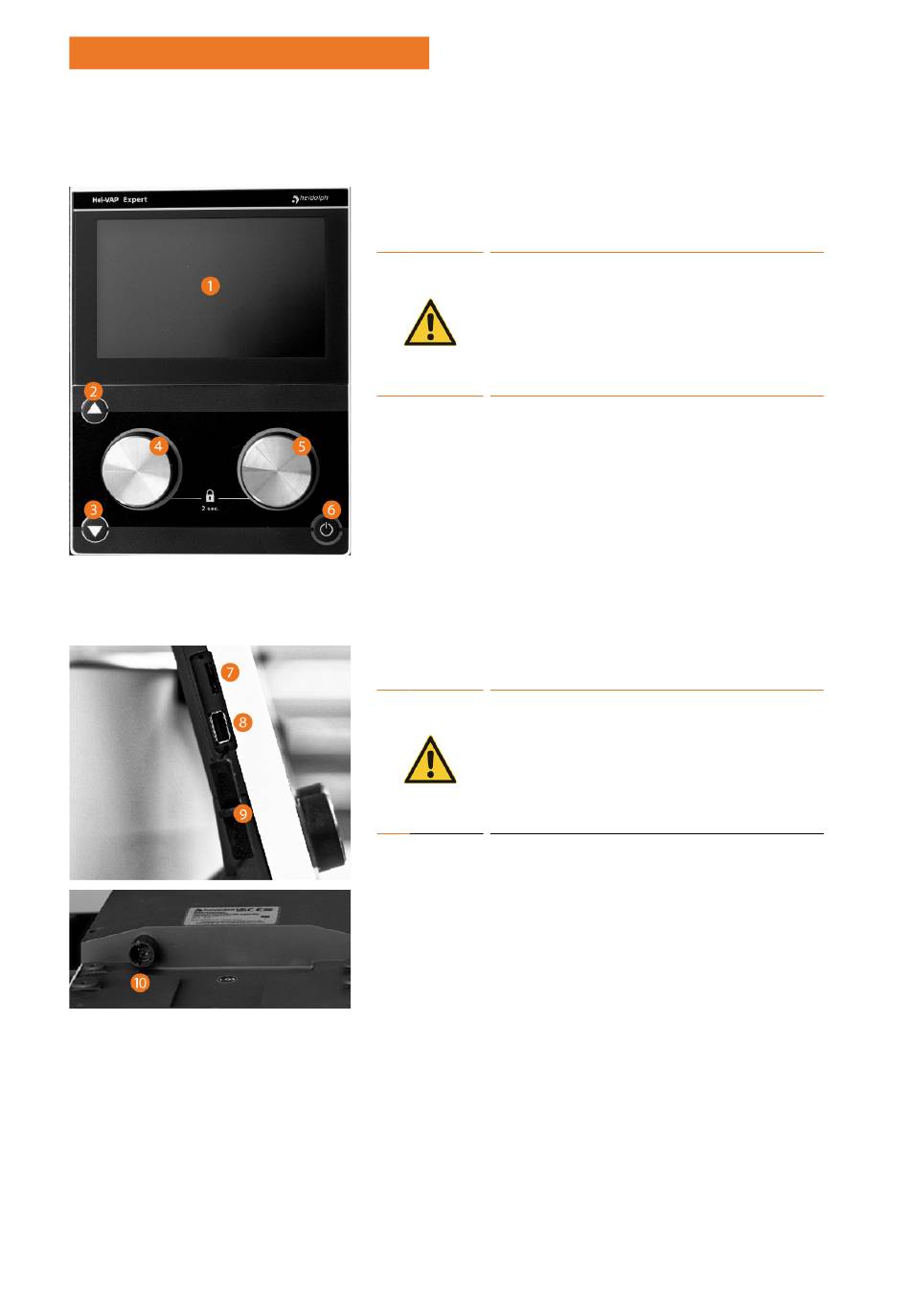

Hei-VAP Expert variant control panel & interfaces
The control elements of the central display are
touch-sensitive (touch panel) and can be operated by
finger or with a suitable stylus.
CAUTION
Pointed or sharp objects can damage the
surface of the display!
To operate the device functions, touch
the display only with your fingertips or a
special stylus with a soft-touch tip.
1
Display
2
Lift button UP (variant with motor-driven lift)
3
Lift button DOWN (variant with motor-driven lift)
4
Speed controller
Heating bath temperature control unit/vacuum pressure
5
regulator
6
Standby button
The device interfaces are located on the side (7 + 8) and
on the rear (10) of the control panel:
CAUTION
Penetrating liquid can cause
malfunctions/short-circuits.
Only open the cap for the side interfaces
if necessary and ensure that it is always
plugged in during normal operation.
7
1× Micro SD (interface for service purposes)
1 × USB 2.0, max. 500 mA (interface for USB flash drives:
8
Software and firmware updates, data backup)
9
Cap
10
Connection socket for rotary evaporator/control panel (4-pin)
COM connection
