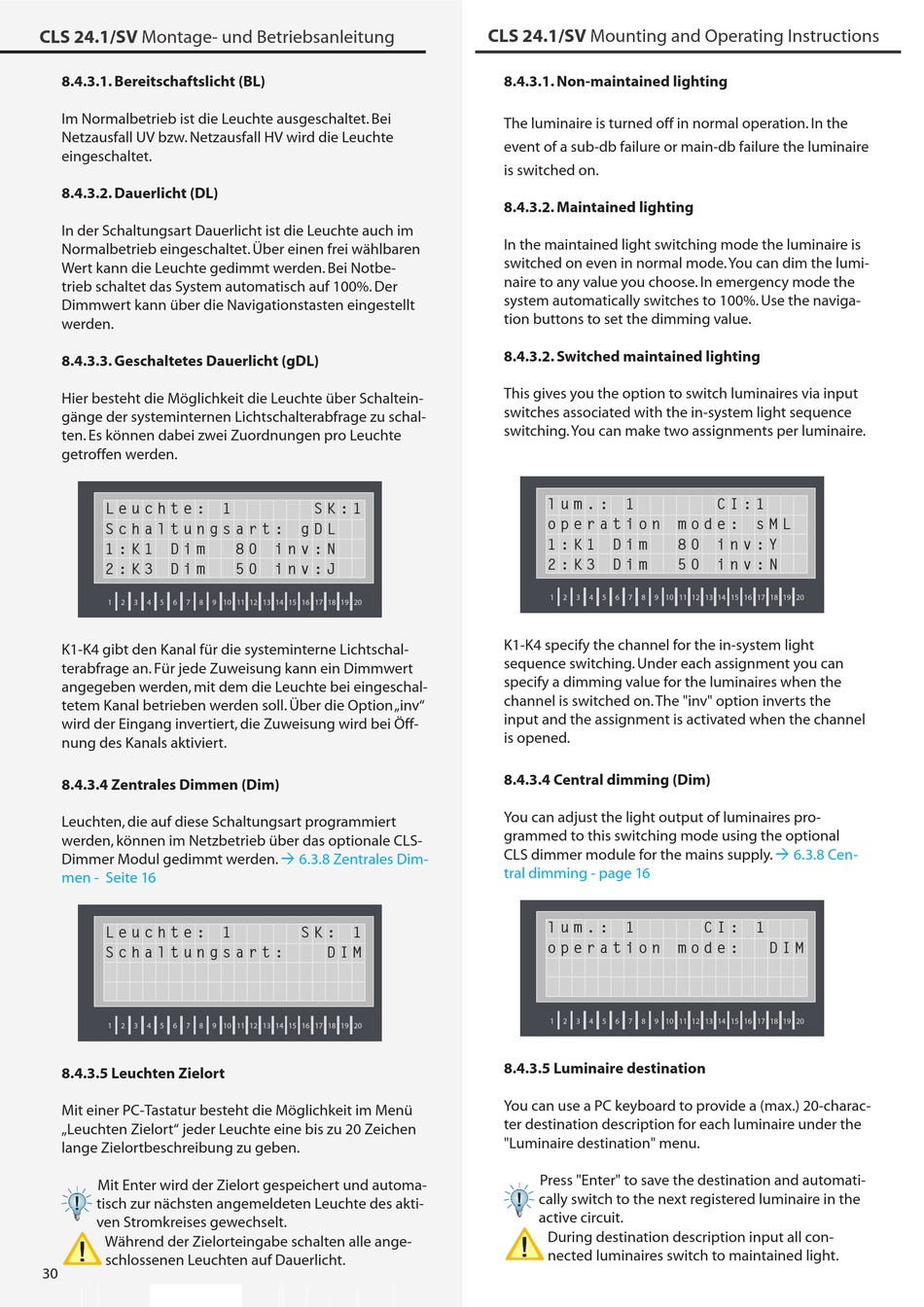

CLS 24.1/SV Montage- und Betriebsanleitung
8.4.3.1. Bereitschaftslicht (BL)
Im Normalbetrieb ist die Leuchte ausgeschaltet. Bei
Netzausfall UV bzw. Netzausfall HV wird die Leuchte
eingeschaltet.
8.4.3.2. Dauerlicht (DL)
In der Schaltungsart Dauerlicht ist die Leuchte auch im
Normalbetrieb eingeschaltet. Über einen frei wählbaren
Wert kann die Leuchte gedimmt werden. Bei Notbe-
trieb schaltet das System automatisch auf 100%. Der
Dimmwert kann über die Navigationstasten eingestellt
werden.
8.4.3.3. Geschaltetes Dauerlicht (gDL)
Hier besteht die Möglichkeit die Leuchte über Schaltein-
gänge der systeminternen Lichtschalterabfrage zu schal-
ten. Es können dabei zwei Zuordnungen pro Leuchte
getroffen werden.
L e u c h t e :
S c h a l t u n g s a r t :
1 : K 1
D i m
2 : K 3
D i m
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20
K1-K4 gibt den Kanal für die systeminterne Lichtschal-
terabfrage an. Für jede Zuweisung kann ein Dimmwert
angegeben werden, mit dem die Leuchte bei eingeschal-
tetem Kanal betrieben werden soll. Über die Option „inv"
wird der Eingang invertiert, die Zuweisung wird bei Öff-
nung des Kanals aktiviert.
8.4.3.4 Zentrales Dimmen (Dim)
Leuchten, die auf diese Schaltungsart programmiert
werden, können im Netzbetrieb über das optionale CLS-
Dimmer Modul gedimmt werden.
men - Seite 16
L e u c h t e :
S c h a l t u n g s a r t :
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20
8.4.3.5 Leuchten Zielort
Mit einer PC-Tastatur besteht die Möglichkeit im Menü
„Leuchten Zielort" jeder Leuchte eine bis zu 20 Zeichen
lange Zielortbeschreibung zu geben.
Mit Enter wird der Zielort gespeichert und automa-
tisch zur nächsten angemeldeten Leuchte des akti-
ven Stromkreises gewechselt.
Während der Zielorteingabe schalten alle ange-
schlossenen Leuchten auf Dauerlicht.
30
1
S K : 1
g D L
8 0
i n v : N
5 0
i n v : J
 6.3.8 Zentrales Dim-
1
S K :
1
D I M
CLS 24.1/SV Mounting and Operating Instructions
8.4.3.1. Non-maintained lighting
The luminaire is turned off in normal operation. In the
event of a sub-db failure or main-db failure the luminaire
is switched on.
8.4.3.2. Maintained lighting
In the maintained light switching mode the luminaire is
switched on even in normal mode. You can dim the lumi-
naire to any value you choose. In emergency mode the
system automatically switches to 100%. Use the naviga-
tion buttons to set the dimming value.
8.4.3.2. Switched maintained lighting
This gives you the option to switch luminaires via input
switches associated with the in-system light sequence
switching. You can make two assignments per luminaire.
l u m . :
1
o p e r a t i o n
1 : K 1
D i m
2 : K 3
D i m
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20
K1-K4 specify the channel for the in-system light
sequence switching. Under each assignment you can
specify a dimming value for the luminaires when the
channel is switched on. The "inv" option inverts the
input and the assignment is activated when the channel
is opened.
8.4.3.4 Central dimming (Dim)
You can adjust the light output of luminaires pro-
grammed to this switching mode using the optional
CLS dimmer module for the mains supply.
tral dimming - page 16
l u m . :
1
o p e r a t i o n
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20
8.4.3.5 Luminaire destination
You can use a PC keyboard to provide a (max.) 20-charac-
ter destination description for each luminaire under the
"Luminaire destination" menu.
Press "Enter" to save the destination and automati-
cally switch to the next registered luminaire in the
active circuit.
During destination description input all con-
nected luminaires switch to maintained light.
C I : 1
m o d e :
s M L
8 0
i n v : Y
5 0
i n v : N
 6.3.8 Cen-
C I :
1
m o d e :
D I M
