CLS 24.1/SV Montage- und Betriebsanleitung

5.2 CLS 24.1

Anschlussspannung:
Klemmenzuleitung:
Netzeingangssicherung: 5AT, AV=1500A
Ausgangsspannung:
Klemmenabgänge:
Zul. Umgebungstemp.:
Schutzklasse:
Schutzart:
Endstromkreise:
Max. Belastung:
Absicherung:
Geräuschpegel:
Abmessungen:
Gewicht:
Batterie:
Batteriestrom:
12 Ah
Maßbild:
190
253
230V AC +/- 10%
4 mm²
24V DC +/- 20%
4 mm²
-5°C bis +25°C
I
IP 20
4 Stück
3A je Endstromkreis
5AT, AV=50A
ca. 40 dB
optional 0 dB
12 Ah-Anlage
24 Ah-Anlage
470 x 253 x 120
630 x 253 x 120
15 kg
25,7 kg
24V / 12Ah
24V / 24Ah
1h: 6,6A
1h: 6,6A
3h: 2,9A
3h: 5,8A
8h: 1,3A
8h: 2,6A
116,5
CLS 24.1/SV Mounting and Operating Instructions
5.2 CLS 24.1
Connection voltage:
Terminal mains supply: 4 mm²
Mains fuse:
Output voltage:
Terminal outgoing
circuits:
Amb. temp. range:
Protection class:
Protection category:
Final circuits:
Max. load:
Outgoing fuse:
Noise level:
Dimensions:
Weight:
Battery:
Battery power:
24 Ah

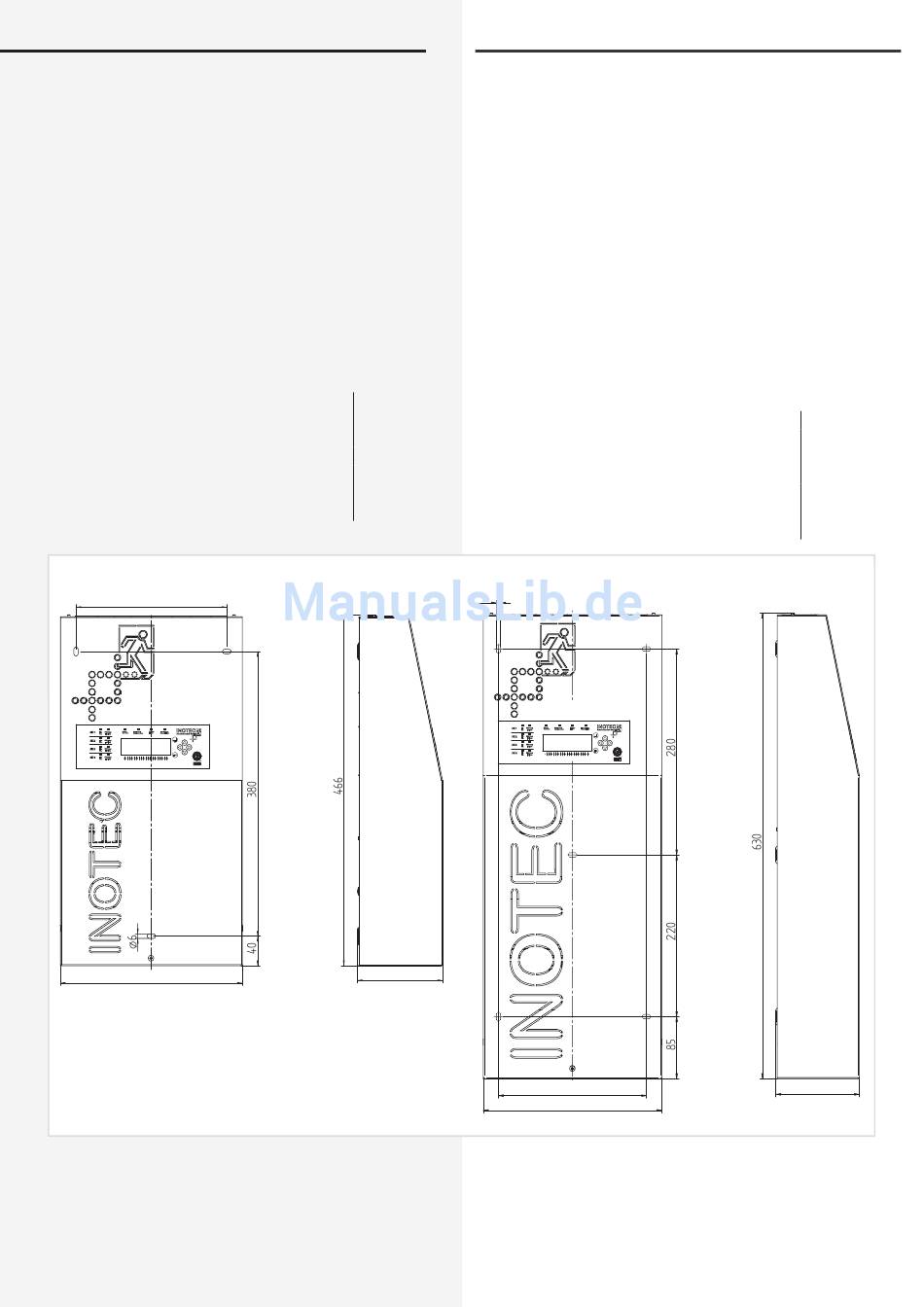

Dimensioned drawing:
6 ø
190
253
230V AC +/- 10%
5AT, AV=1500A
24V DC +/- 20%
4 mm²
-5°C to +25°C
I
IP 20
x 4
3A per final circuit
5AT, AV=50A
approx. 40 dB
optional 0 dB
12 Ah system
24 Ah system
470 x 253 x 120
630 x 253 x 120
15 kg
25.7 kg
24V / 12Ah
24V / 24Ah
1h: 6.6A
1h: 6.6A
3h: 2.9A
3h: 5.8A
8h: 1.3A
8h: 2.6A
116,5
11
