5.2. Ethernet settings of the EOC master (NMU)
The EOC master consists of two parts.
•
The Ethernet section, the so-called Network Management Unit (NMU), which is used to connect the
master to an Internet router and configure it.
•
The Ethernet-over-Coax section, which modulates Ethernet data into RF or demodulates it from RF.
This chapter describes the Network Management Unit (NMU).
5.2.1. Information

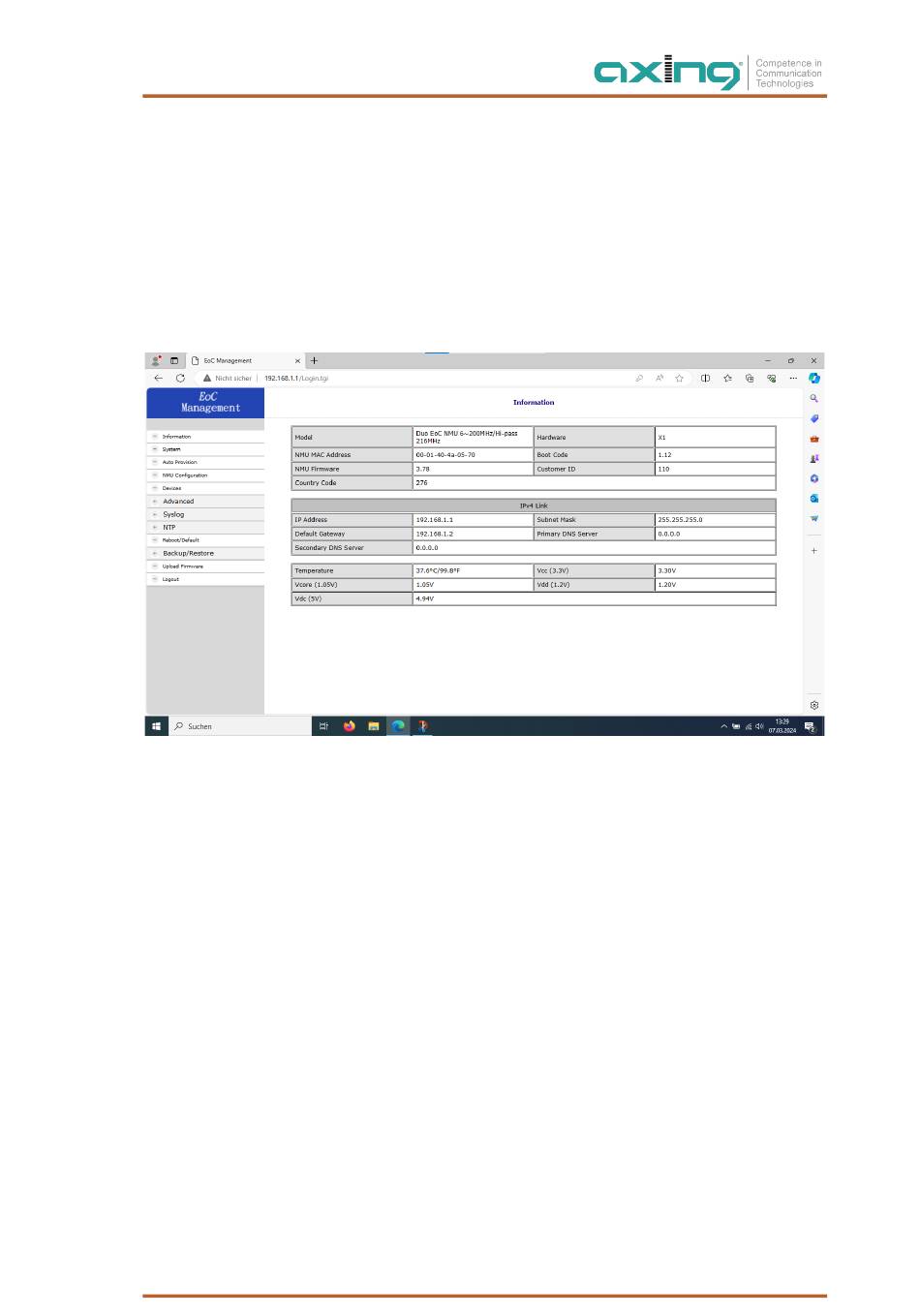

The Information menu item displays information about the system, the IP address data, the temperature and
some internal voltage values.
