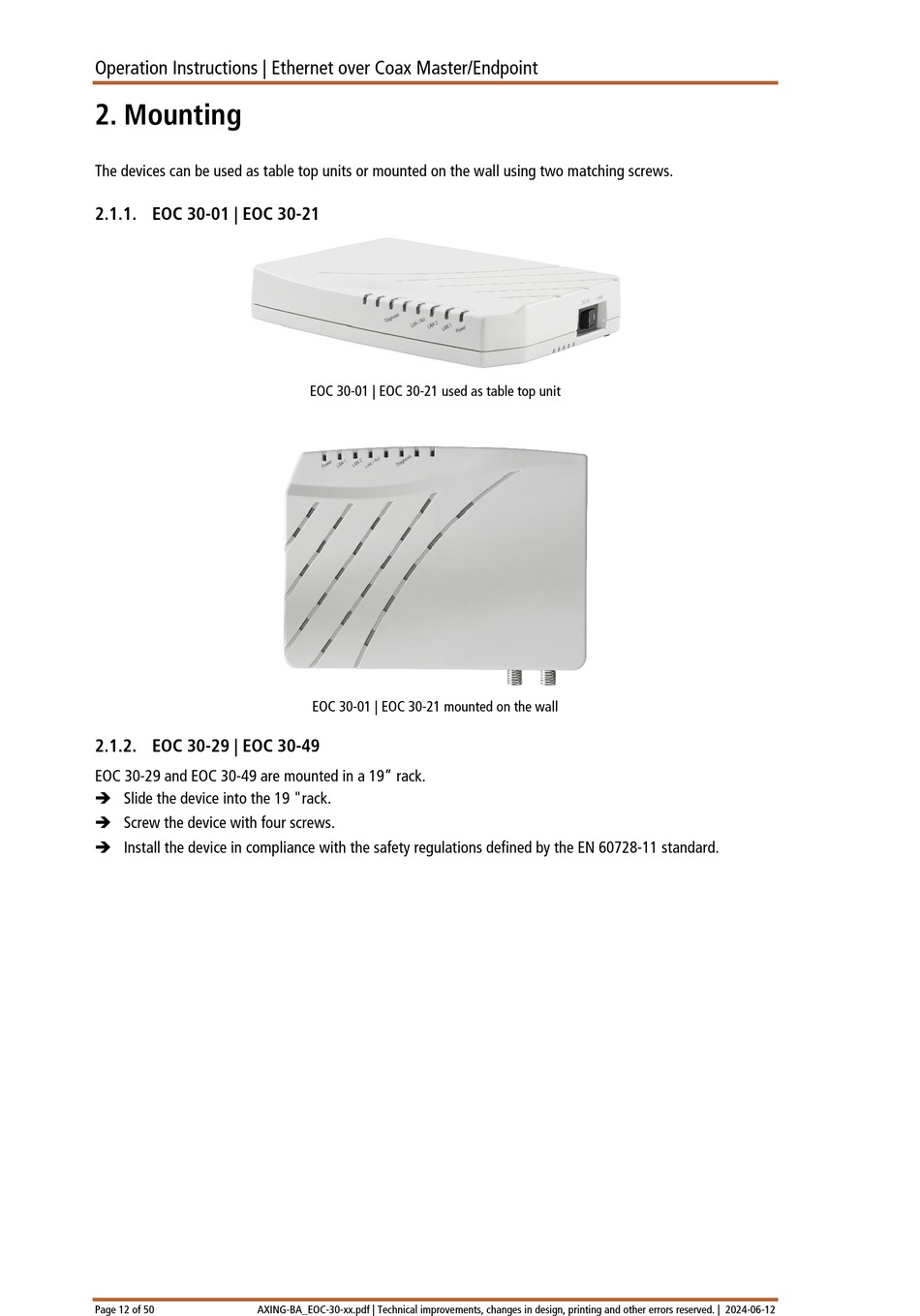

Operation Instructions | Ethernet over Coax Master/Endpoint
2. Mounting
The devices can be used as table top units or mounted on the wall using two matching screws.
2.1.1. EOC 30-01 | EOC 30-21
EOC 30-01 | EOC 30-21 used as table top unit
EOC 30-01 | EOC 30-21 mounted on the wall
2.1.2. EOC 30-29 | EOC 30-49
EOC 30-29 and EOC 30-49 are mounted in a 19" rack.
 Slide the device into the 19 "rack.
 Screw the device with four screws.
 Install the device in compliance with the safety regulations defined by the EN 60728-11 standard.
